Product Description

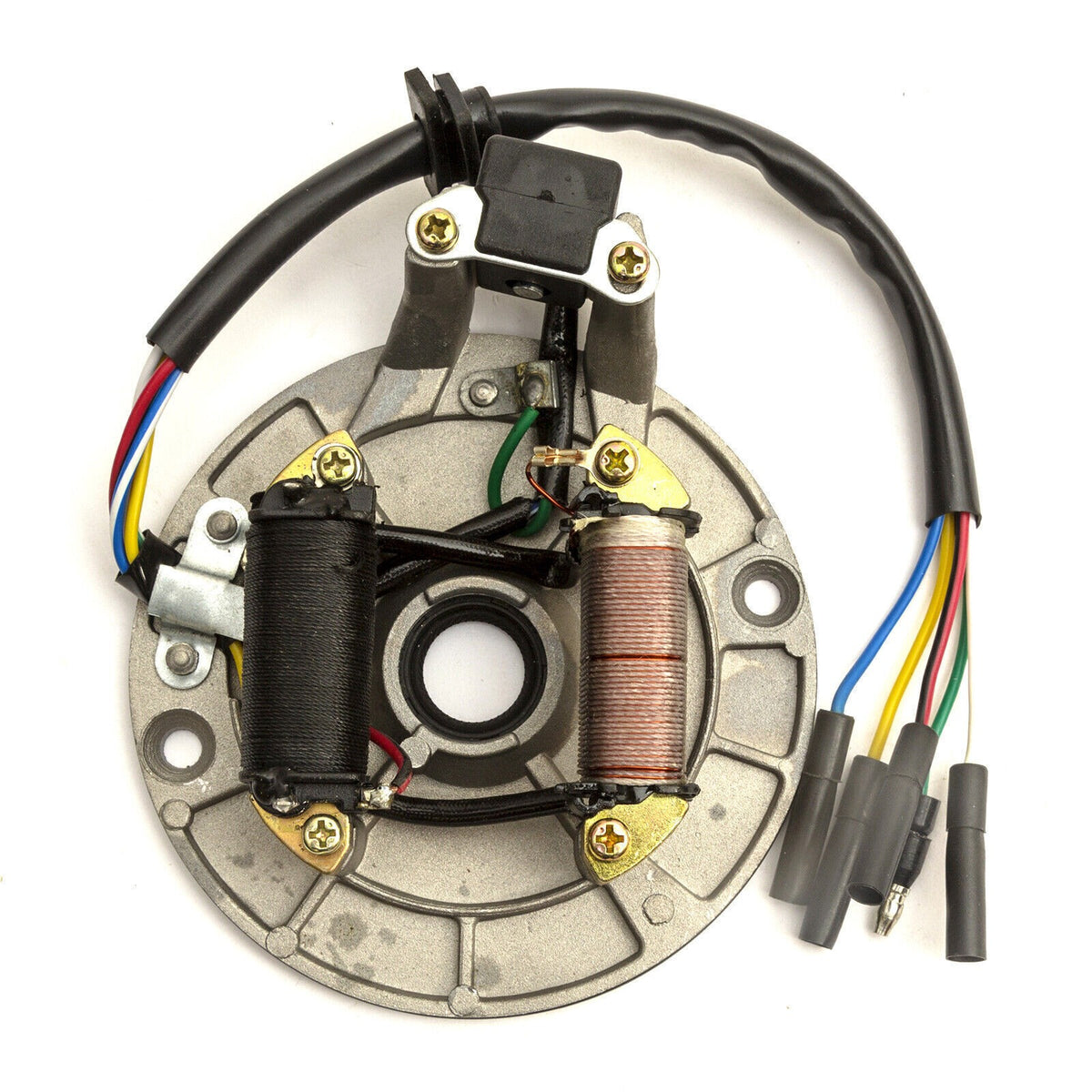

Stator:
Greatest Outer Diameter of Stator Plate (Including Pickup): 137.17 mm / 5.4 inches
Diameter of Central Hole: 17.60 mm / 0.69 inches
Outer Diameter: 115.38 mm / 4.54 inches
Diameter of Fixing Hole(s): 6 mm / 0.24 inches
Distance Between Fixing Holes (Centre of Eye to Centre of Eye): 100.78 mm / 3.97 inches
Greatest Height: 48.44 mm / 1.91 inches
Wiring Length (approx.): 280 mm / 11.02 inches
Number of Bullet Connectors: 5
Number of Fixing Holes: 2
Includes Pick-Up?: Yes
Number of Coils: 2
Inner Diameter (smallest): 17.75 mm / 0.7 inches
Plate Thickness (around outside rim): 6.53 mm / 0.26 inches
Greatest Outer Diameter of Stator (Excluding Pickup): 134.31 mm / 5.29 inches
Diameter of Central Hole (Greatest): 24.64 mm / 0.97 inches

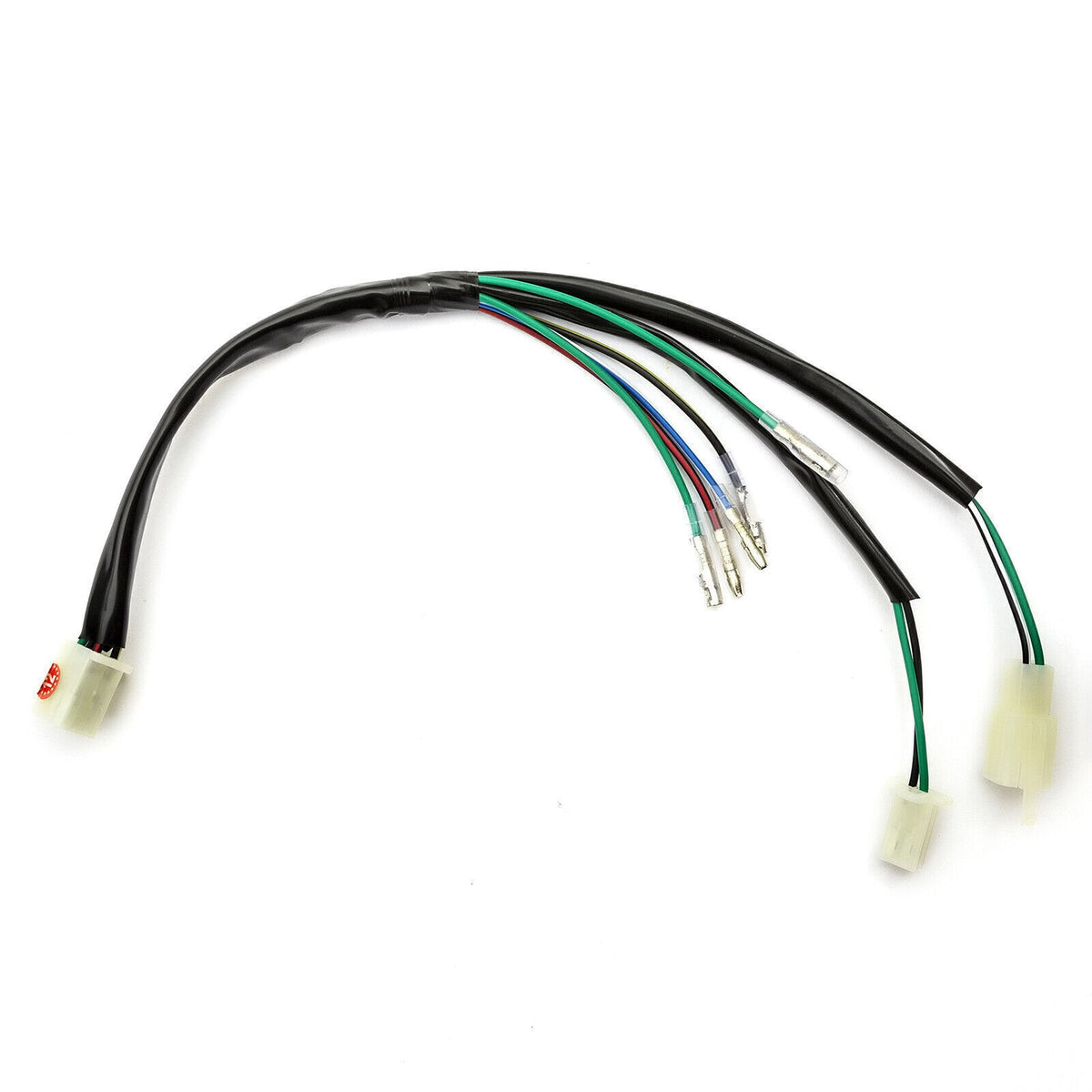

Wiring Loom:
Number of Block Connectors: 3
Number of Spade Connectors: 0
Number of Bullet Connectors: 5
Number of Circle Connectors: 0
Includes In-Line Fuse?: No
Overall Length: 380 mm / 14.96 inches
Road Legal?: No

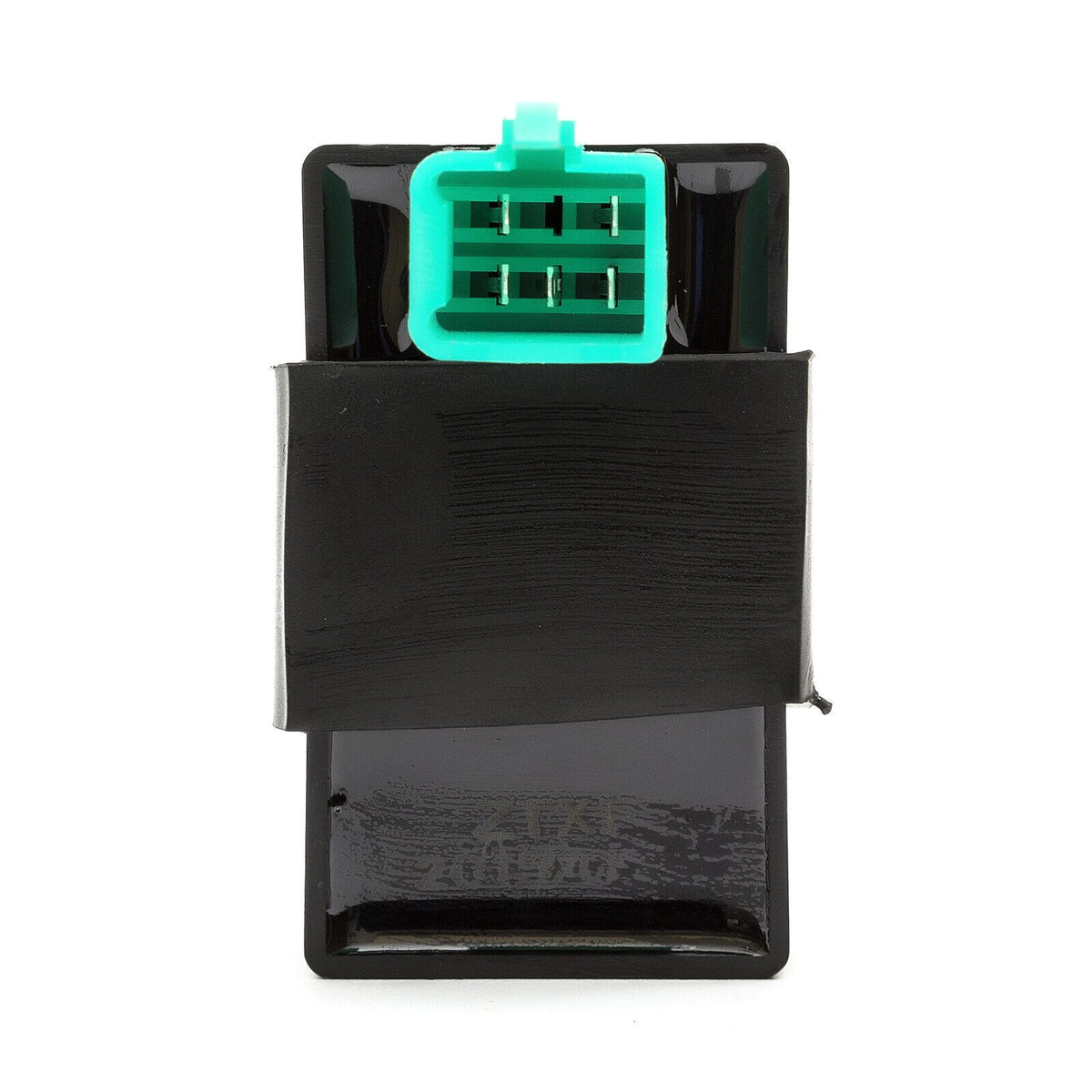

CDI:
Width: 33 mm / 1.3 inches
Length: 60.9 mm / 2.4 inches
Height: 22 mm / 0.87 inches
Total Height (Including Terminals): 52.35 mm / 2.06 inches
Number of Pins: 5

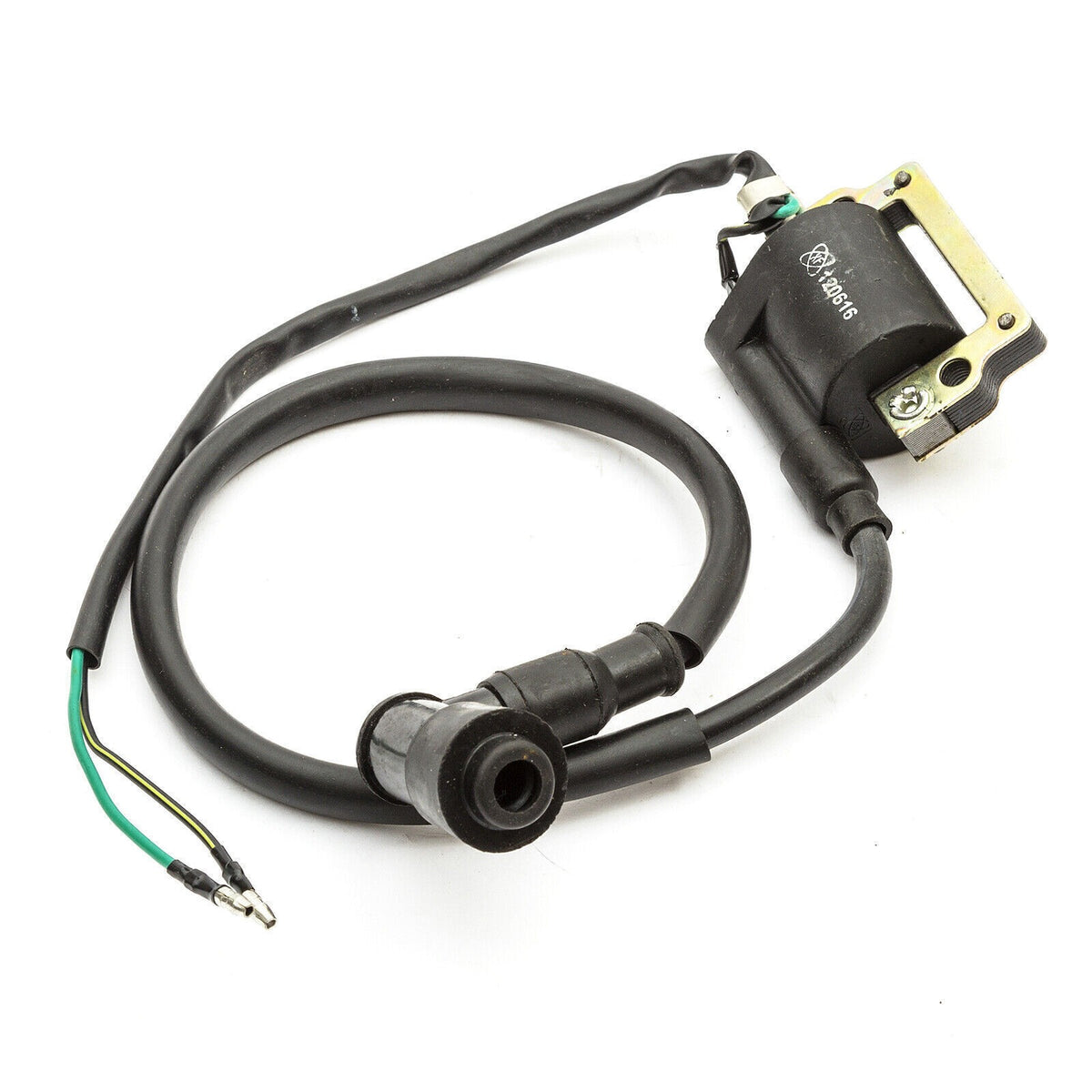

Ignition Coil:
Overall Length of HT Lead: 880 mm / 34.65 inches
Diameter of Fixing Hole(s): 6.5 mm / 0.26 inches
Distance Between Fixing Holes (Centre of Eye to Centre of Eye): 54 mm / 2.13 inches

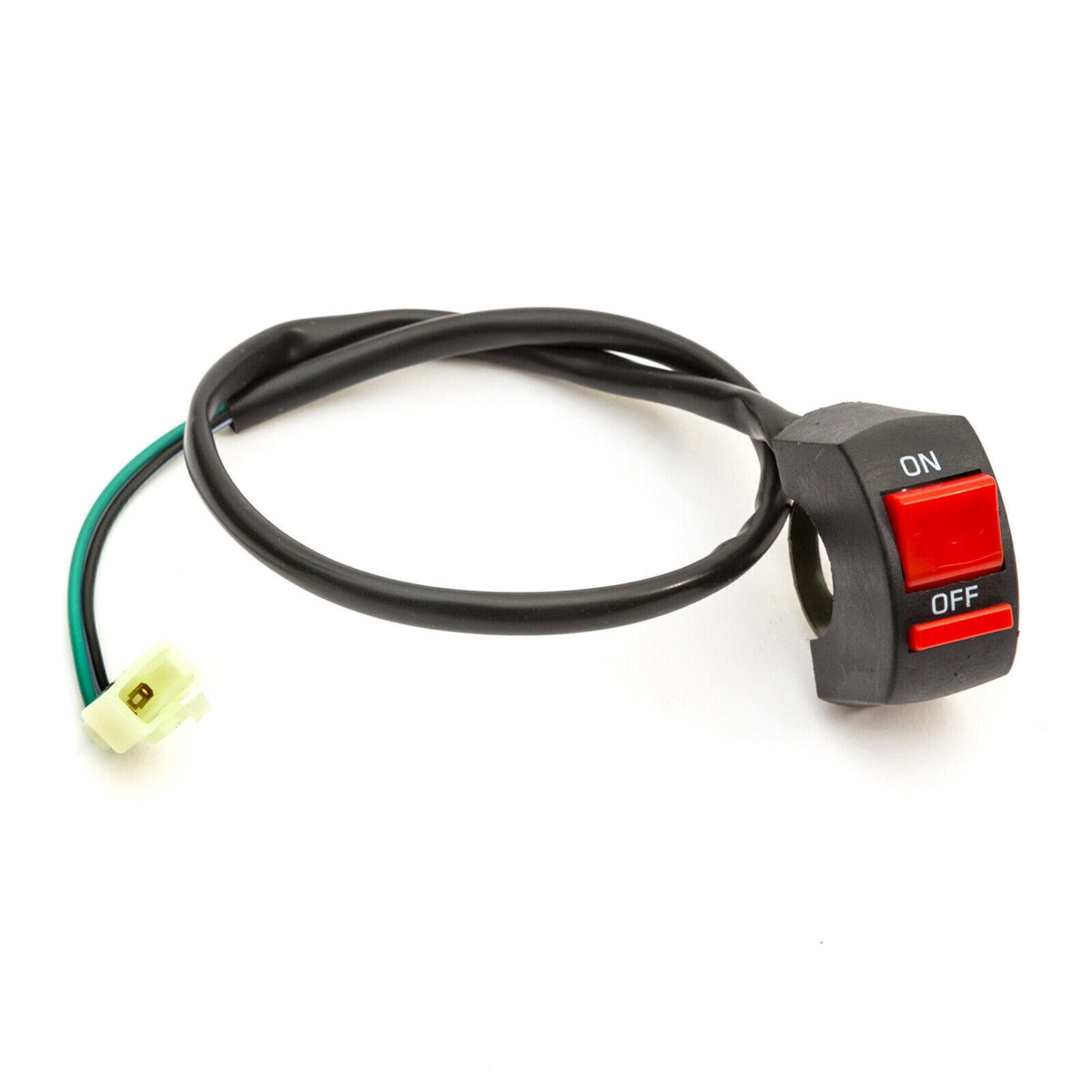

Kill Switch:
Handlebar Size: 22 mm / 7/8 Inch
Number of Pins: 2 Pin

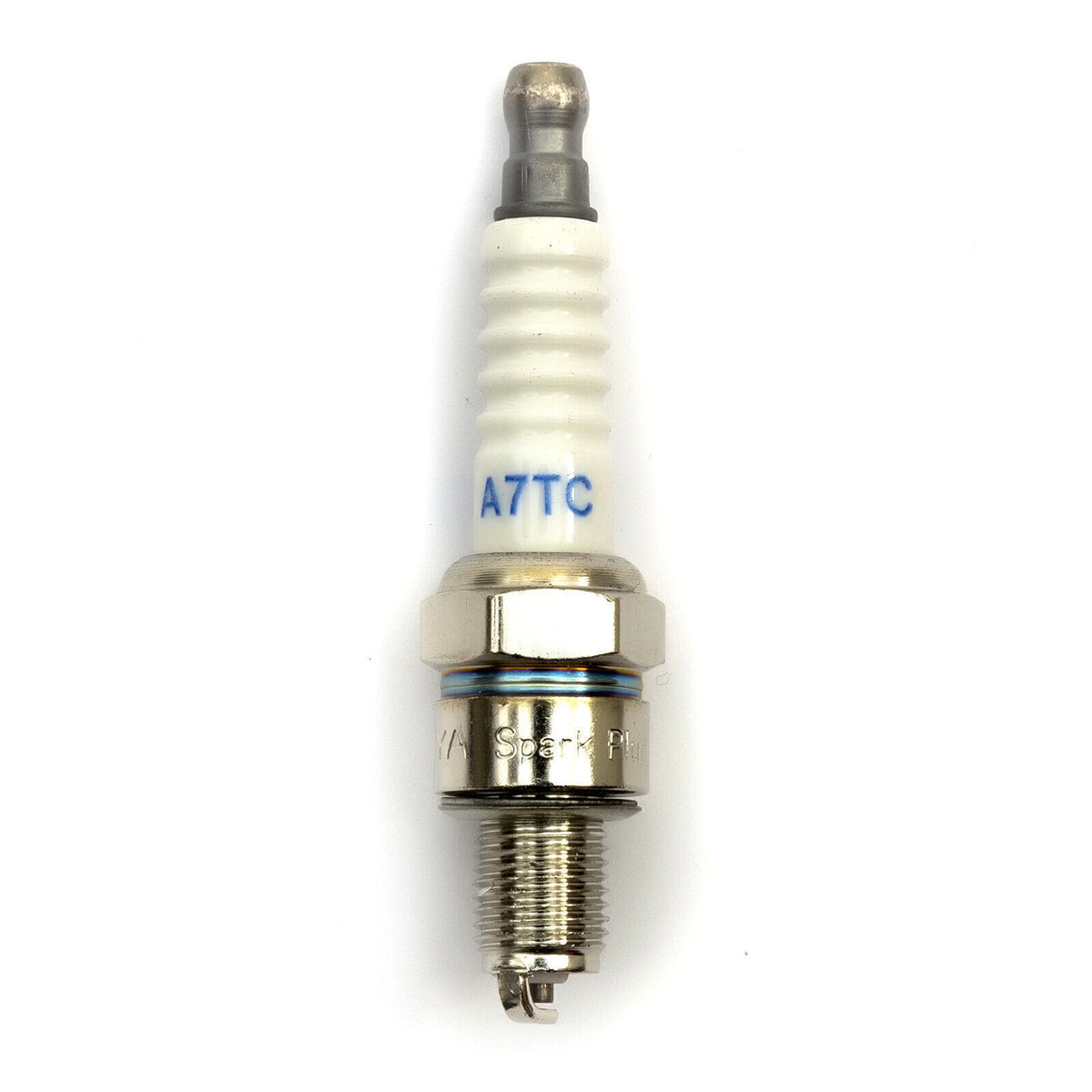

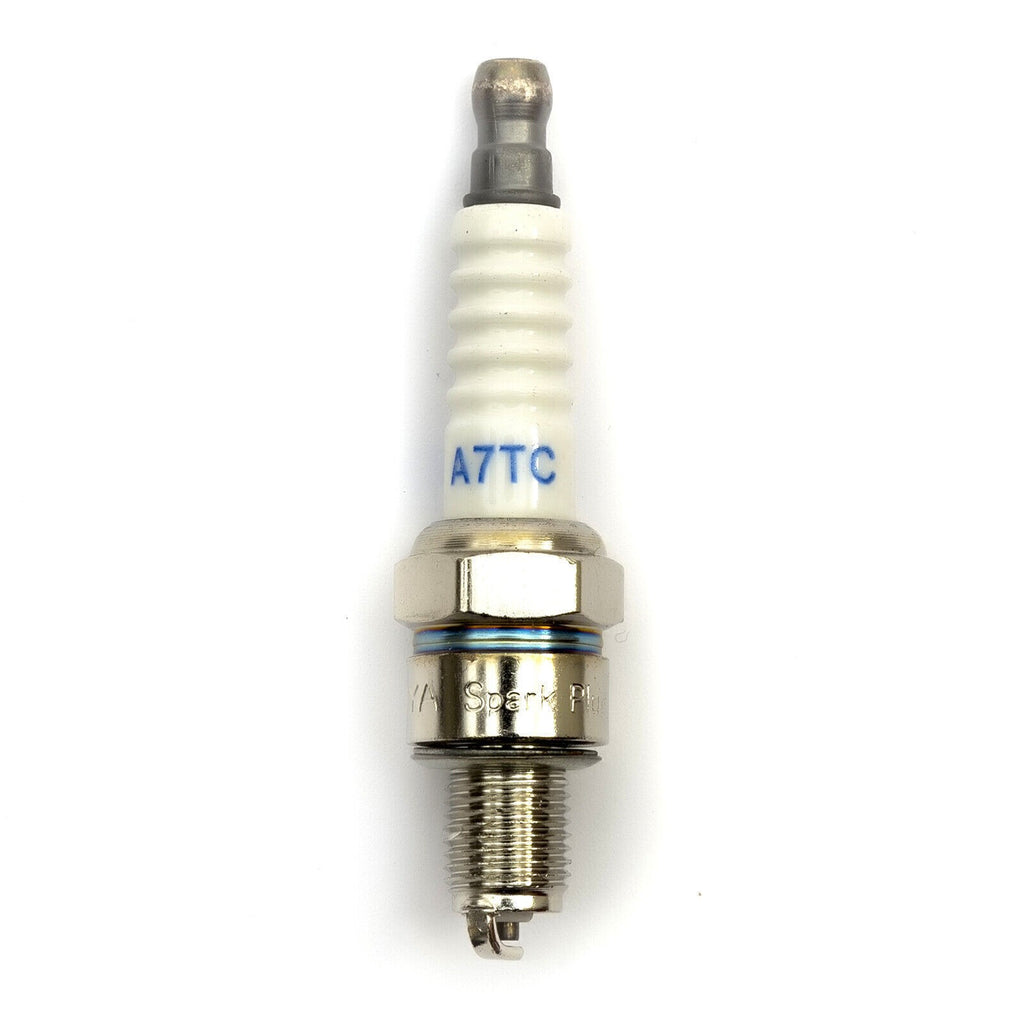

Spark Plug:
Spark Plug Code: A7TC
Overall Length: 69 mm / 2.72 inches
Thread Diameter: 9.80 mm / 0.39 inches
Thread Length: 9.50 mm / 0.37 inches
Greatest Width: 15.78 mm / 0.62 inches

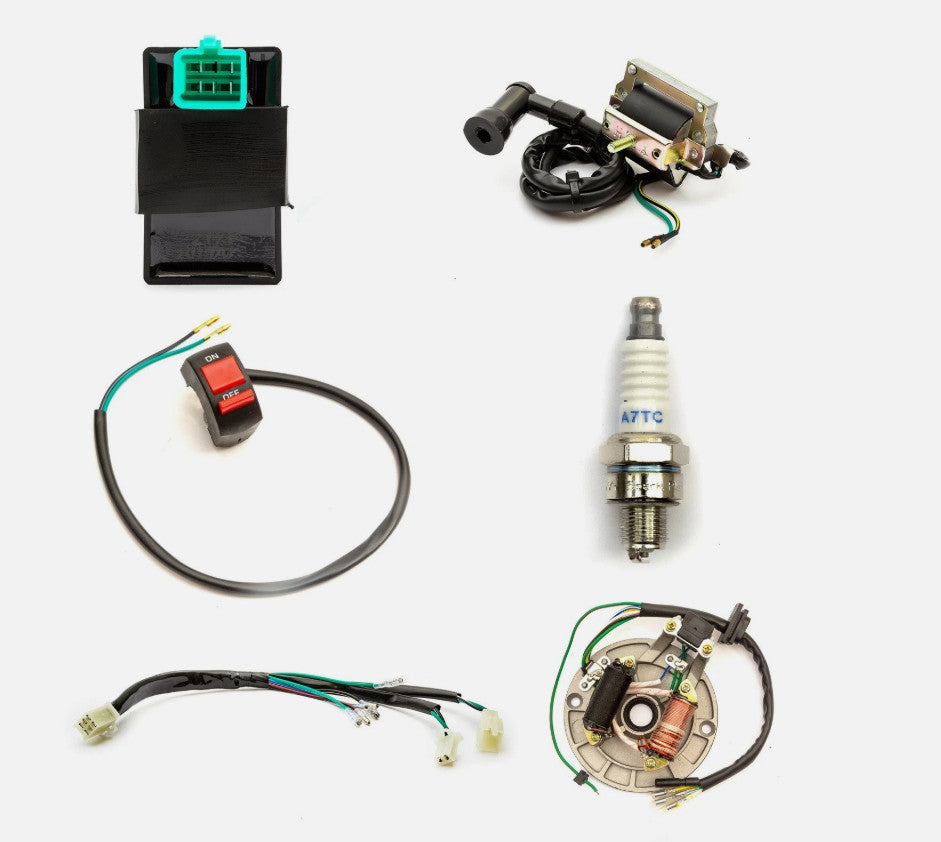

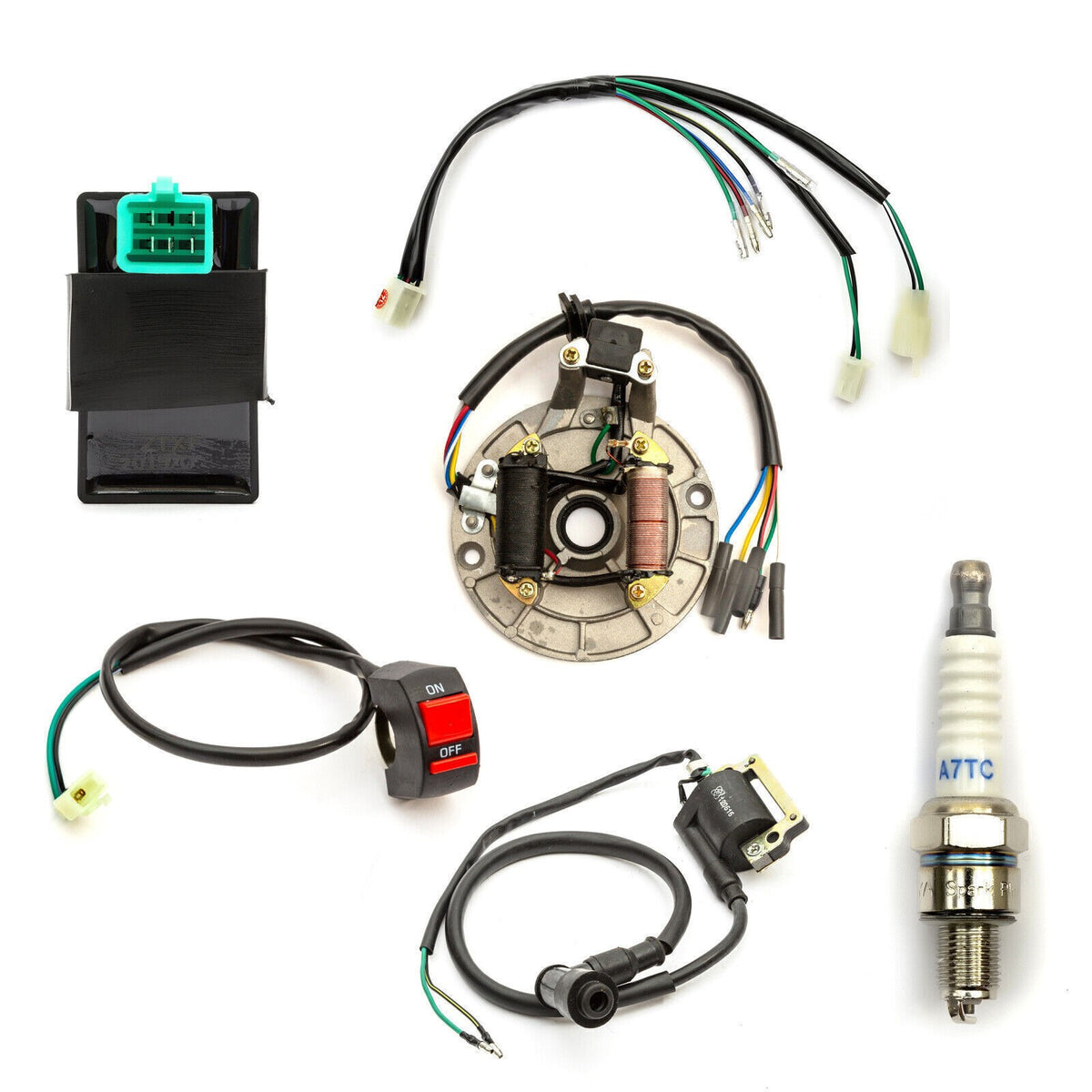

Packing list:
Stator ×1
Wiring Loom ×1
CDI ×1
Ignition Coil ×1
Kill Switch ×1
Spark Plug ×1
