Features:

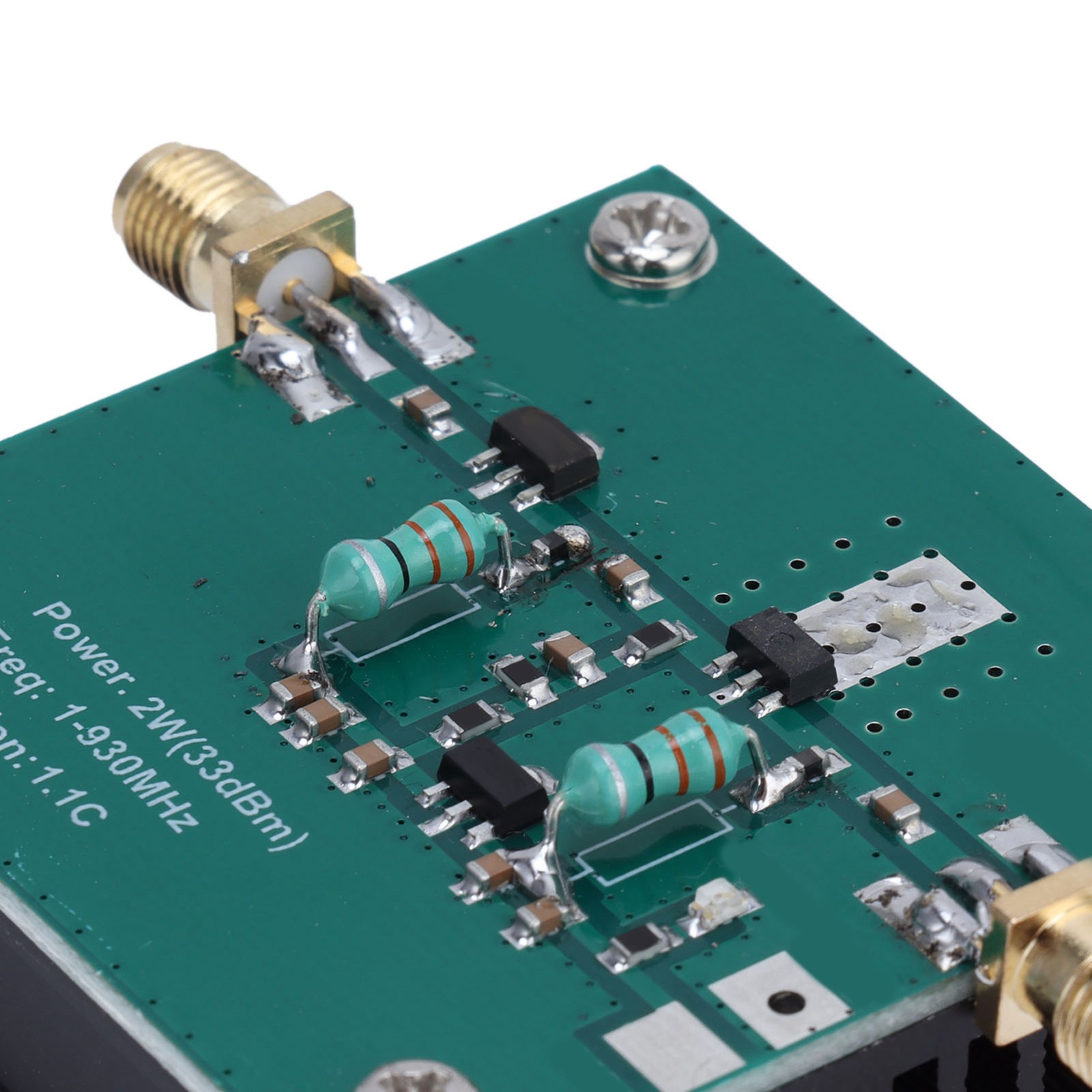

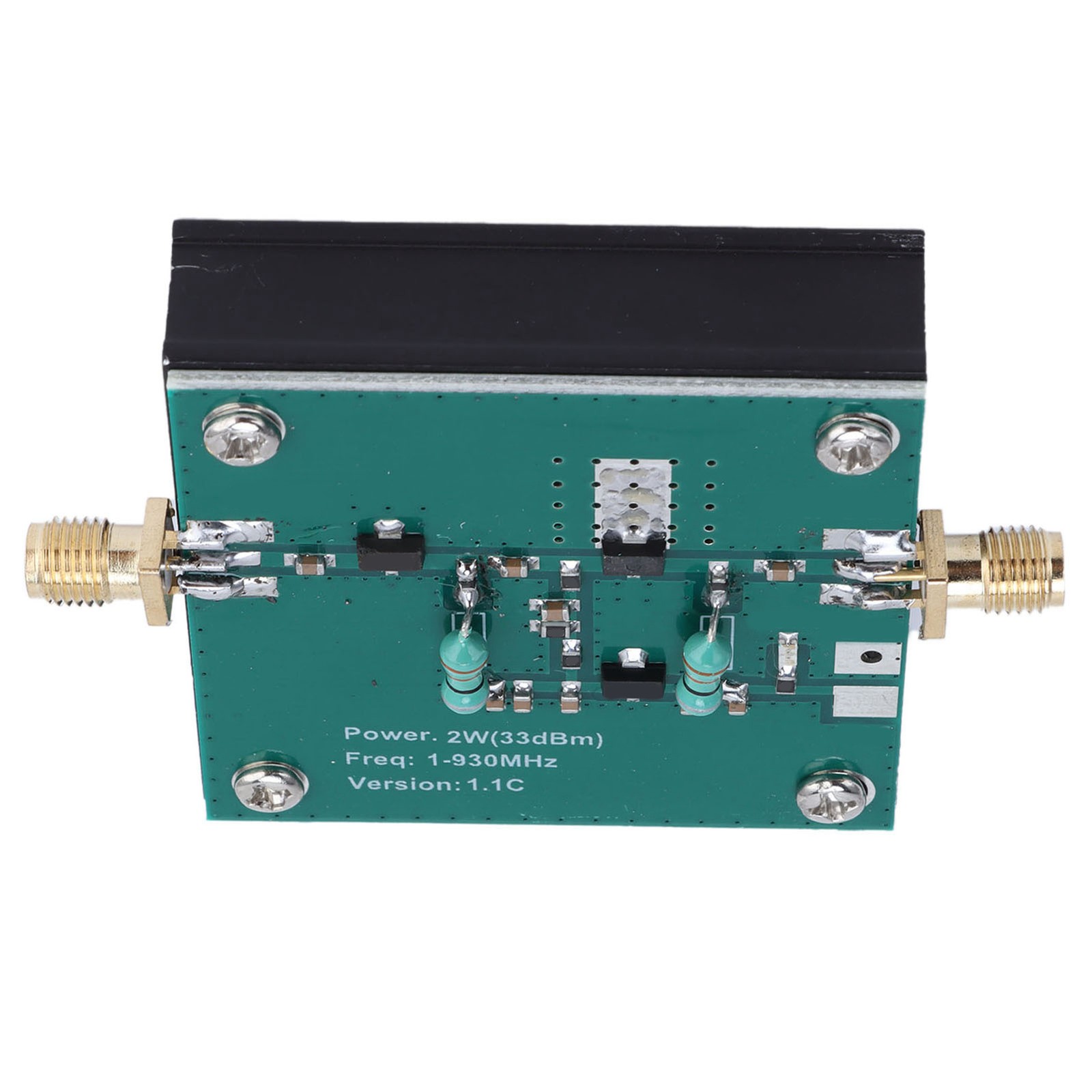

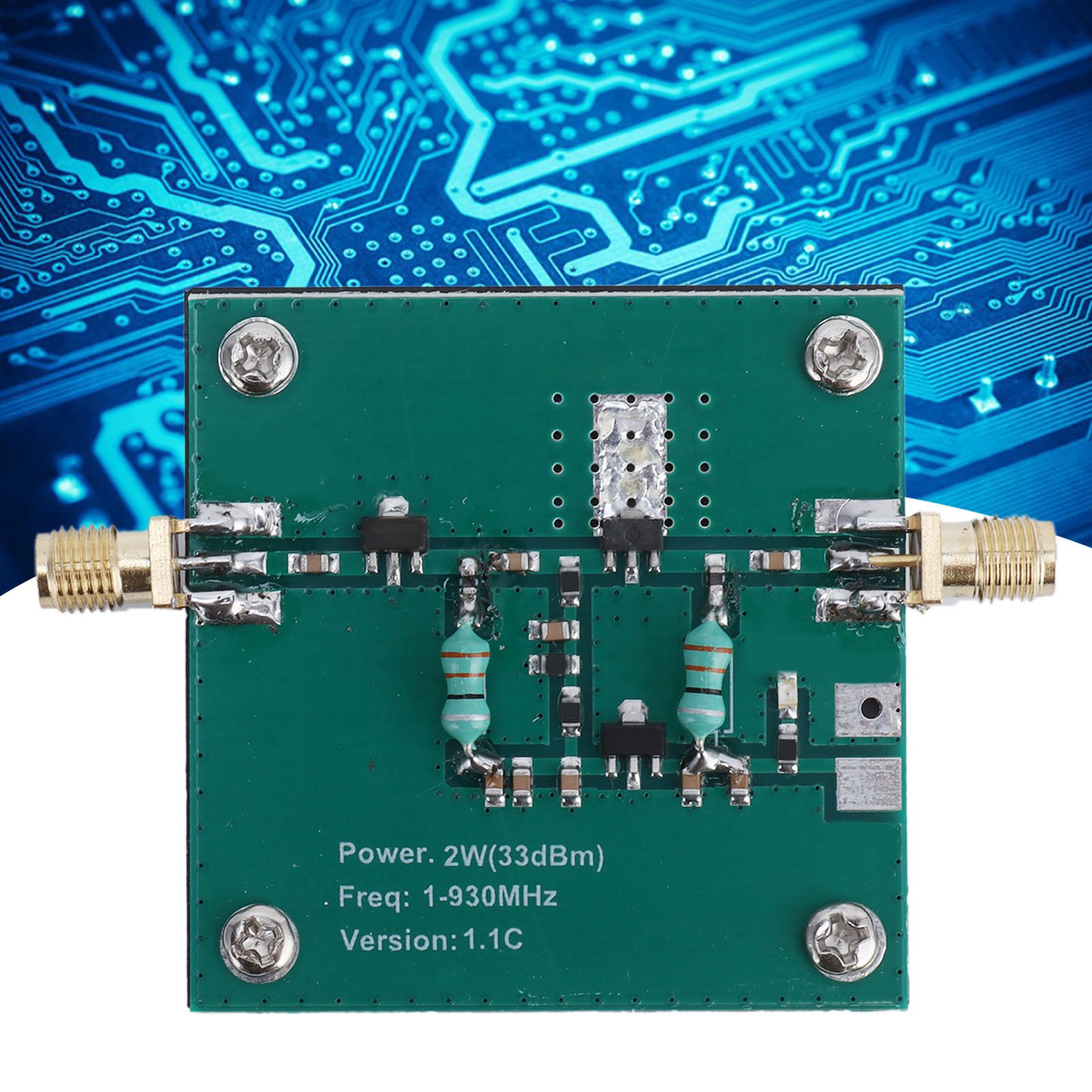

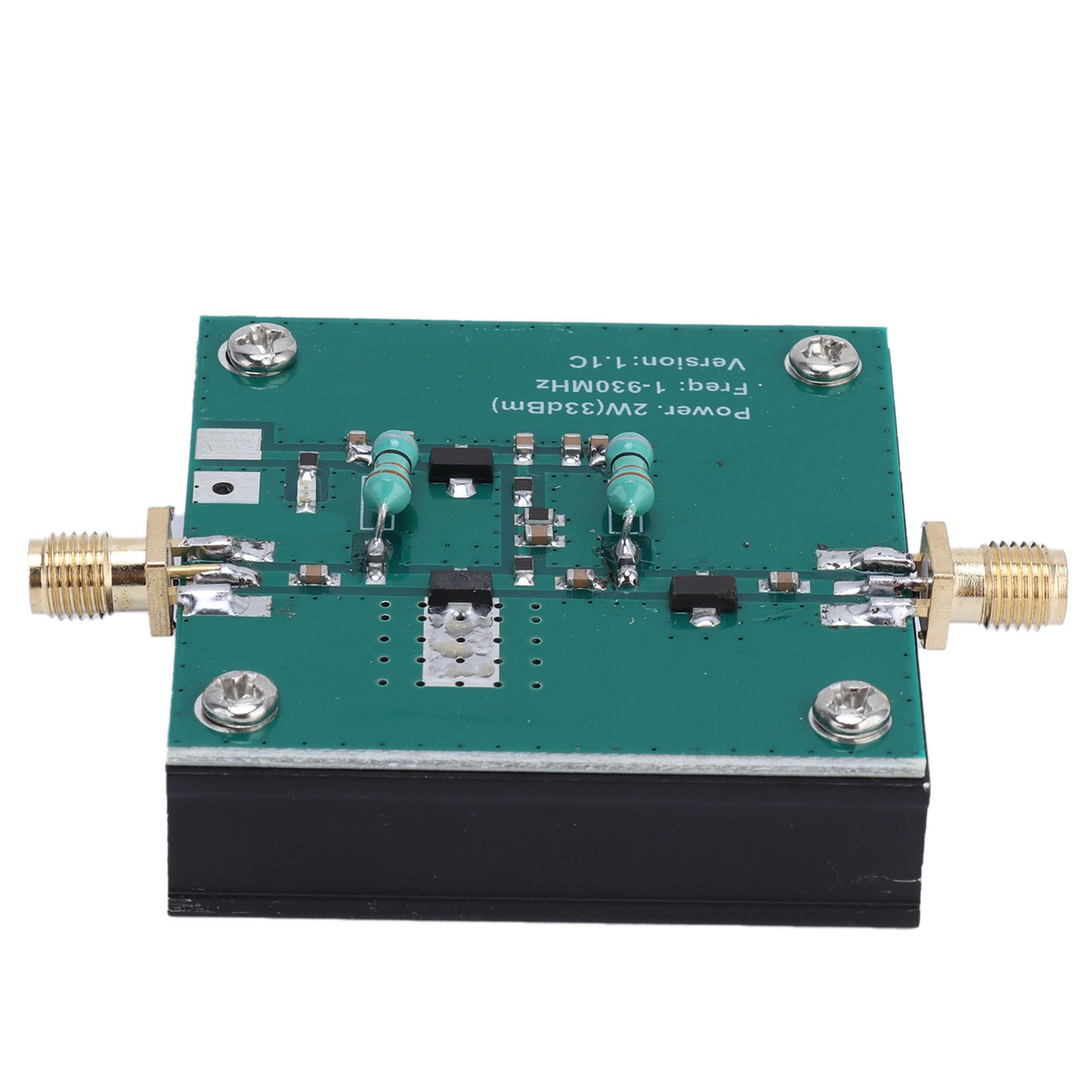

1. This is a broadband RF (Radio Frequency) low-power amplifier with an operating frequency range of 1 to 930 MHz.

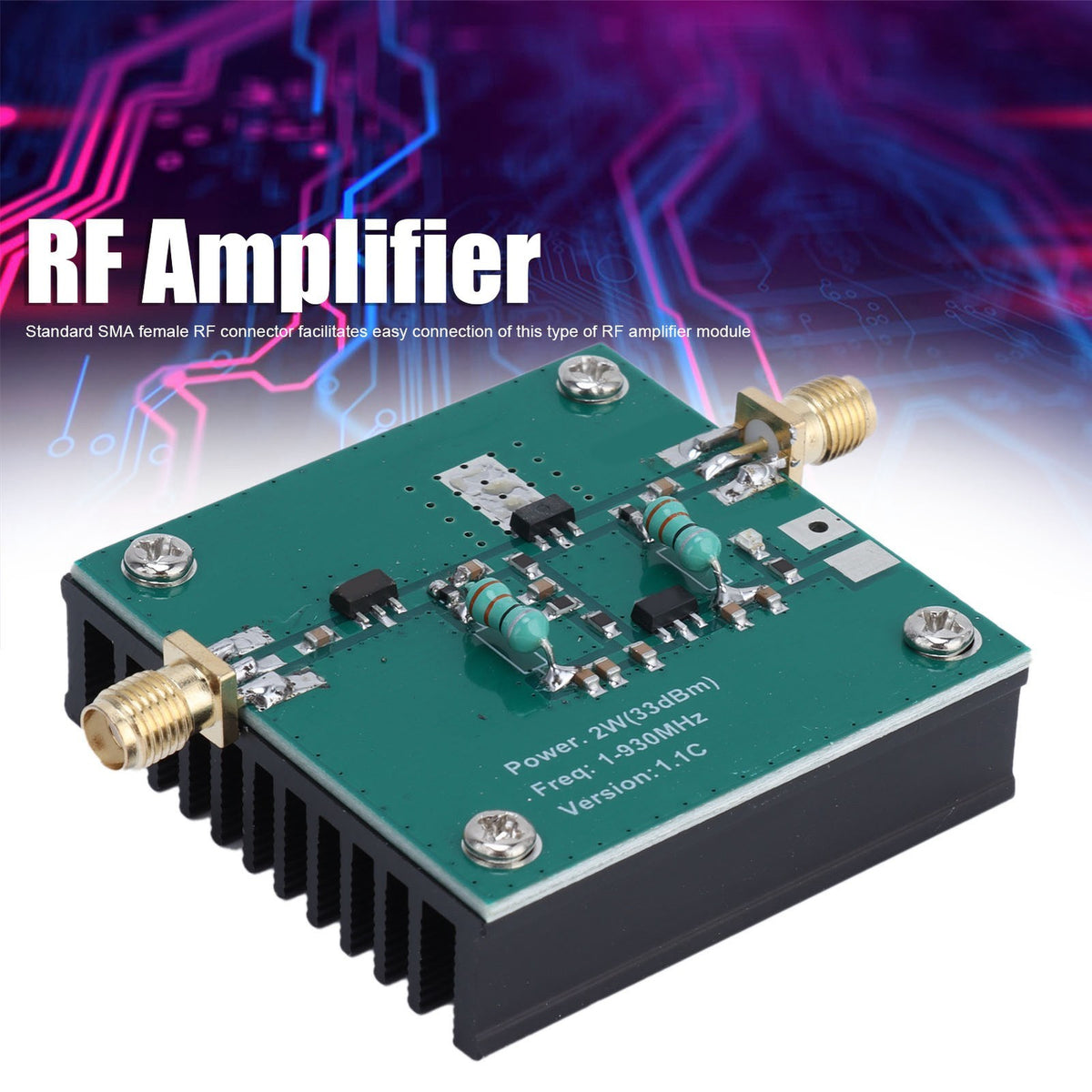

2. It utilizes standard SMA female RF connectors, facilitating easy and convenient connection of this amplifier module.

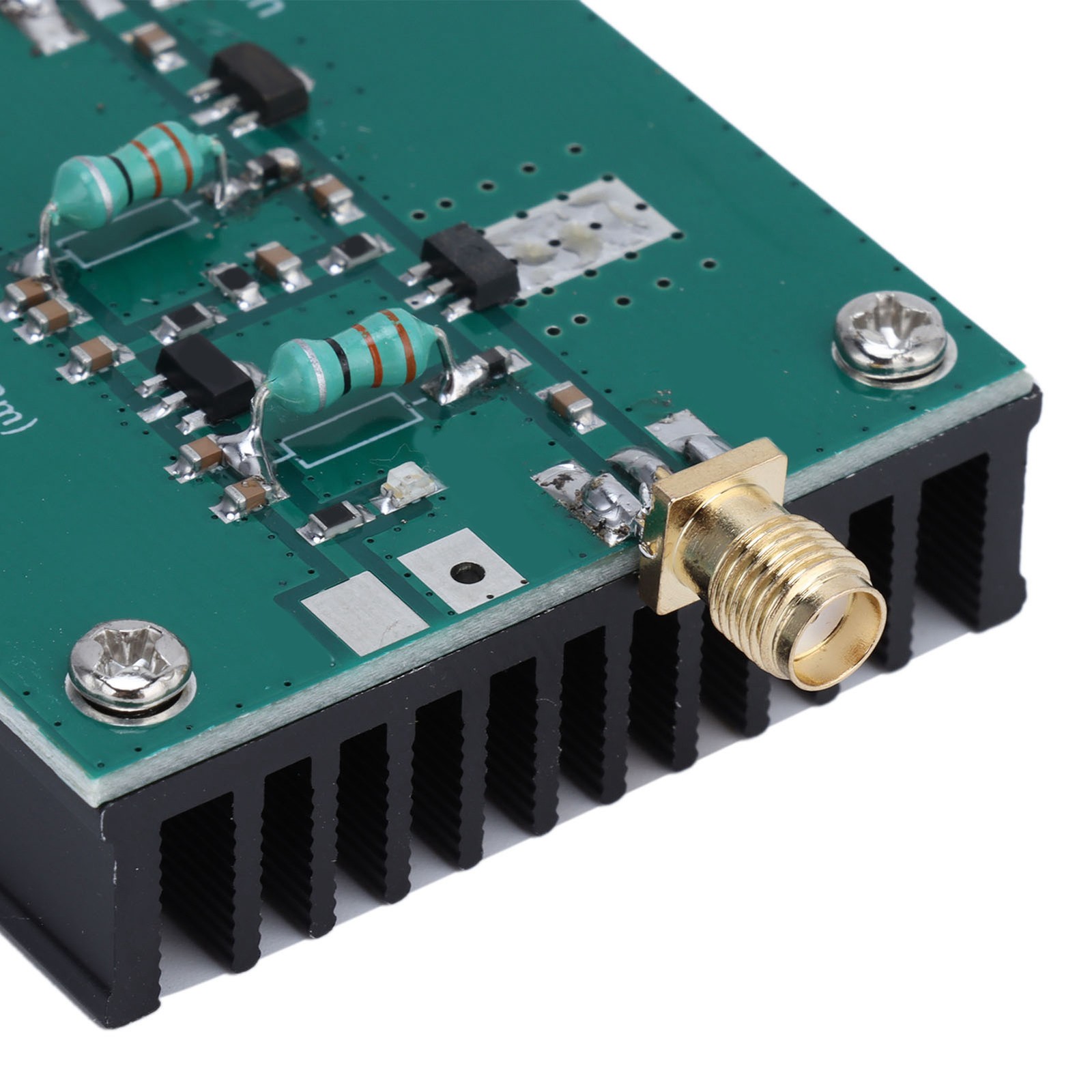

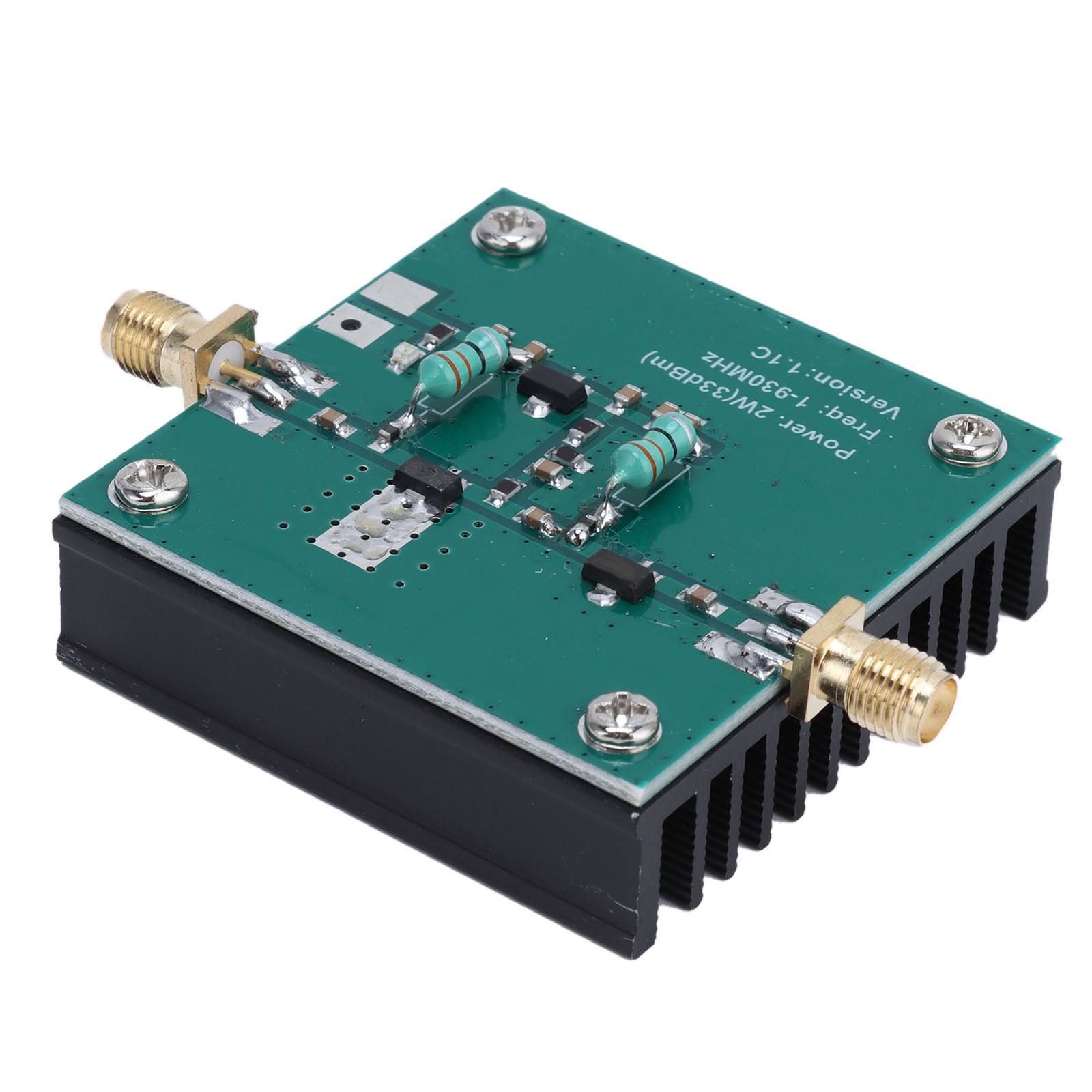

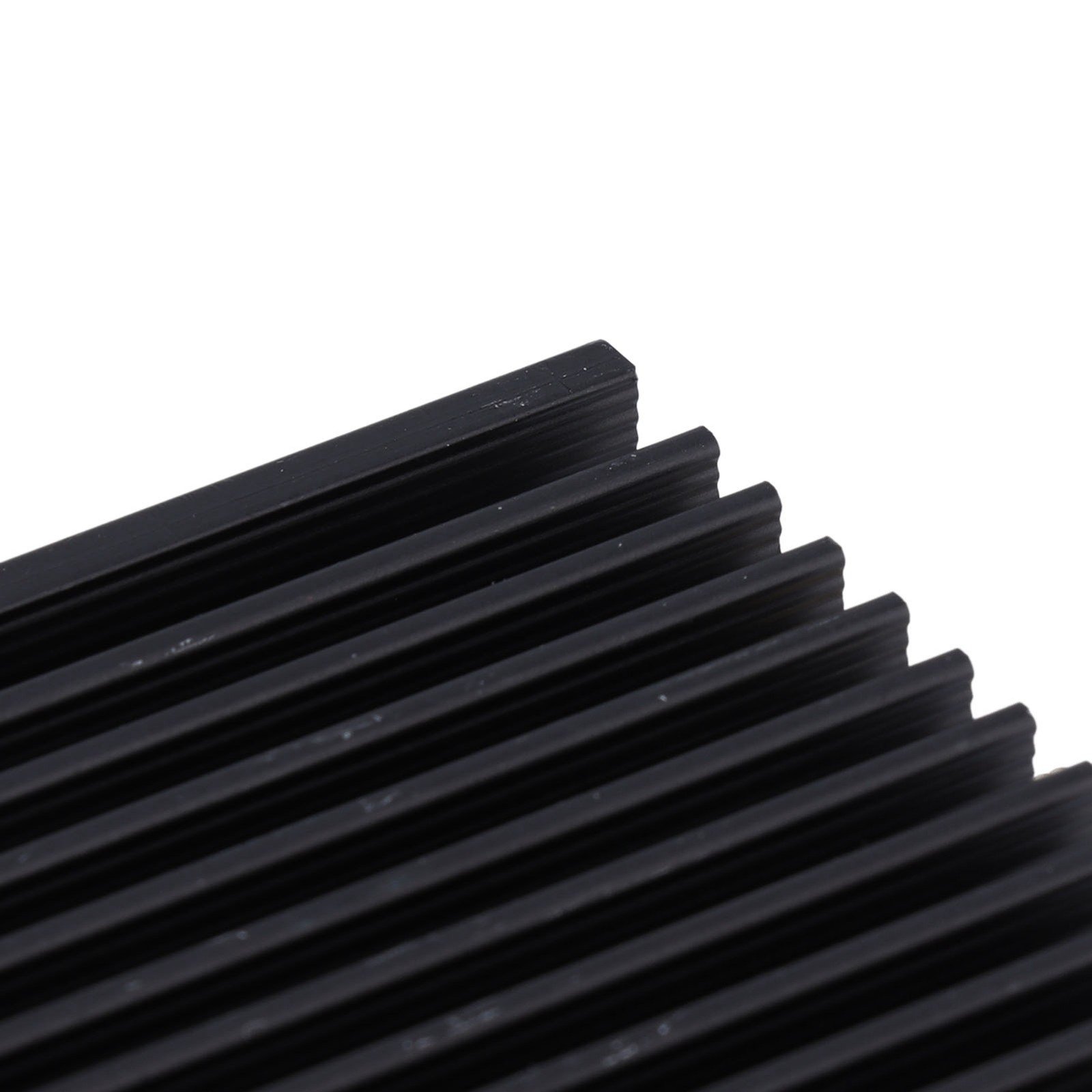

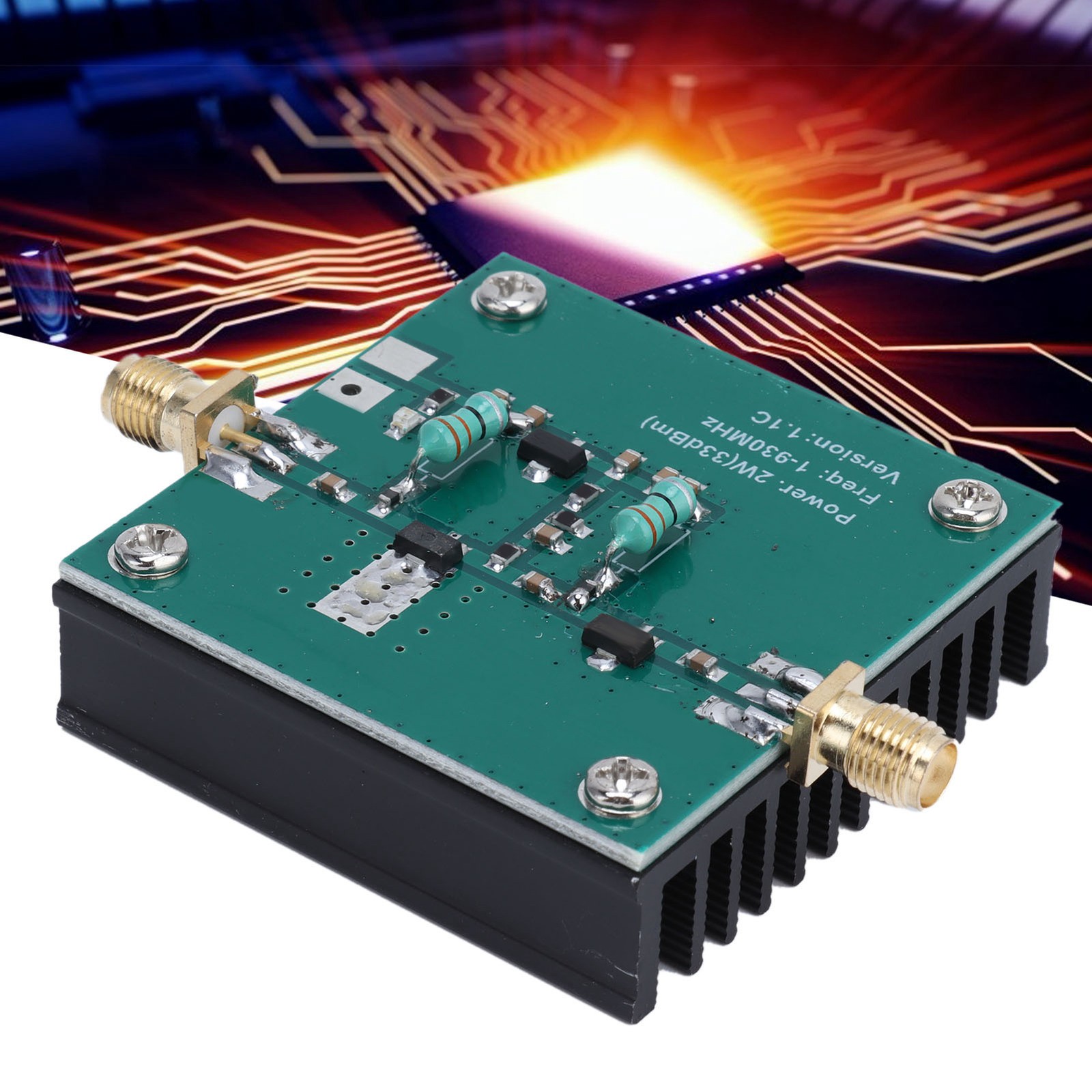

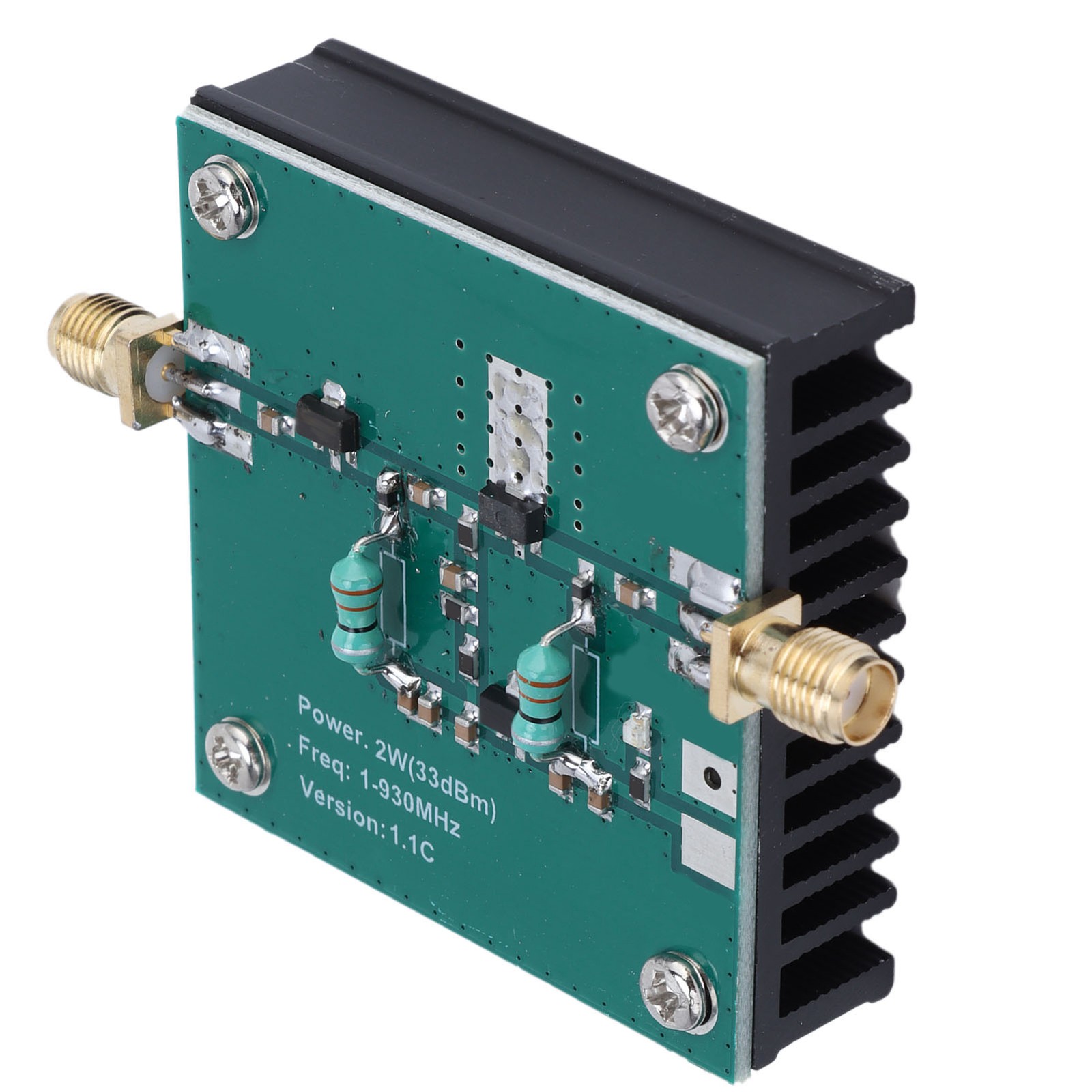

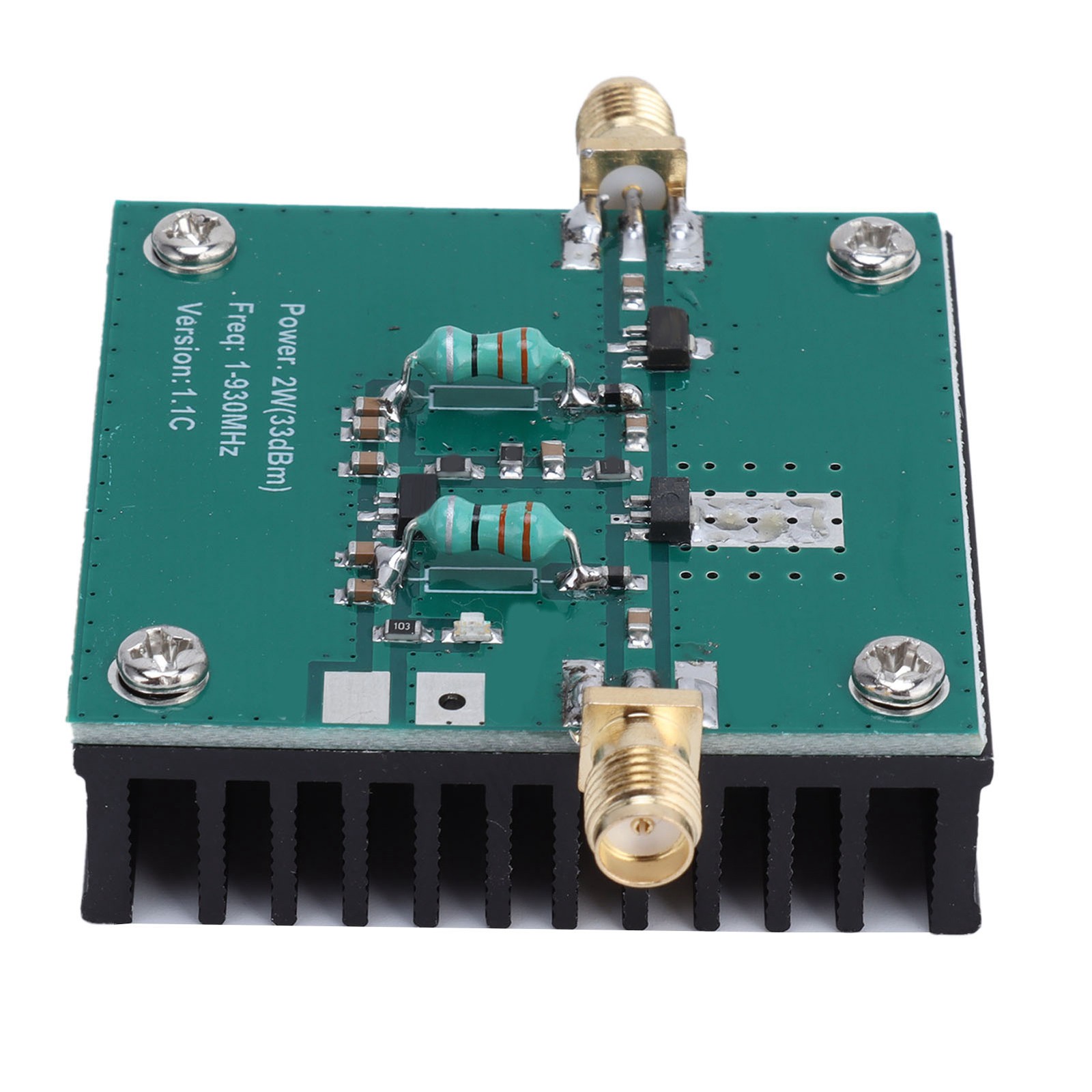

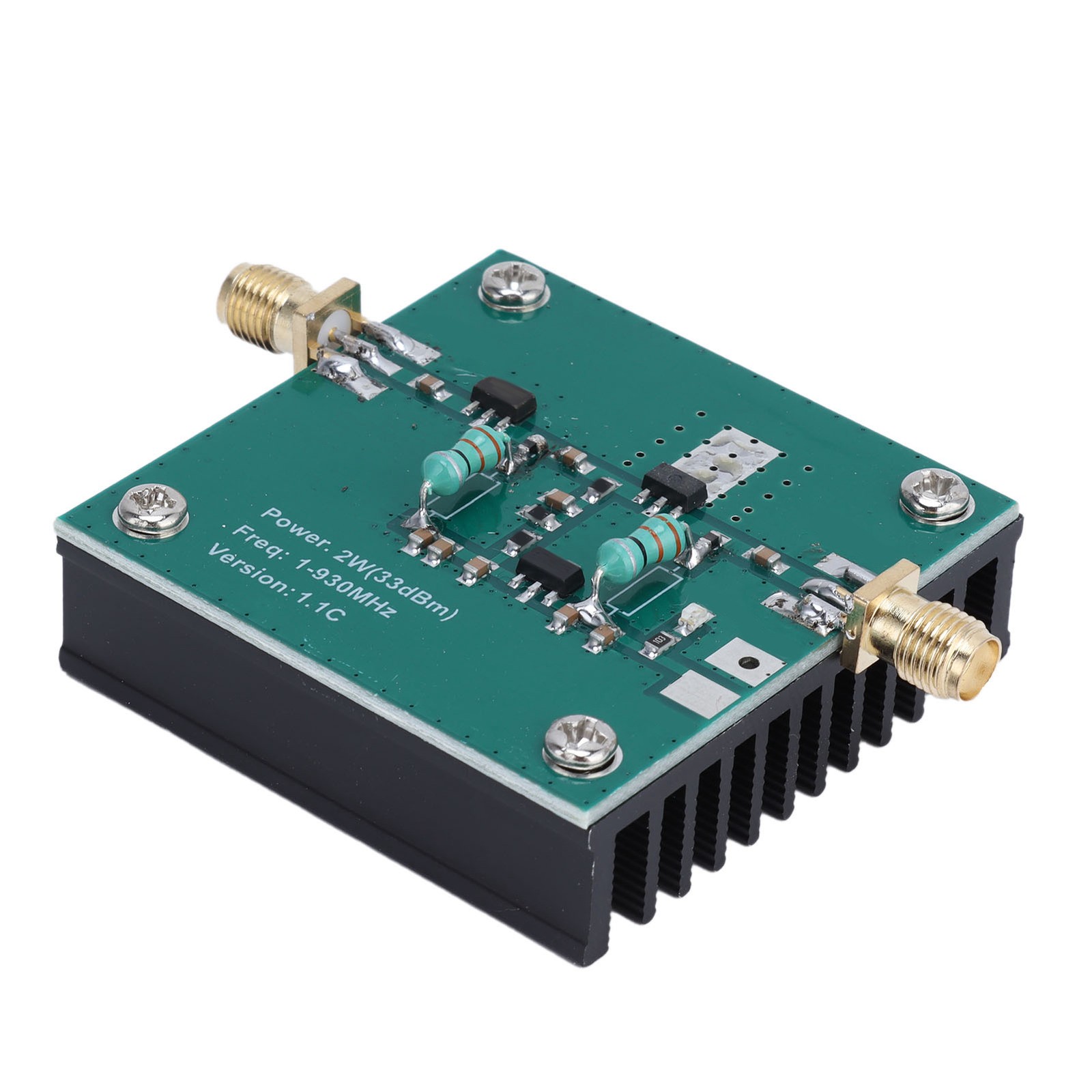

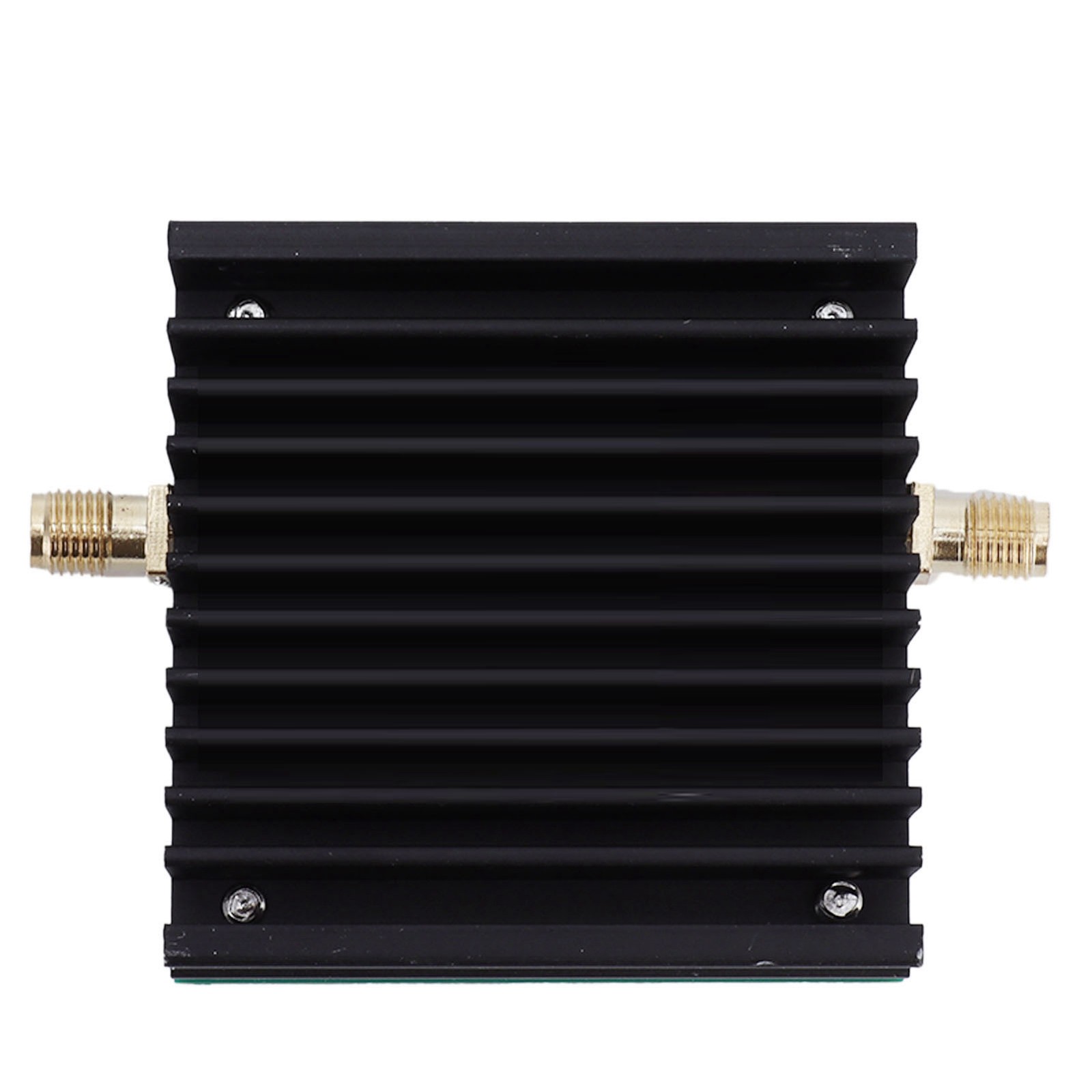

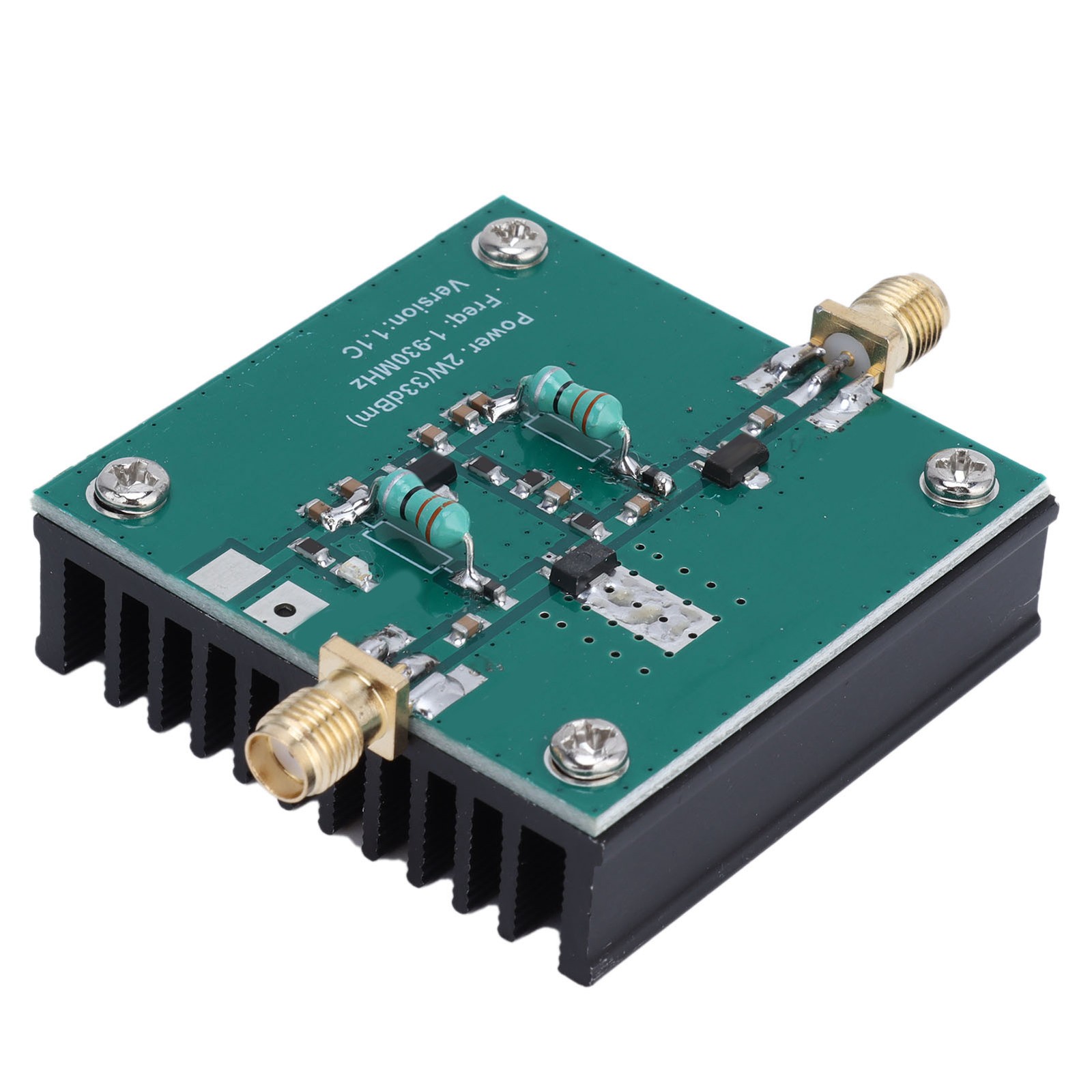

3. This broadband RF power amplifier features a heatsink design equipped with durable cooling fins to ensure long-term operational stability.
4. The input power is 1 mW (0 dBm); at the low-frequency end (10 MHz), the maximum output power can reach 2.0 W (33 dBm).
5. The operating current ranges from 300 to 400 mA—depending on the specific output power—offering both operational flexibility and energy efficiency.
Specifications:

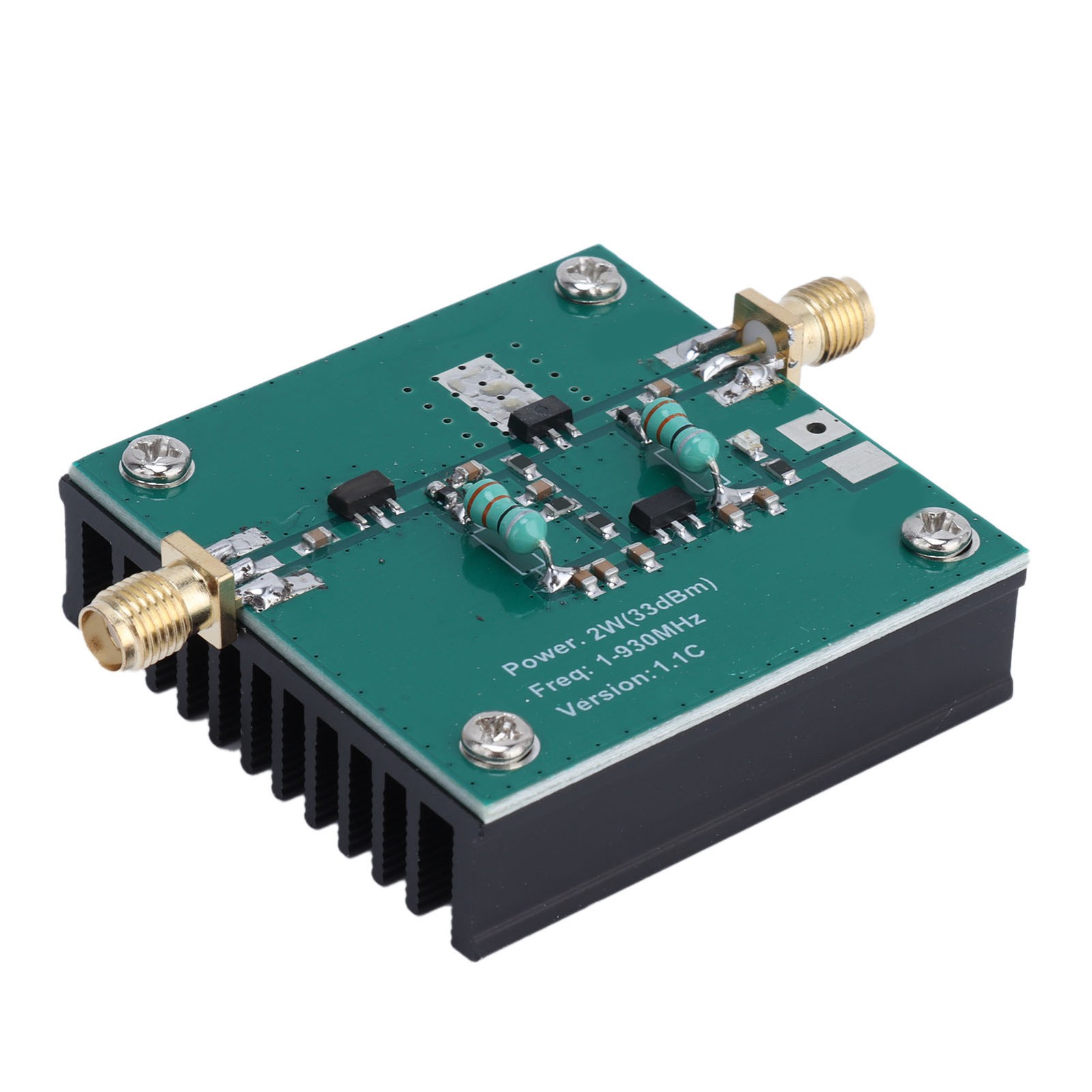

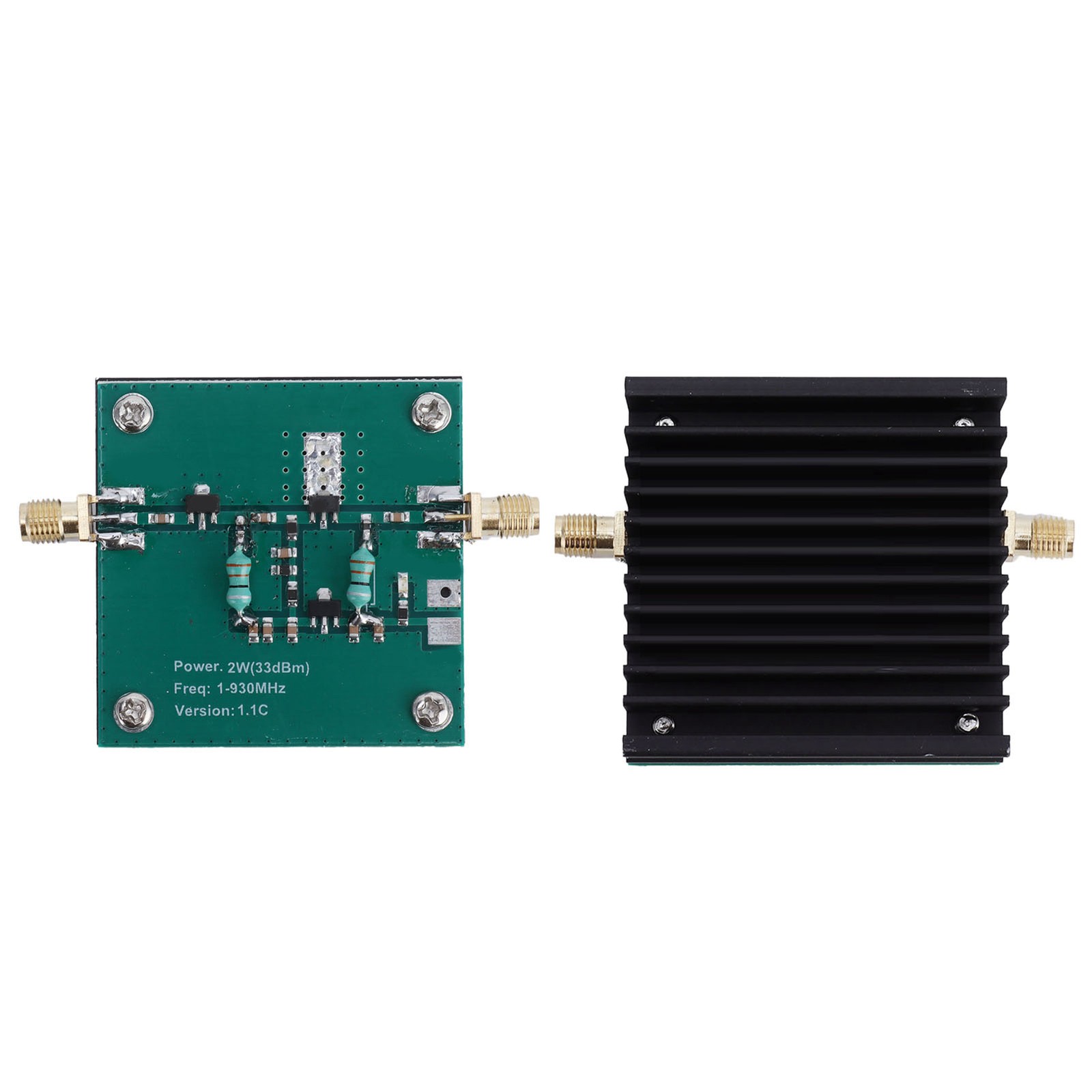

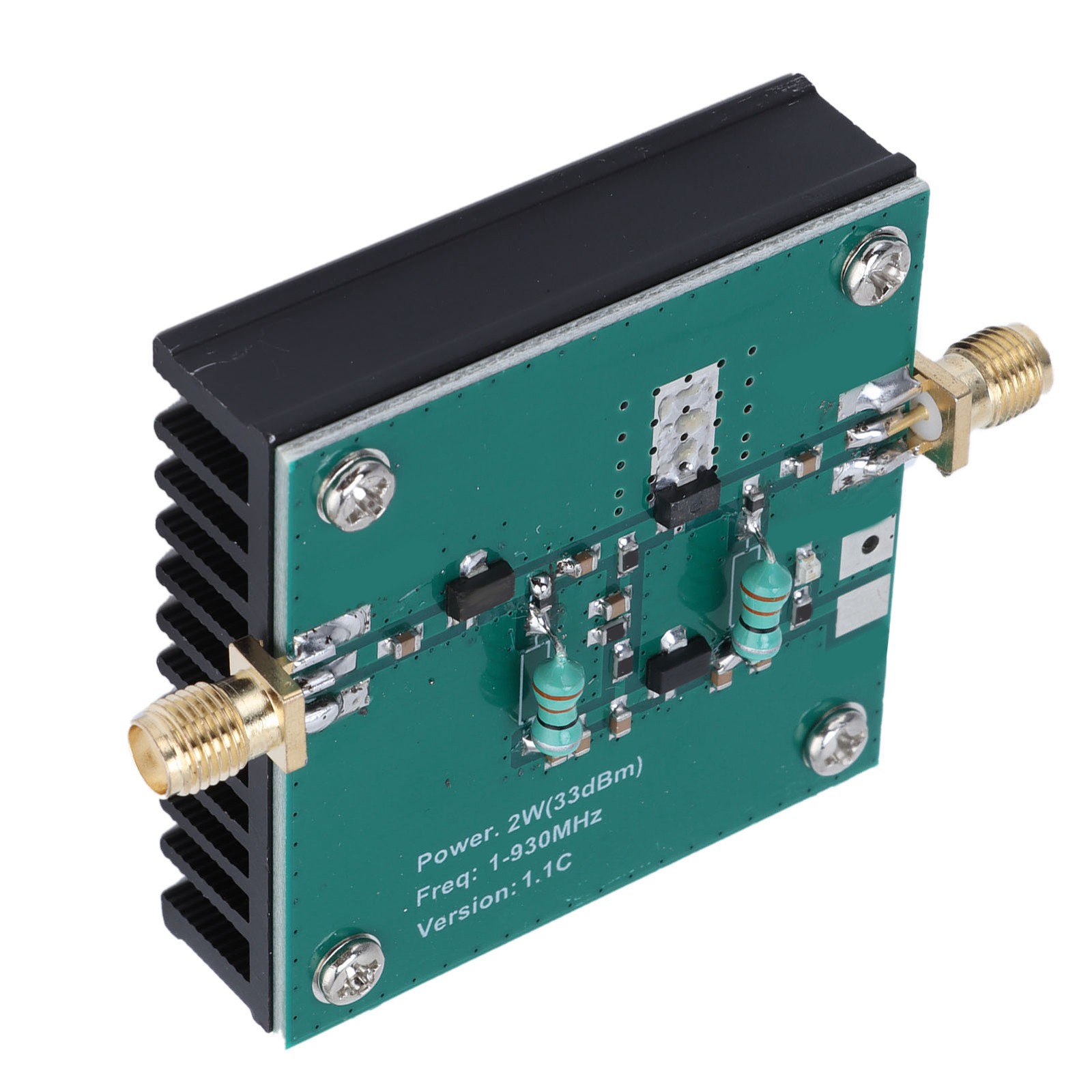

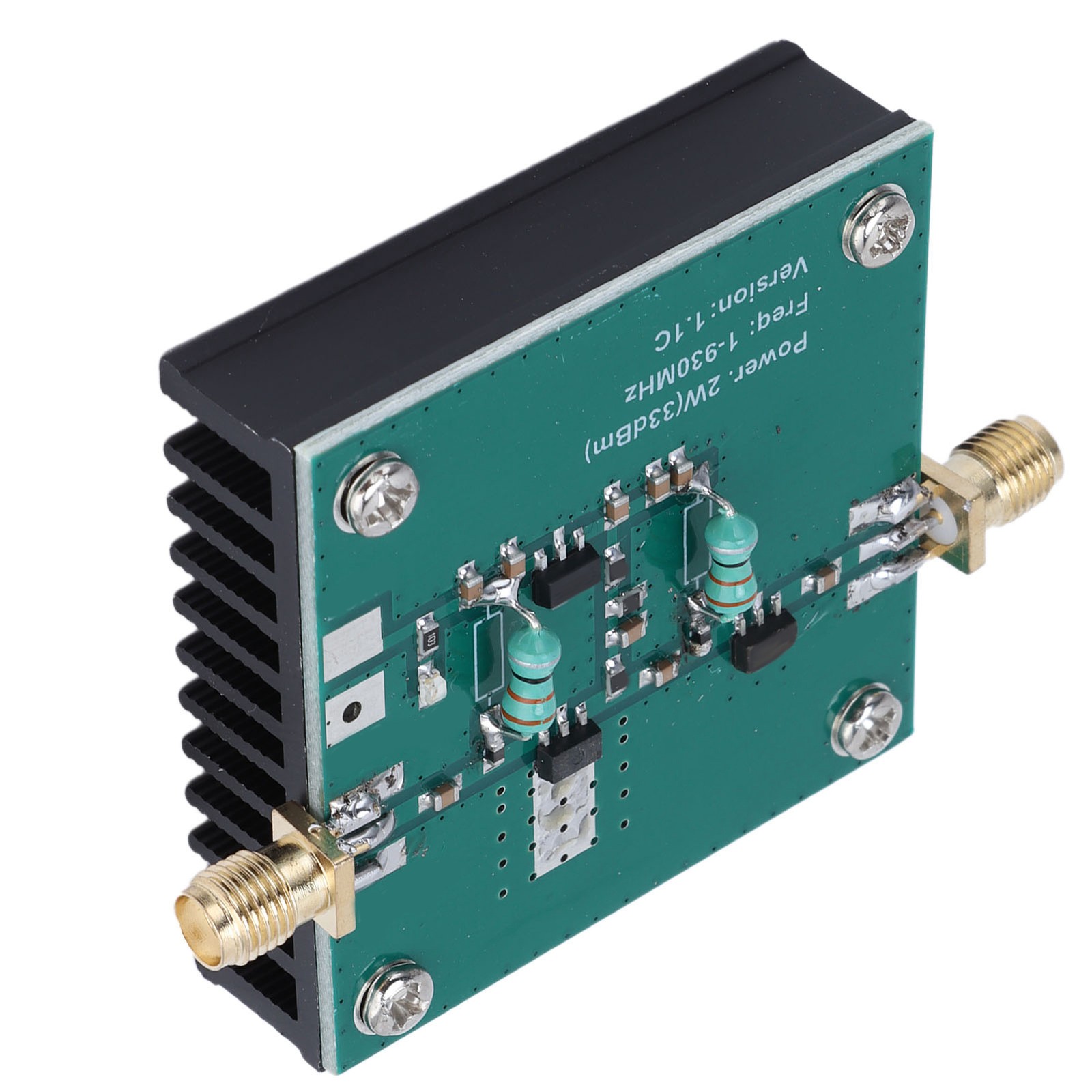

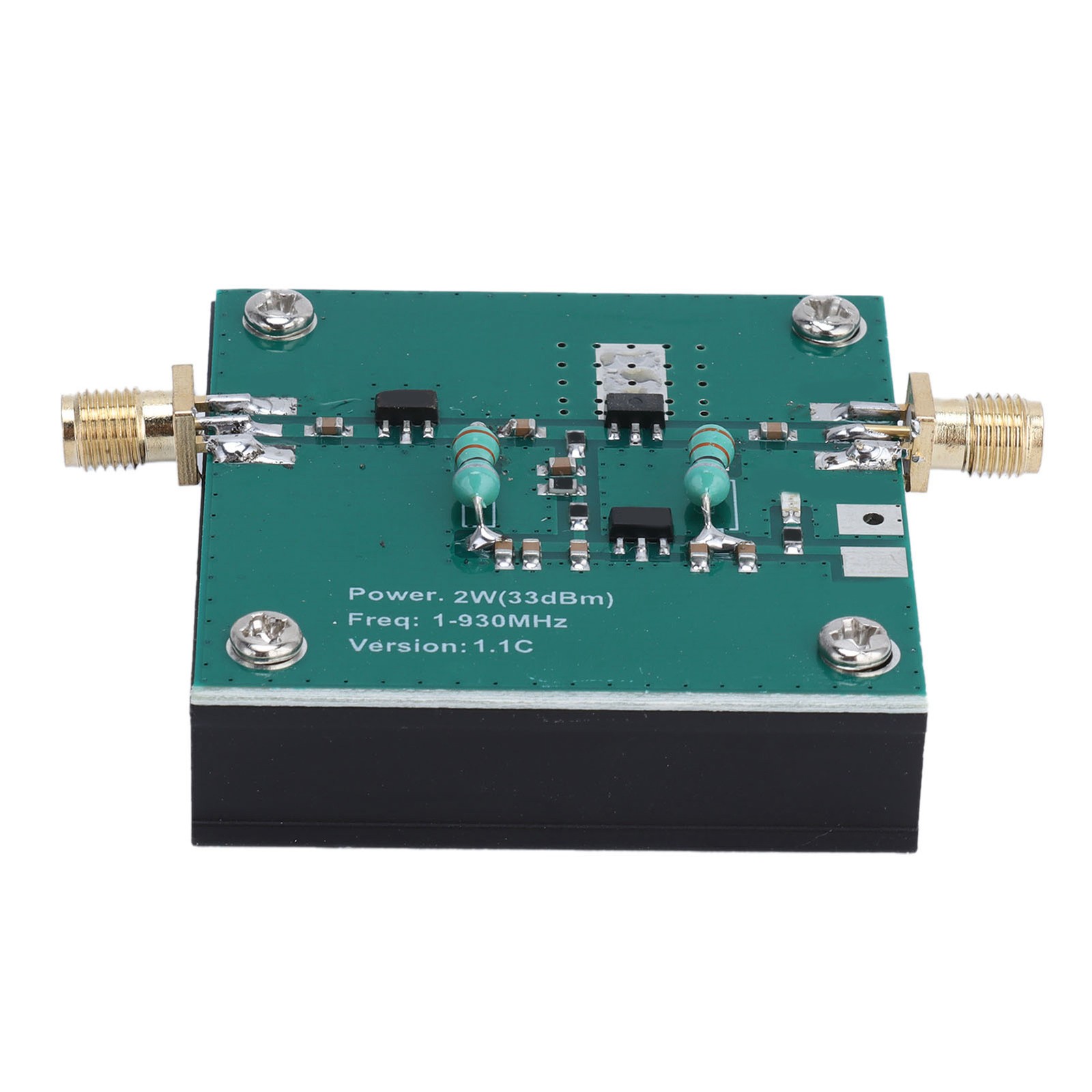

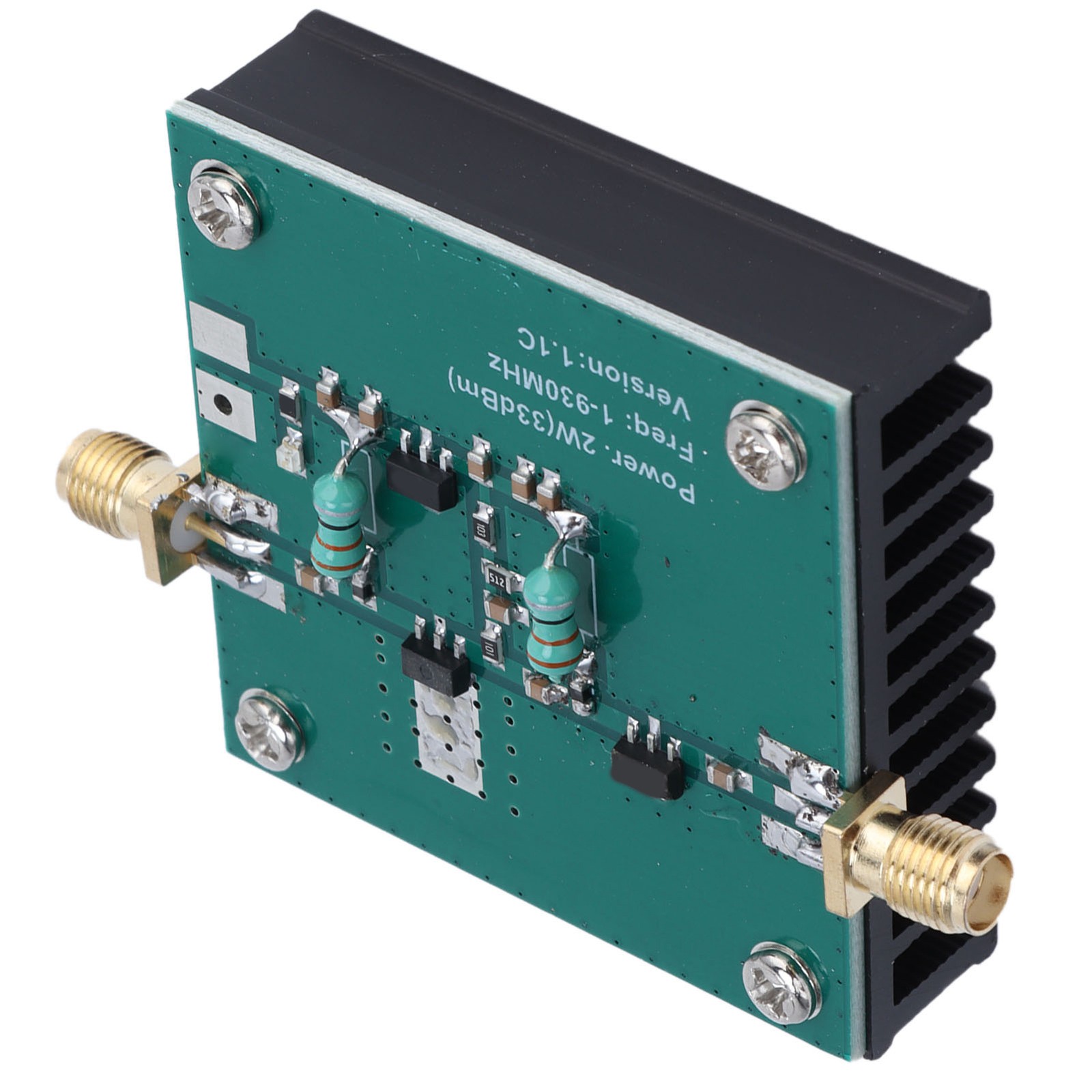

Broadband RF Low-Power Amplifier
This broadband RF low-power amplifier is suitable for use in various radio transmission applications, such as shortwave FM wireless remote control systems, FM radio broadcasting stations, amateur radio operations (135–175 MHz), and two-way radio/intercom systems (380–470 MHz). With a 1 mW input, the amplifier can deliver a maximum output power of 2.0 W at the low-frequency end; maximum outputs reach 1.6 W at 512 MHz, 1.0 W at 930 MHz, and 0.8 W at 1000 MHz. Equipped with a heatsink, this amplifier is designed to operate stably over extended periods. 1. Technical Specifications:
Operating Frequency: 1–930 MHz
Input Power: 1 mW (0 dBm)
Maximum Output Power: 2.0 W (33 dBm) at Low Frequencies (10 MHz)
1.6 W (32 dBm) at Mid Frequencies (512 MHz)
1.0 W (30 dBm) at High Frequencies (930 MHz)
0.8 W (29 dBm) at High Frequencies (1000 MHz)
Operating Voltage: 12 V (DC)
Operating Current: 300–400 mA (determined by output power)
RF Connector: Standard SMA Female
Packing List:
1 x RF Broadband Amplifier
