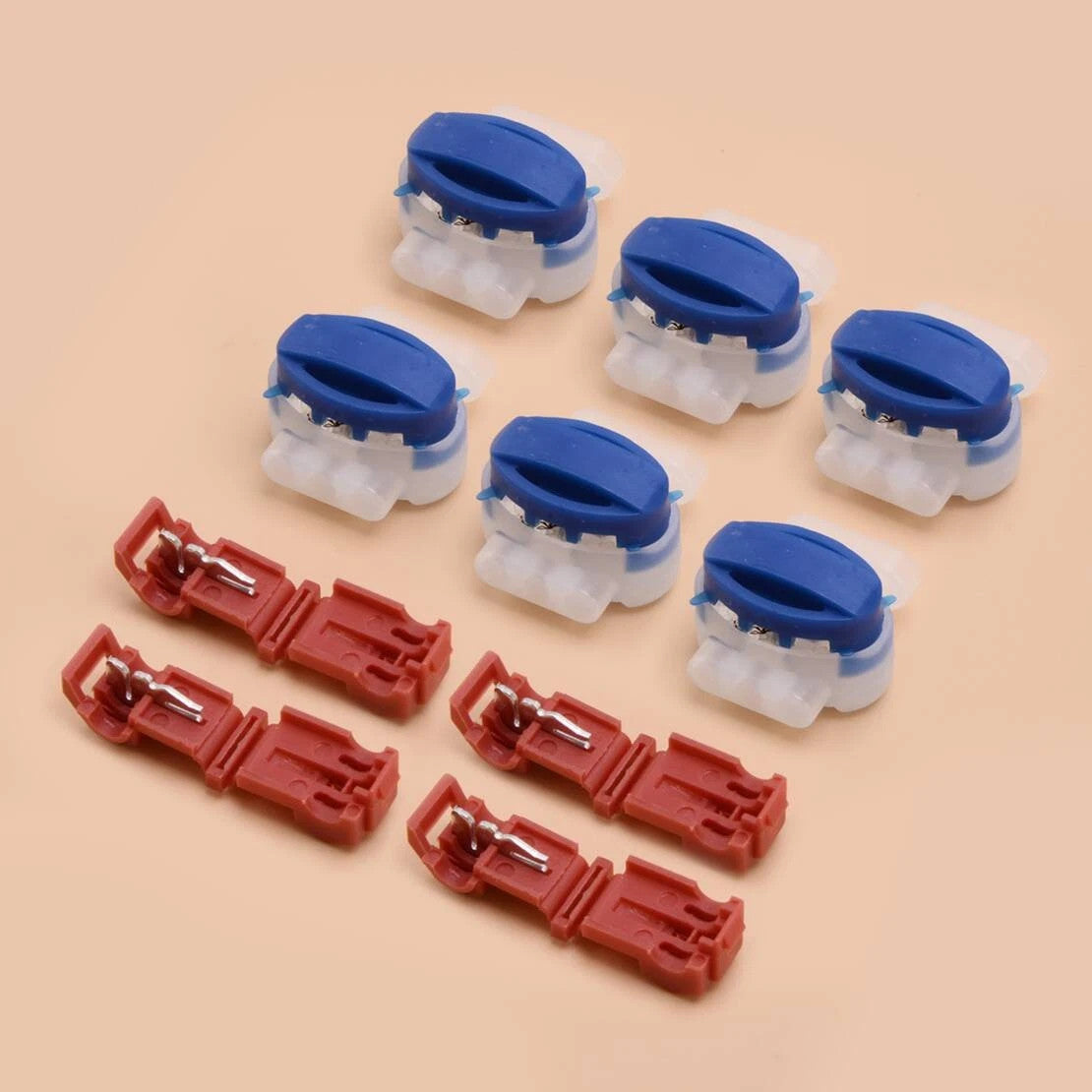

Product Name: 314 Terminal Block
Product introduction: Self-peeling insulation layer, rubber filled and moisture resistant
Two or three wires are connected in parallel.
Material: Imported PA66 (not!! PA6) + customized grease
(ROHS2.0/CE passed)
Introduction to operation: 1. First twist the double wires to be connected in one turn
2. Keep the end of the twisted pair cable at 19mm
Note: Do not damage the insulation layer!
3. Hold the terminal block and press and hold the button down.
Insert the double cable into the connector as far as it will go.
4. Crimp the connections with crimping pliers.
Scope of application: Used for two-line or three-line connections, e.g. B. for network line/telephone line connections
Applicable range: 0.65-1.63mm, including insulated wire diameter 3.18mm

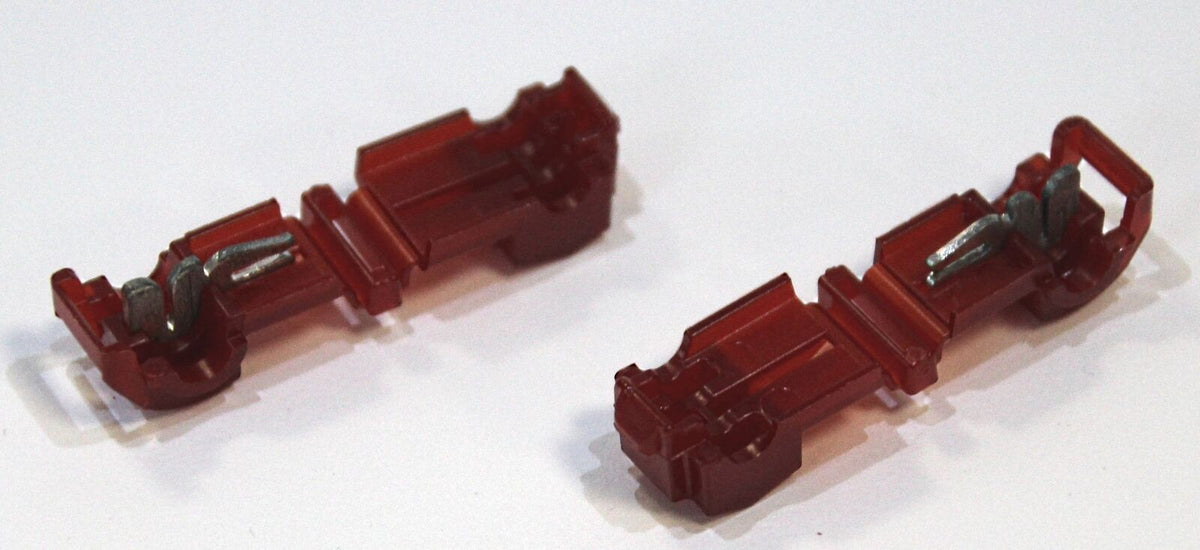

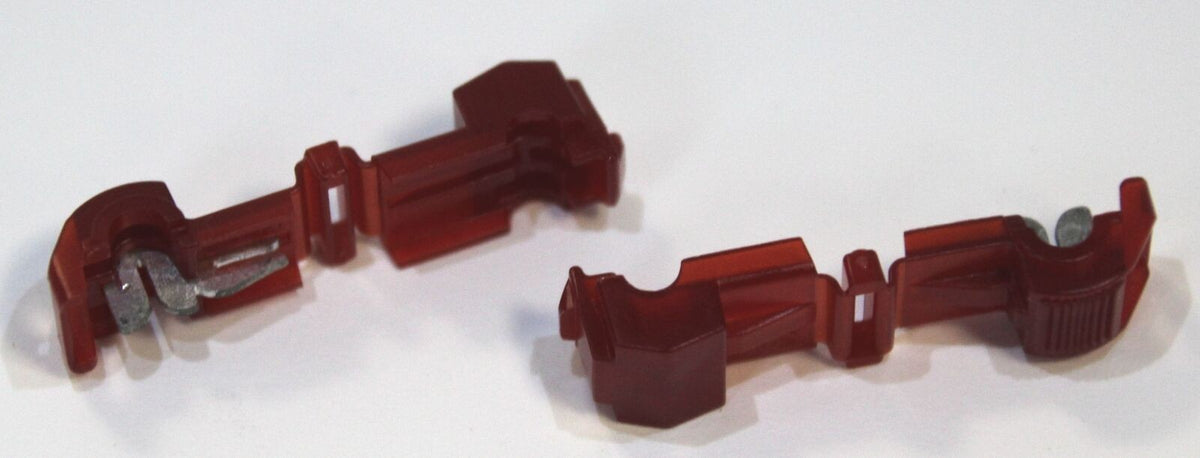

Product Name: T-Type Puncture-Free Cable Clamp Block
Red color
Material: tin plated brass, nylon
Maximum current: 10A
Clamp Wire Range: 22-18 AWG (0.5-1.0mm²)
Features: No need to break cable, quick cable separation, good insulation, easy installation.
Usage: Put the main line into the main line card, clamp it and fix it with a vise.
Use crimping pliers to clamp the splitter handle as well as the main line buckle and branch line card.
Purpose: Suitable for wires, power cables and electrical devices in power distribution equipment
connect.
