pecification:
Brand new
Model: NY-D01
Color: as shown in picture

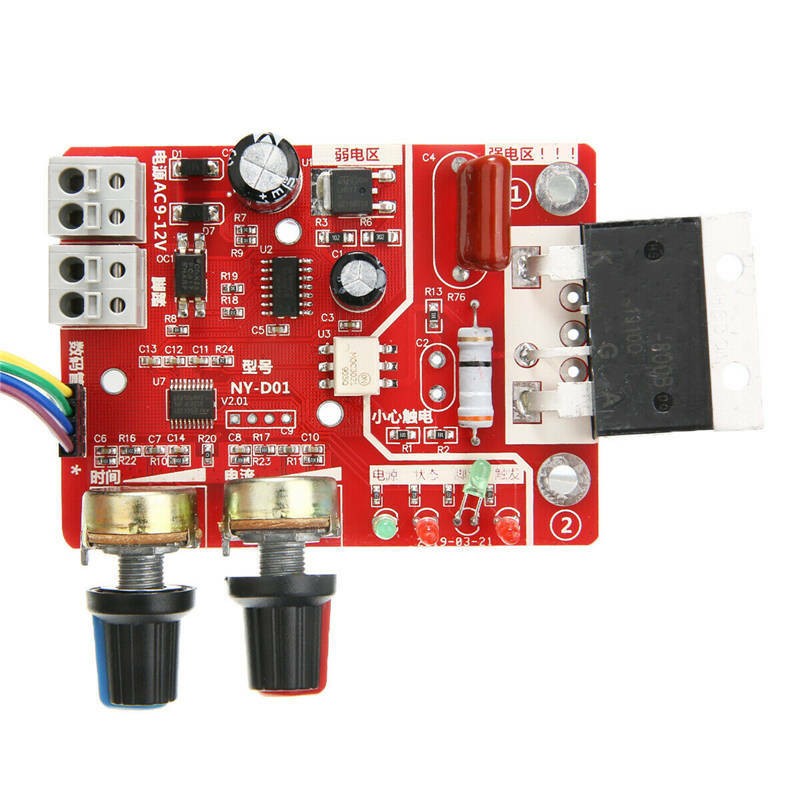

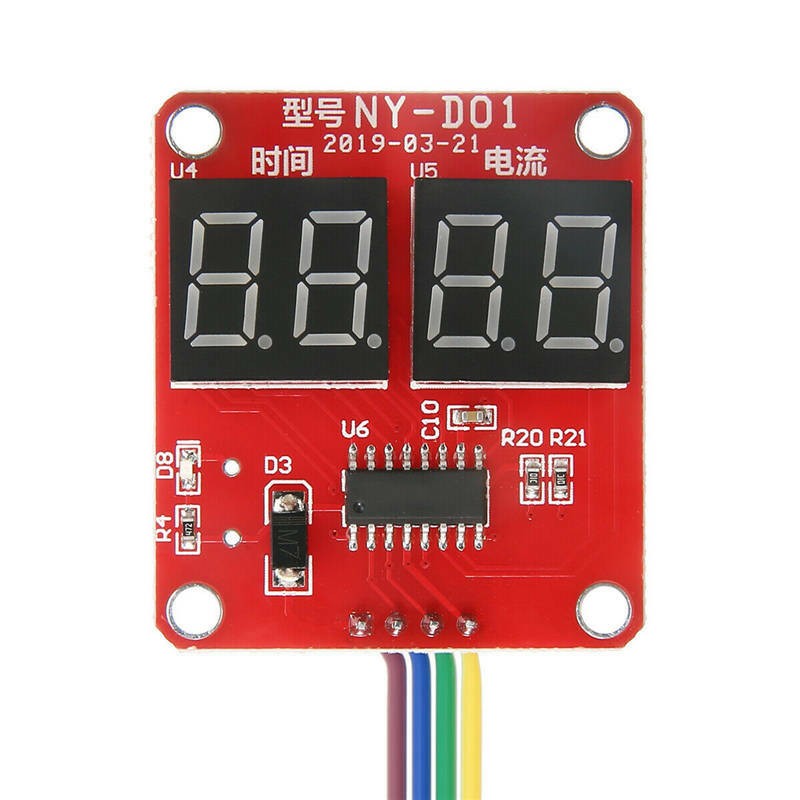

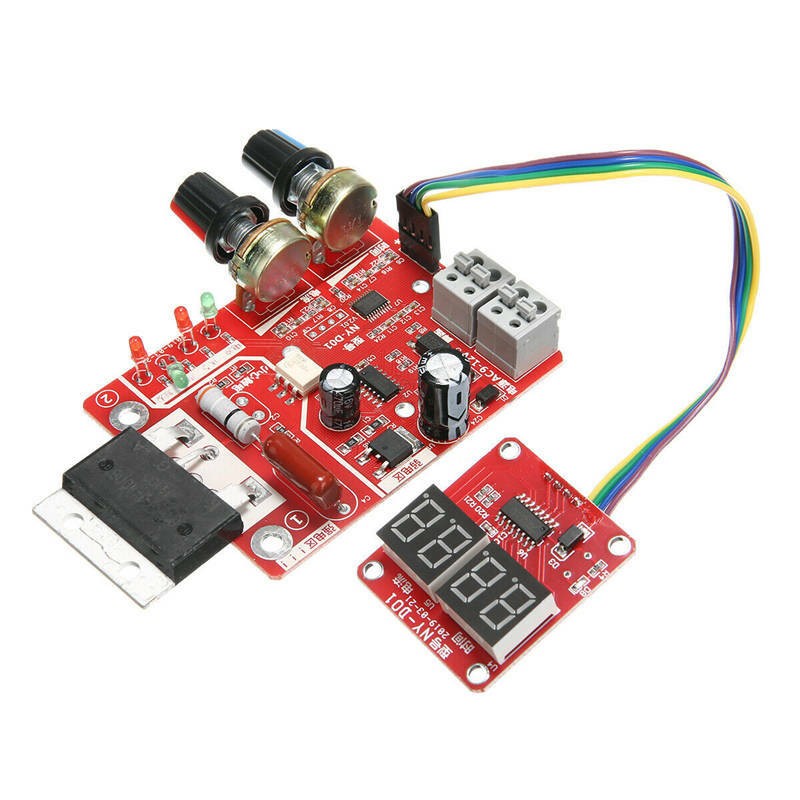

Includes the control panel, display panel, cable matching, red green button.
The trigger phase shift controlled silicon principle is adopted to adjust the time and current to achieve the welding target.
Use of STM8 industrial control center microcontroller.
Strong and weak electricity through optocoupler insulation.

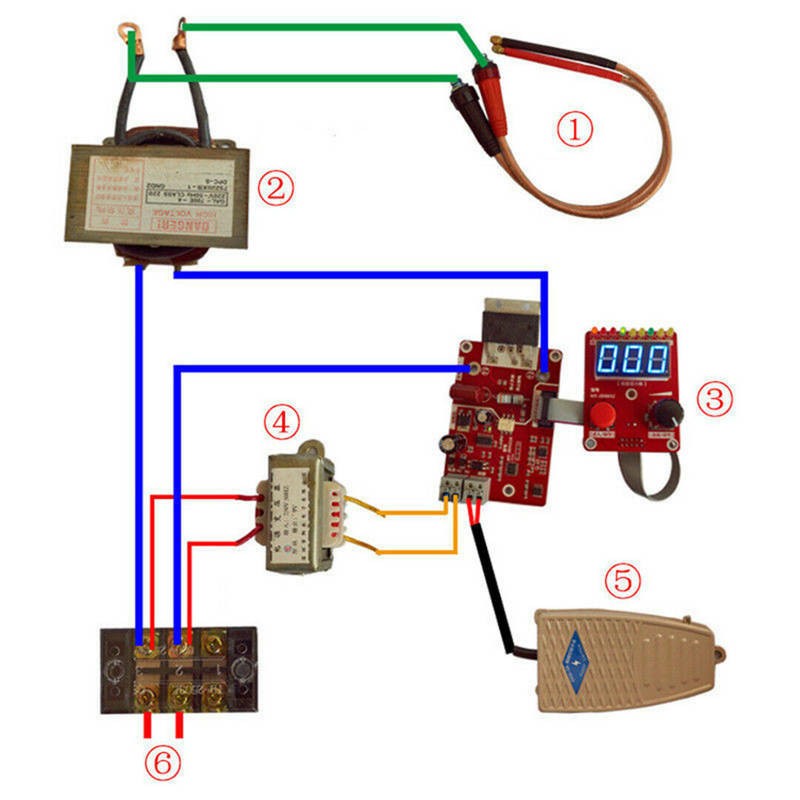

The power line and foot switch line adopts the bolt the quick connect terminal.
Input time, current using high-precision simple potentiometer.
On-board power supply, state, foot, trigger indicator, work status clearly visible.
The design of reliable zero crossing detection circuit to ensure that the SCR phase shift accuracy.
The controller is compatible with 100A scr.
Input time of 1-50, cycle unit (1 cycles is 20 ms), current input (30-99%).
Fine workmanship and good performance.
Easy to in stall and use.
Long service life.
Package included:
1 x Spot Welding Machine Control Board
Note:
Please allow a little size errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
NY-D01 100A Digital Spot Welder Machine Control Panel Circuit Board Welding
£14.00
