Product Description

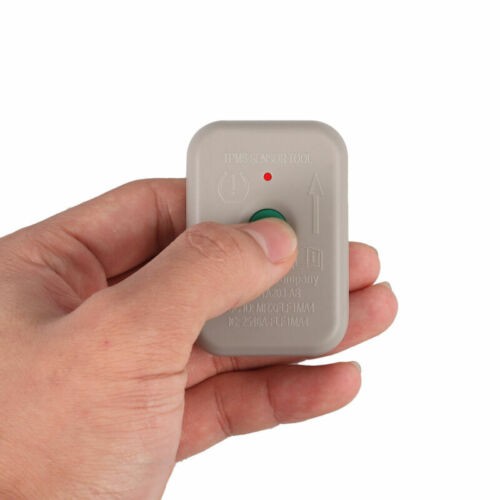

FOR Ford TPM19 TPMS Activation Training Tool Tire Pressure Monitior Sensor Reset
Supported car models. This TPMS19 sensor training tool has been adapted for all Ford Lincoln Mercury, Mazda vehicles with tire pressure sensor.

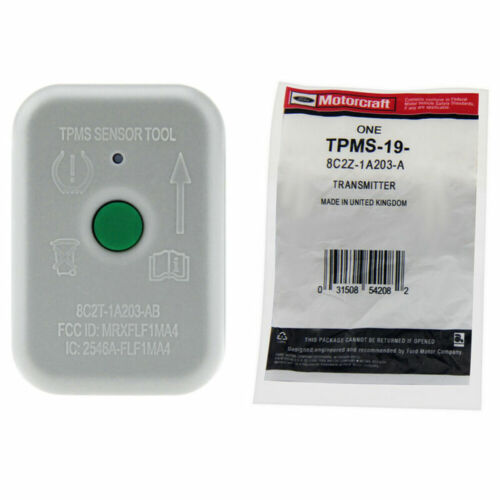

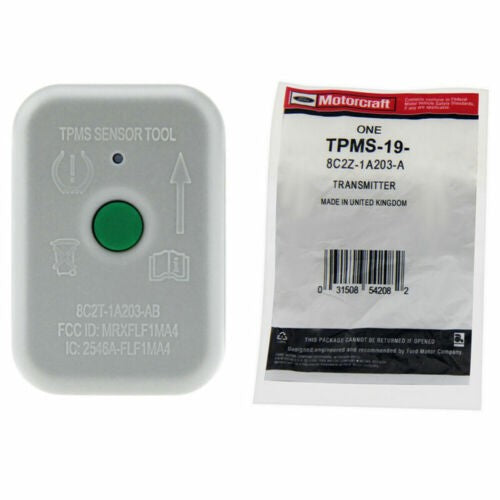

Replacement for P.N: 8C2Z1A203A, 8C2Z-1A203-A, TPMS19
TPMS Sensor Training Tool TPMS19 is an essential tool for replacing tire pressure sensor, removing or replacing tire pressure alarms. Perfect for monitoring tyre pressure and training your car's sensors to keep the TPMS warning light off

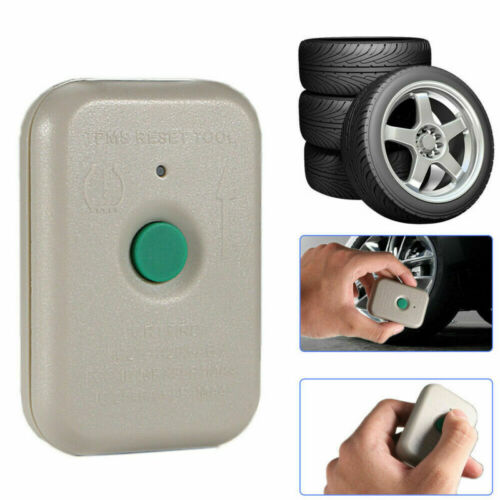

Easy to use.Super mini and waterproof TPMS reset tool that you can know to store in your pocket or in a toolbox. Very convenient and easy to hear, distinguish like the TPMS touch at the touch of a button.

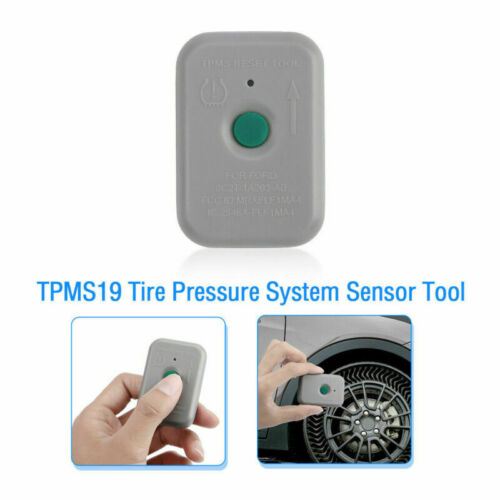

TPMS19 TPMS Sensor The tool allows you to train TPMS sensors for Ford vehicles, report tire pressure and temperature as well as air temperature and send the information back to the control module.
TPMS19 is a super mini TPMS relearn tool suitable for all Ford, Lincoln and Mercury with tire pressure sensor. This is an essential tool for replacing the tire pressure sensor, removing or replacing tire pressure alarms and supporting Ford series vehicles up to 2020.

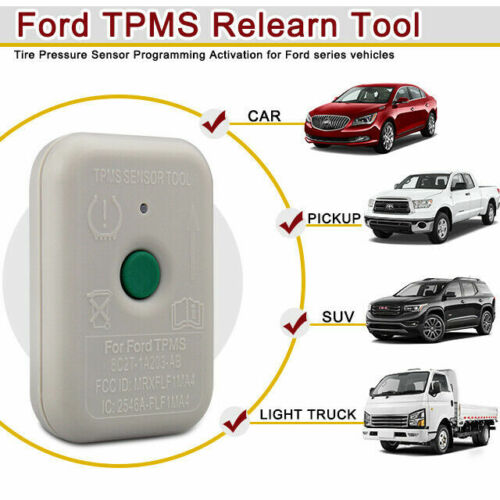

TPMS RELEARN TOOL FOR FORD
TPMS Relain Tool for Ford
WHEN DO YOU NEED THIS FORD TYRE REPAIR PRODUCT?
New TPMS sensors that release air or inject air into the tire could not cause the system to detect new sensors.
Turn the tire. There was no quick and easy way to let the ECU learn new tire information.
If the tyre pressure indicator lights up after servicing, the tyre pressure must be reset to turn off the TPMS indicator.
Low tire pressure or leakage.Replacement or installation of tire pressure monitoring equipment, tire change, sensor damage, etc. After these issues are resolved, the TPMS must be reset.
Replace winter or summer tyres.
TPMS Relain Tool for Ford
APPLICABLE MODELS
2008-2016 Ford Fiesta; 2007-2020 Ford Focus, Fusion;
2008-2020 Ford Crown Victoria; 2011-2020 Ford Transit Connect;
2008-2020 Ford Taurus; 2014-2020 Ford Transit;
2006-2020 Ford Ranger; 2012-2020 Ford C-Max;
2007-2020 Lincoln MKX, MKT; 2008-2020 Lincoln MKZ, MKS, Navigator;
2008-2011 Lincoln Town Car; 2007-2010 Lincoln Mark LT; 2015-2020 Lincoln MKC;
2006-2010 Mercury Mountaineer; 2006-2020 Monterey; 2006-2011 Mercury Mariner;
2007-2011 Mercury Mlian; 2006-2010 Mercury Grand Marquis.
2007-2020 Ford F-150, Mustang, Edge; 2006-2020 Ford Escape, Explorer;
2008-2020 Ford F-250 F-350 F-450 F-550 Super Duty;
2008-2020 Ford Expedition; 2008-2020 Ford Flex;
2008-2020 Ford E-150 E-250 E-350 E-450 Econoline Vans;
TIPS FOR THE TPMS TOOL
[1] Please make sure that the antenna is in the correct position.
[2] Do not put the tire in the garage, but outside.
[3] The position of the tires is also important. The front tyres must be straight
[4] Sensors should be original OEM sensors that are well programmed.
[5] Turn off the device after testing a tyre.
[6] Press the Start button again to activate the next one.
How is the Ford vehicle put into TPMS new learning mode?
Turn the ignition switch to OFF. Then press the brake pedal and release it.
Switch the ignition switch three times from the OFF position to the RUN position and end in the RUN position.
Press the brake pedal and release.
Turn the ignition switch to OFF.

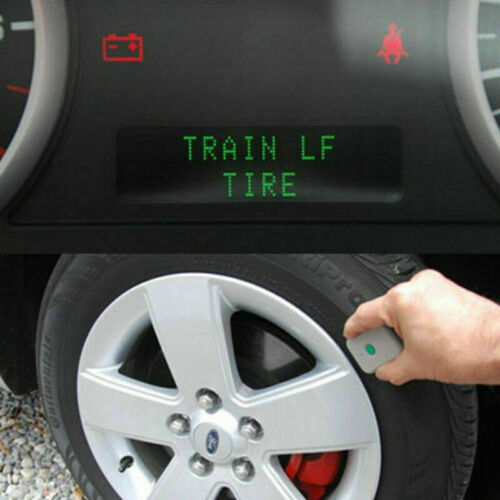

Turn the ignition switch three times from the OFF position to the RUN position and end in the RUN position. The horn sounds once and the indicator flashes when the training mode is successfully entered. If present, the Message Center displays "TRAIN LF TYRE".
How to use the TPMS19 Sensor Tool?
HOW TO USE THE TPMS 19 SENSOR TOOL
Put the car into TPMS learning mode. (Car honking twice)

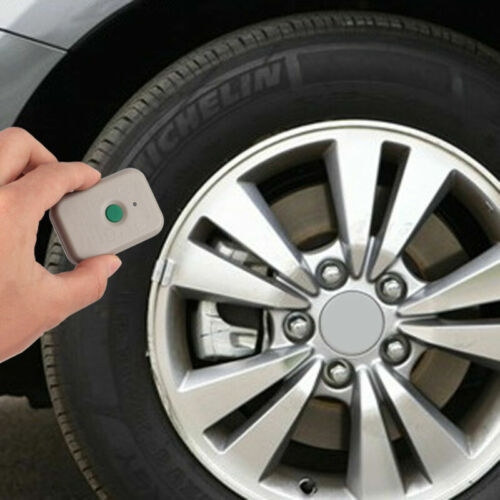

Start the re-learning process from the left front tyre and point the antenna to the correct position. Press and release the power switch. Once the speaker has twitched, proceed to the next tire.
Follow this order to rest the TPMS sensors: front left, front right, back right, back left.
After all sensors have been reset, the auto horn twice indicates that TPMS re-learning is over.
Packing List:
1pc/TPMS Reset Tool
