Product Description:
Auto-ranging, backlight, data hold
Resistance, capacitance and frequency ranges all with 550V overvoltage protection
Large LCD display, up to 2000 counts
Sampling rate: 3 times per second
Polarity recognition
Low voltage indication
Current measurement
Auto power off
Main measurements: AC/DC voltage, AC/DC current, resistance, diode and continuity test
AC voltage: 0.1mV to 750V
DC voltage: 0.1mV to 1000V
AC current: 0.1uA to 200mA
DC current: 0.1uA to 200mA
Resistance: 0.1Ω to 20MΩ
Functions:
(1) DC voltage: 200mV/2V/20V (±0.8%+5%), 200V/800V (±1.0%+8%)
(2) AC voltage: 200mV (±1.5%+8%), 2V/20V/200V (±1.2%+5%), 600V (±1.5%+5%)
(3) DC current: 20mA (±1.5%+5%), 200mA (±1.2%+5%) )
(4) AC current: 20mA (±2.0%+5%), 200mA (±1.5%+5%)
(5) Resistance: 200Ω (±2.5%+5%), 2K/20K/200K/2MΩ (±1.0%+5%), 20MΩ (±2.5%+5%)
(6) Over-range indication: OL
(7) Working environment temperature: 0~40℃, relative humidity <80%

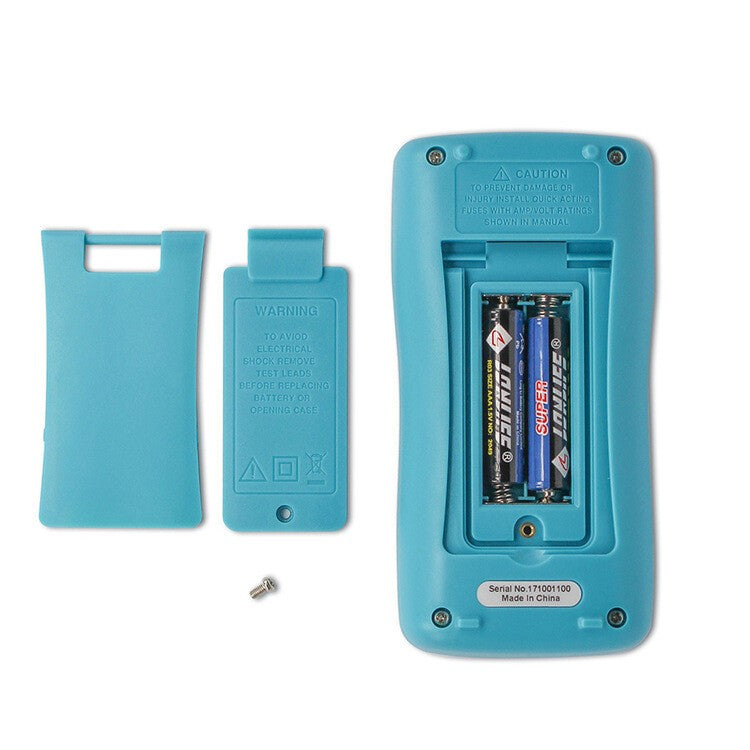

(8) Power supply voltage: 3V (1.5V AAA battery * 2 pieces) (This product does not include batteries)

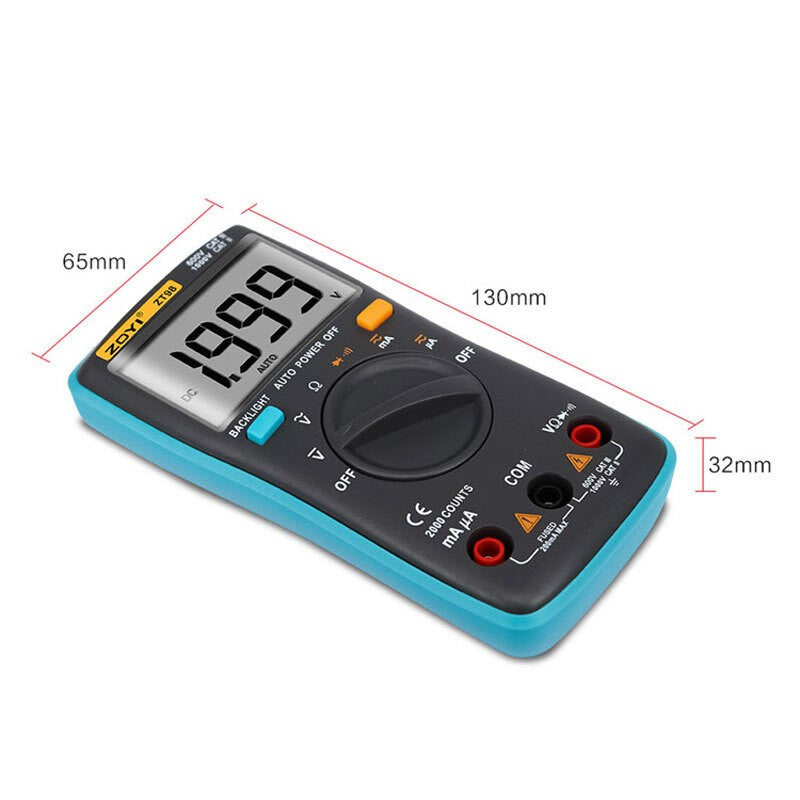

(9) Dimensions: 130*65*30mm

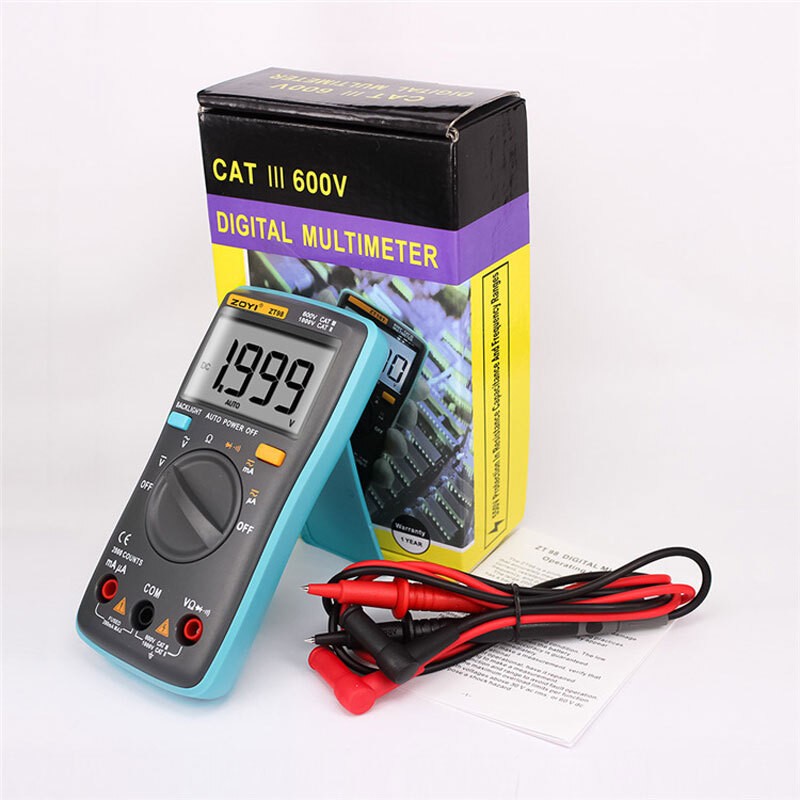

Packing list:
1 multimeter (This product does not include batteries)
