Description:
The Surge Protector is a lightning arrester of coaxial construction. The device is designed to absorb the surge of lightning strikes on an antenna at the top of a building and ground it, thus providing full lightning protection for transceivers, receivers, etc.
Features:
Designed with a stress on high safety, this device has a built-in gas-charging surge arrestor element which discharges and grounds the surge at the moment the surge voltage exceeds a specified level.
This device makes the actions of surge discharge and restoration as repeatedly as necessary. No replacement is practically needed .
Should the surge arrestor element be damaged, it can easily be replaced with a new element.
The coaxial construction of this device assures excellent high frequency characteristics, wide bandwidth and low loss and VSWR.
1/4 wavelength short circuit principle for good lightning protection effect. Simple structure, strong, easy installation.
Specifications:
Material: Iron
Color: Black
Model: CA-35RS
Connector: UHF/UHF
Frequency range: 0-2500MHz
Voltage standing wave ratio: ≤1.1
Peak power: 400w
Voltage: DC 230A
Current: 500A
Impedance: 50 ohms

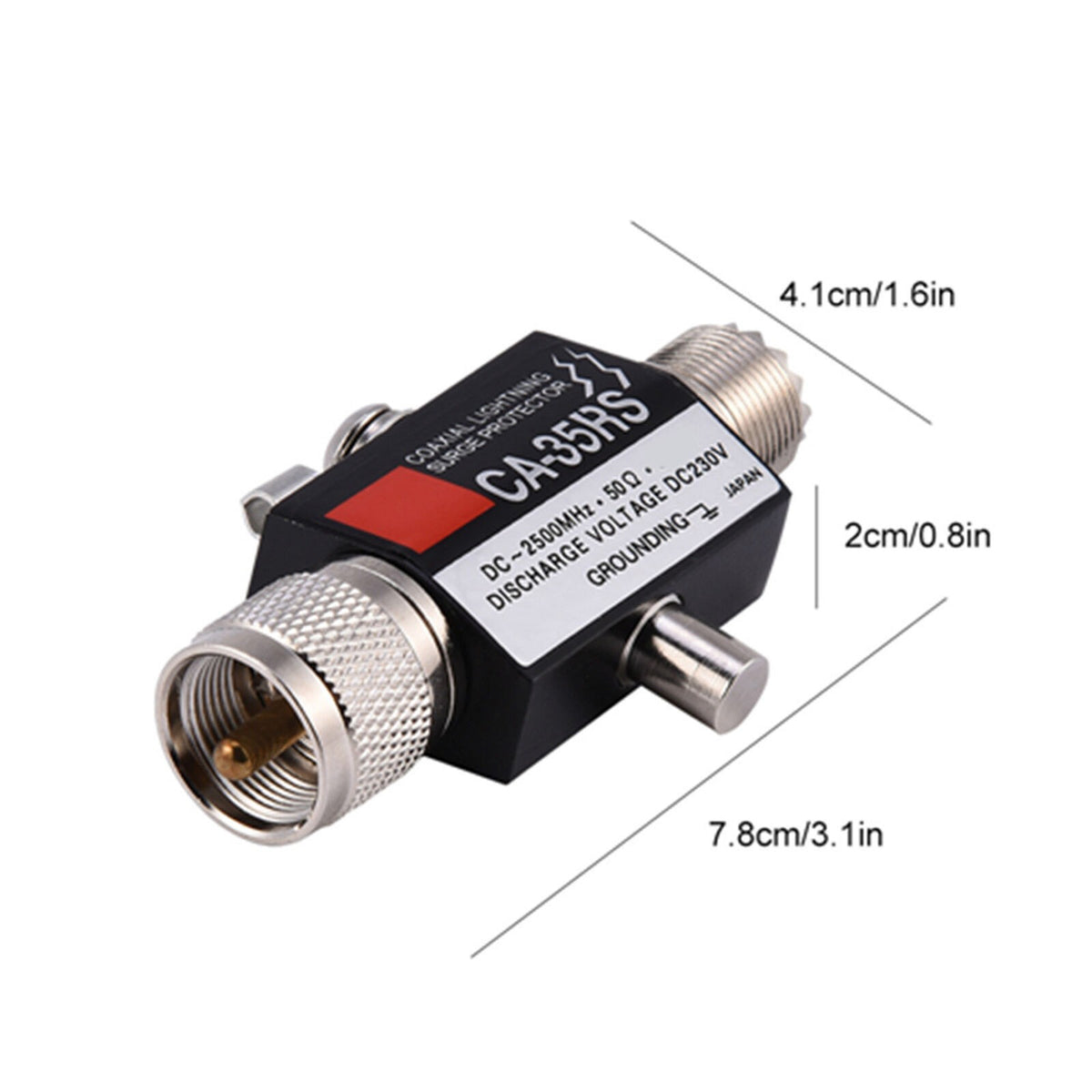

Size: 78 x 41 x 20mm / 3.1 x 1.6 x 0.8in
Package weight: 105g
Package List:
1 x Coaxial Lightning Surge Protector
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
