Features:

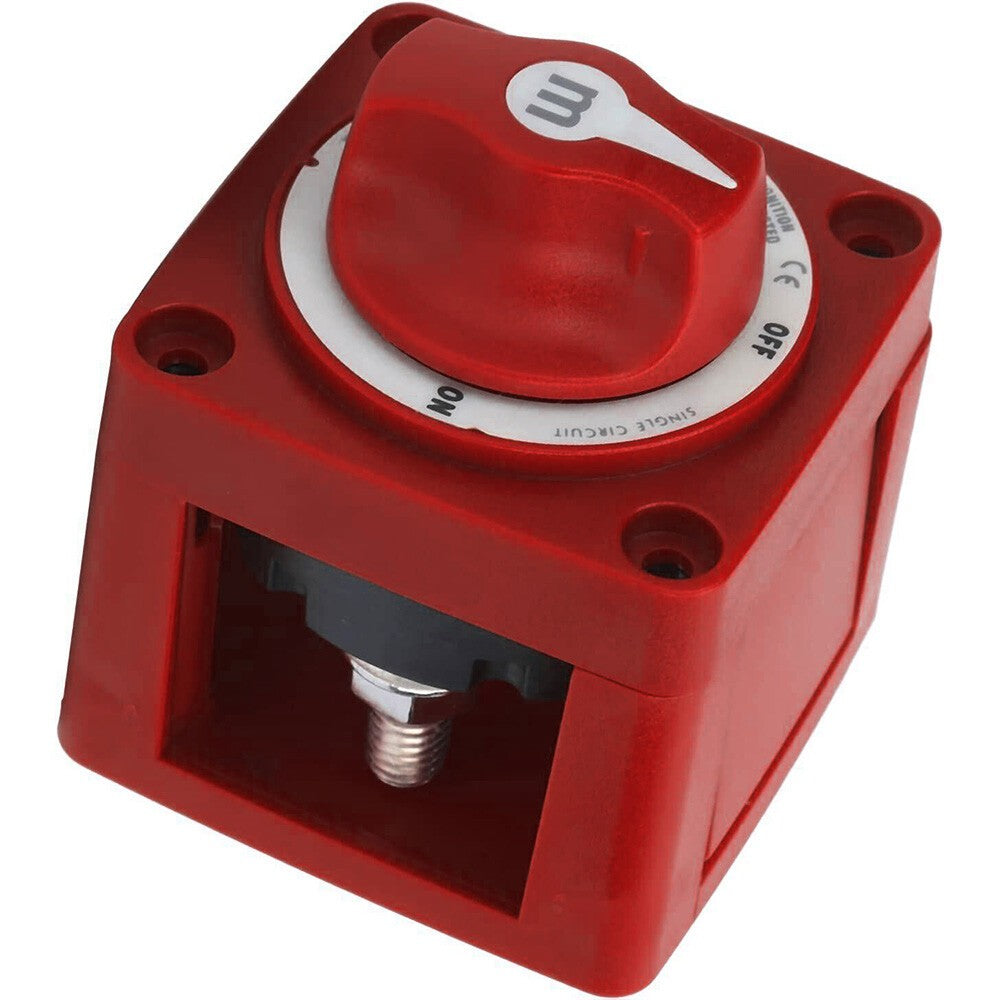

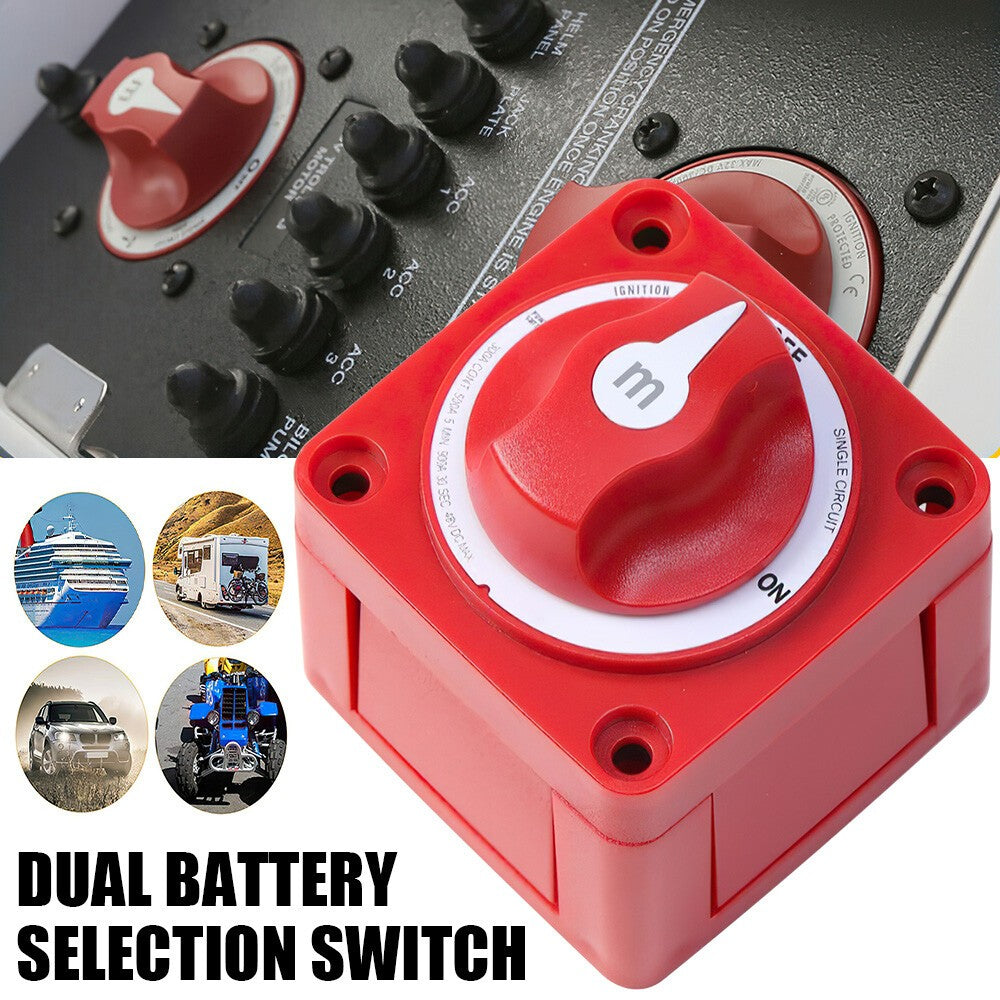

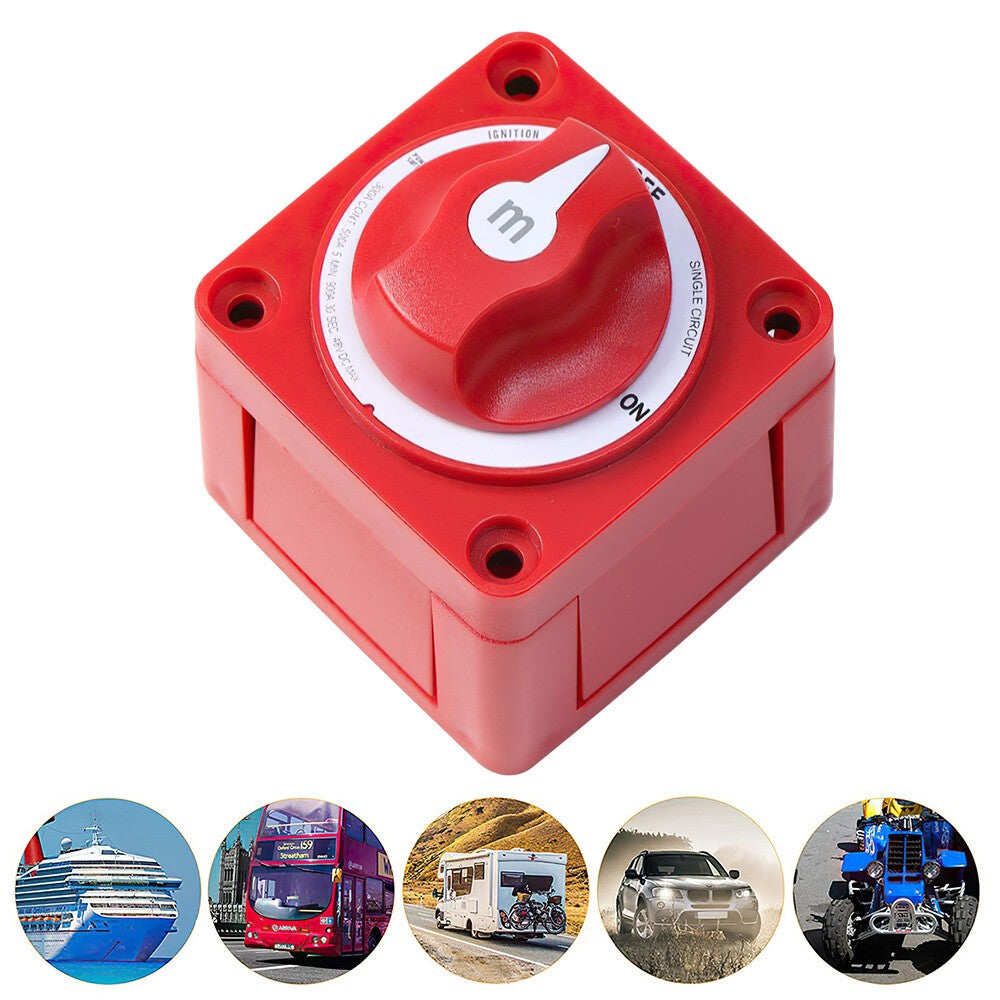

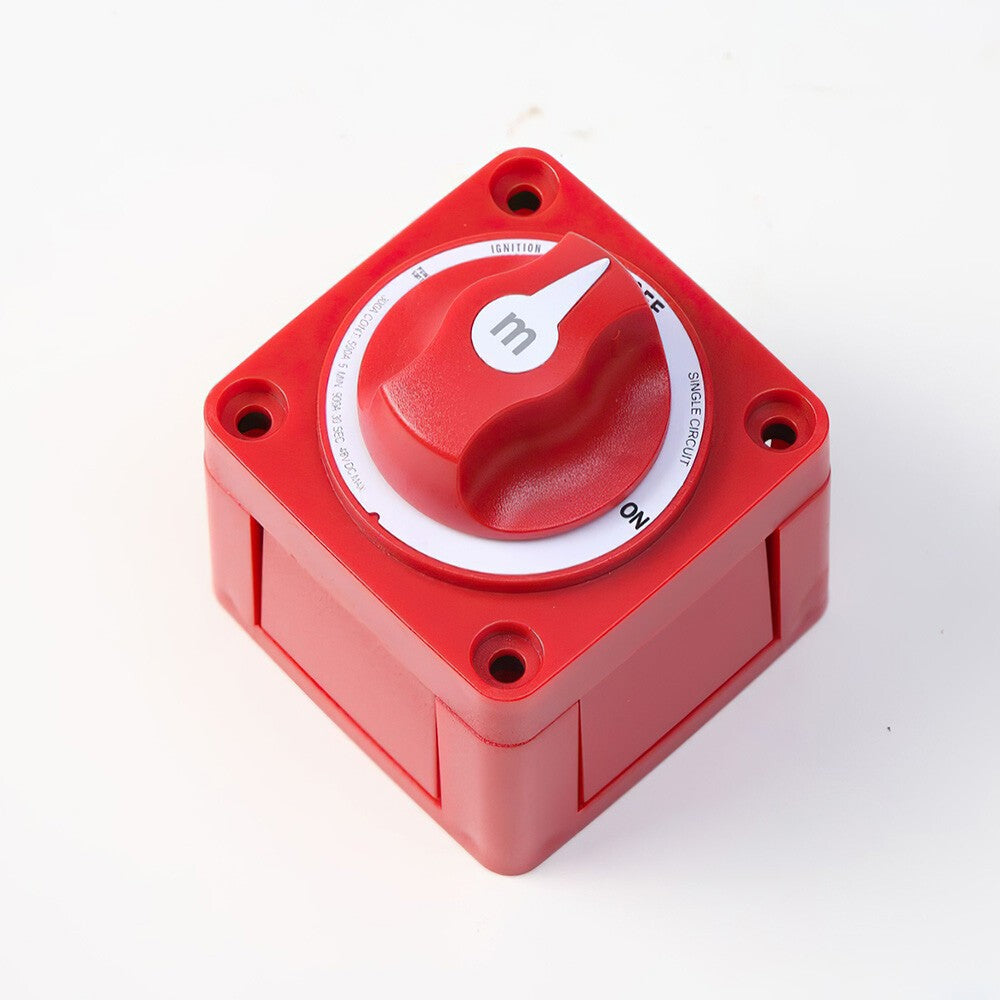

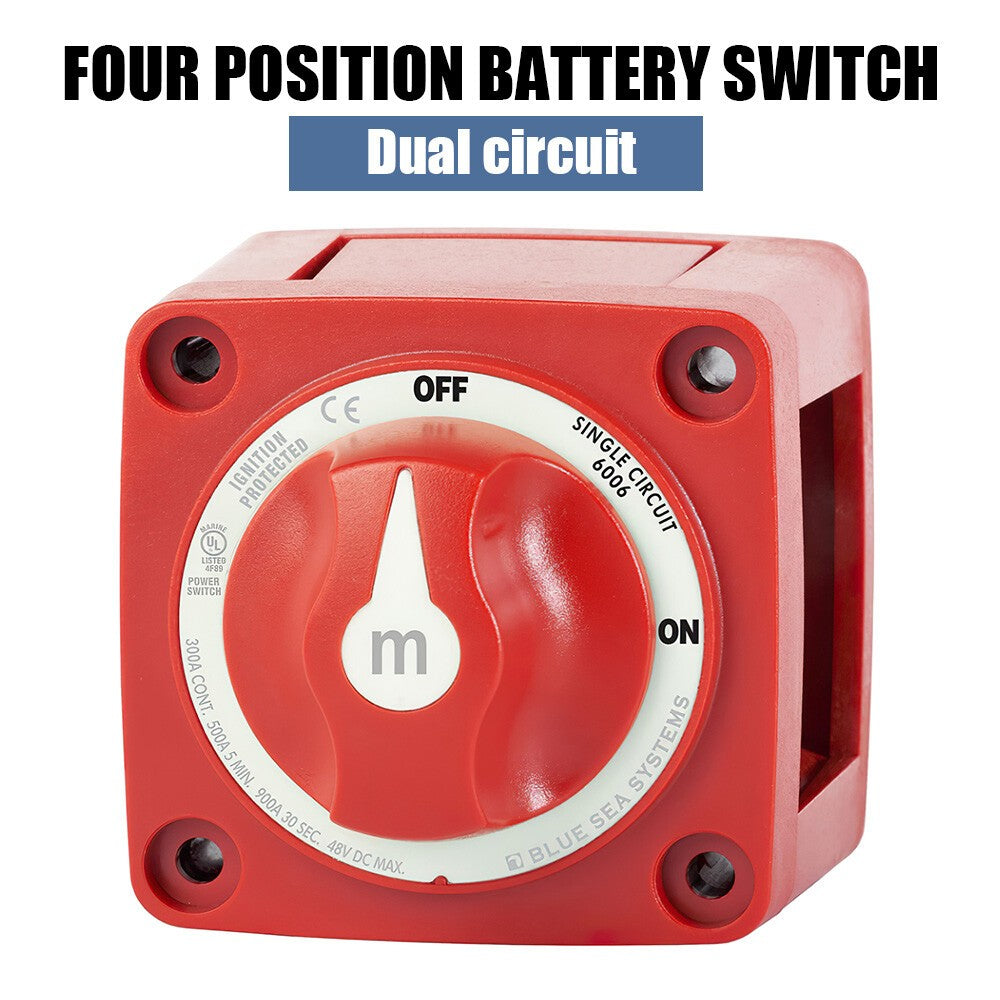

1.Battery Switch m-Series ON/OFF with Knob, part number 6006, is a Single Circuit ON-OFF switch. Switches a single battery to a single load group
2.Fits for low amperage battery switch hole patterns

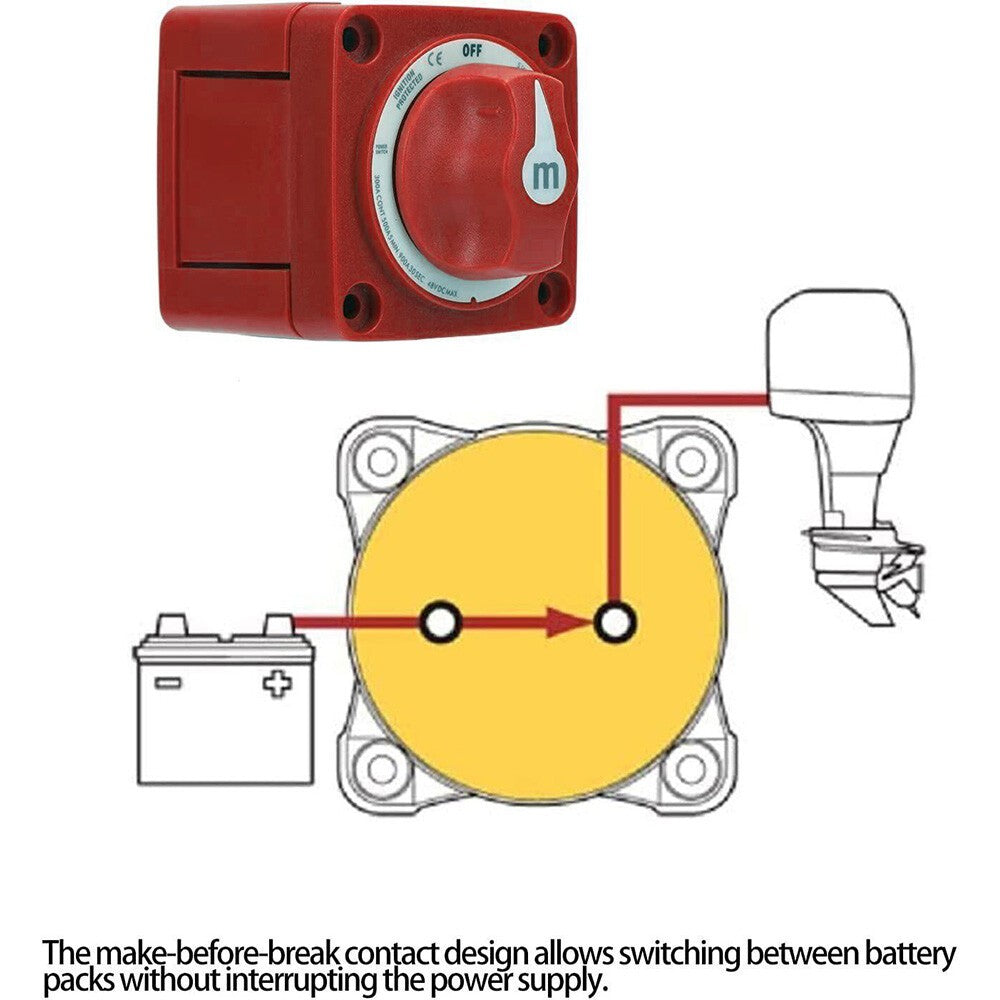

3.Make before break contact design allows switching between battery banks without power interruption

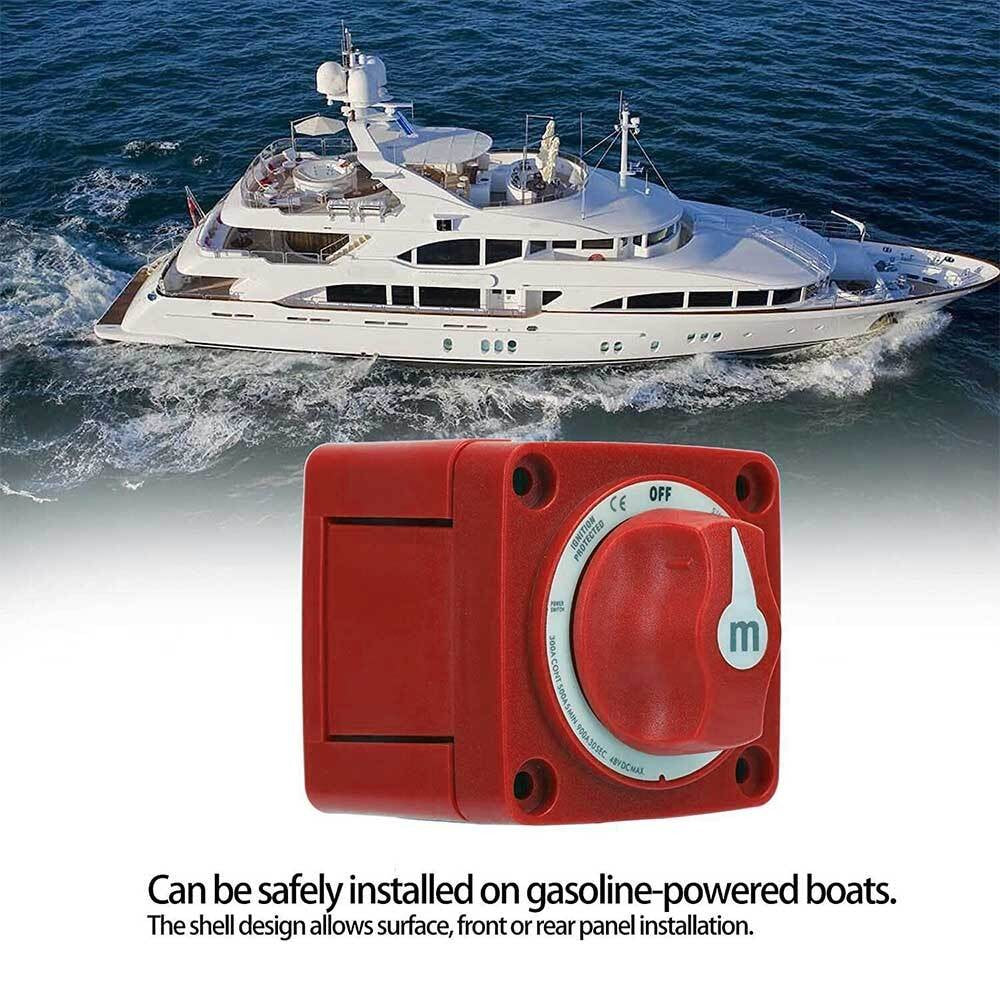

4.Ignition protected, safe for installation aboard gasoline powered boats

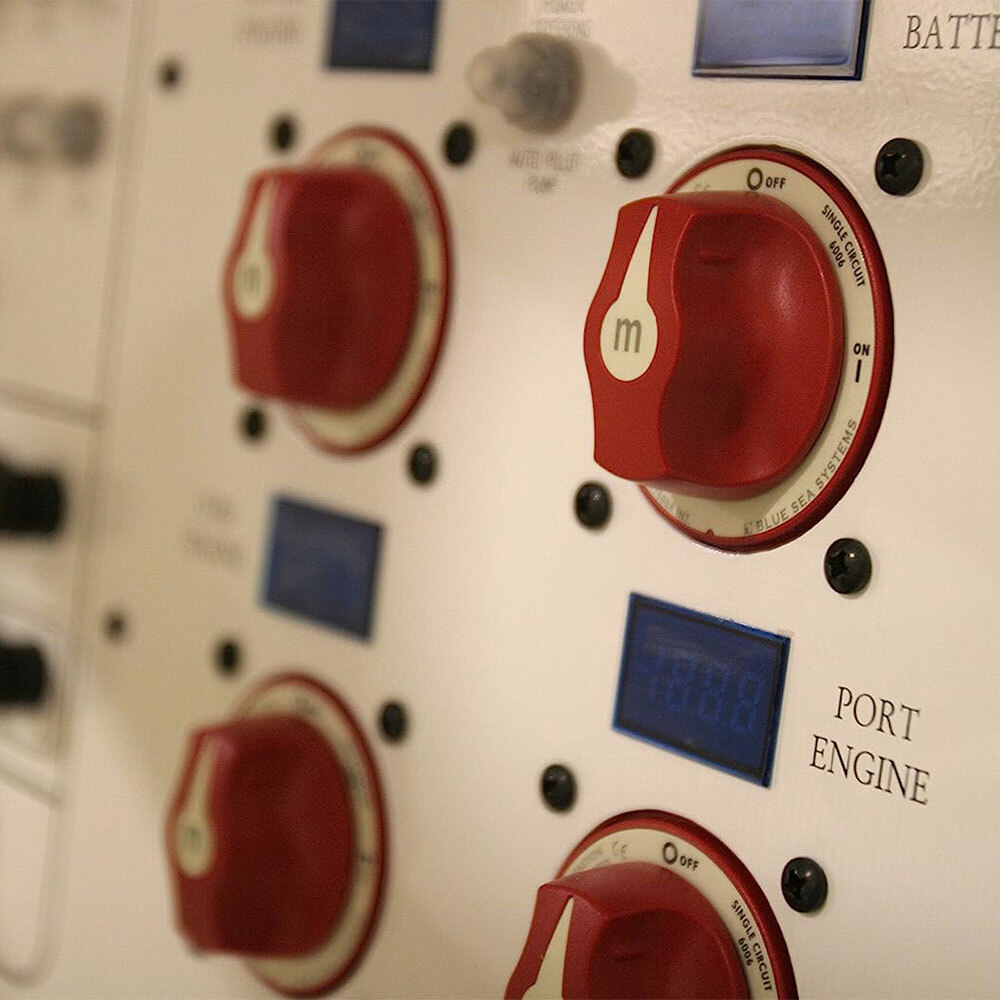

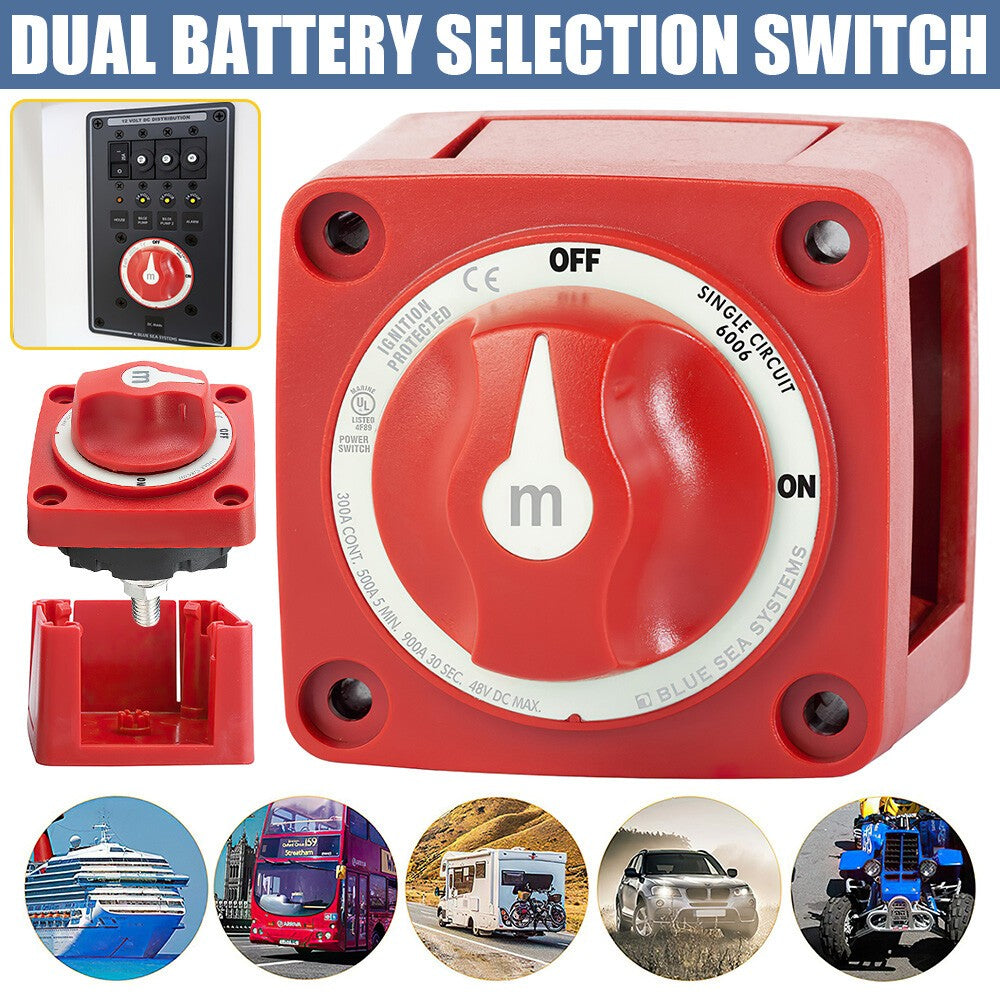

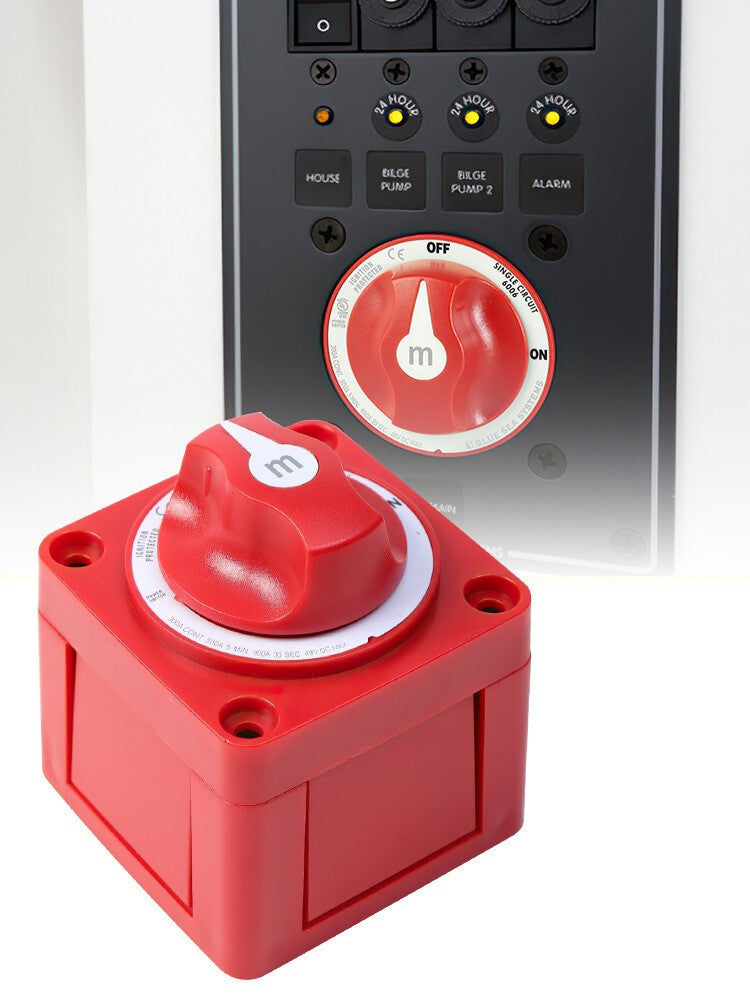

5.Case design allows surface, front panel, or rear panel mounting

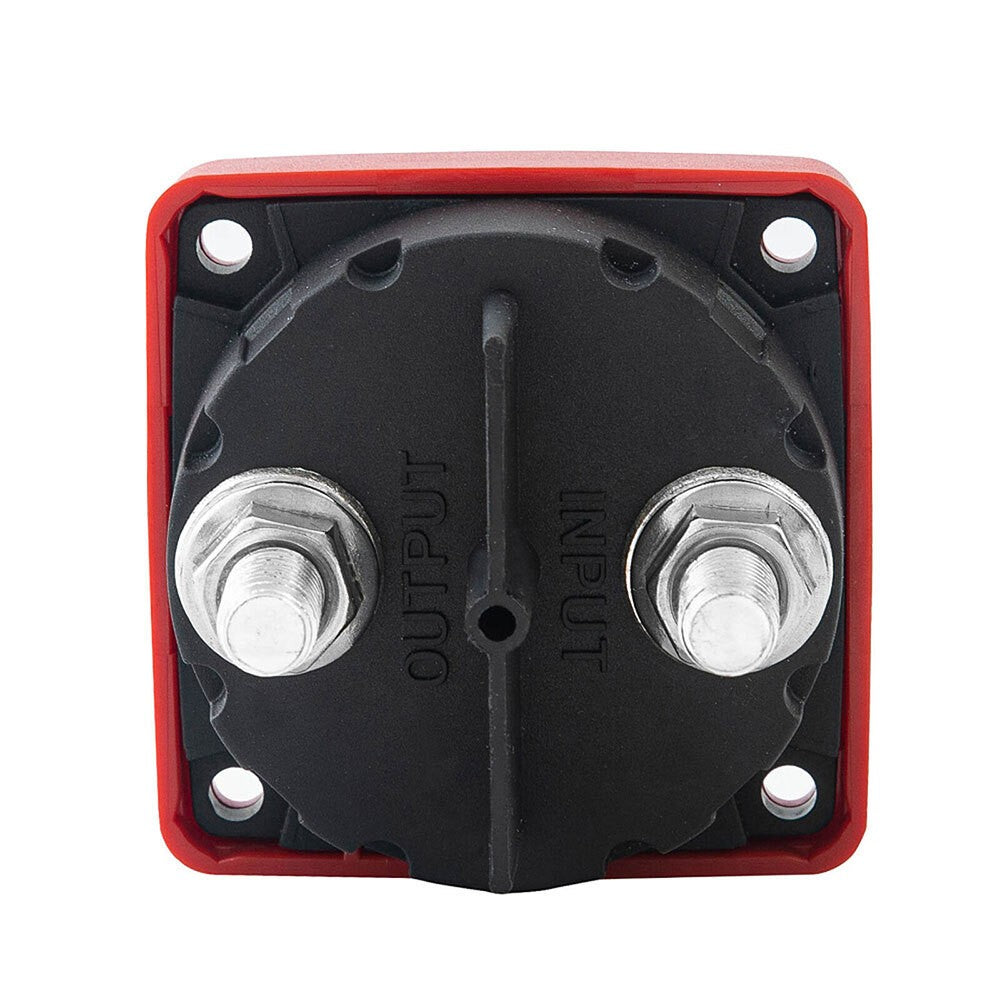

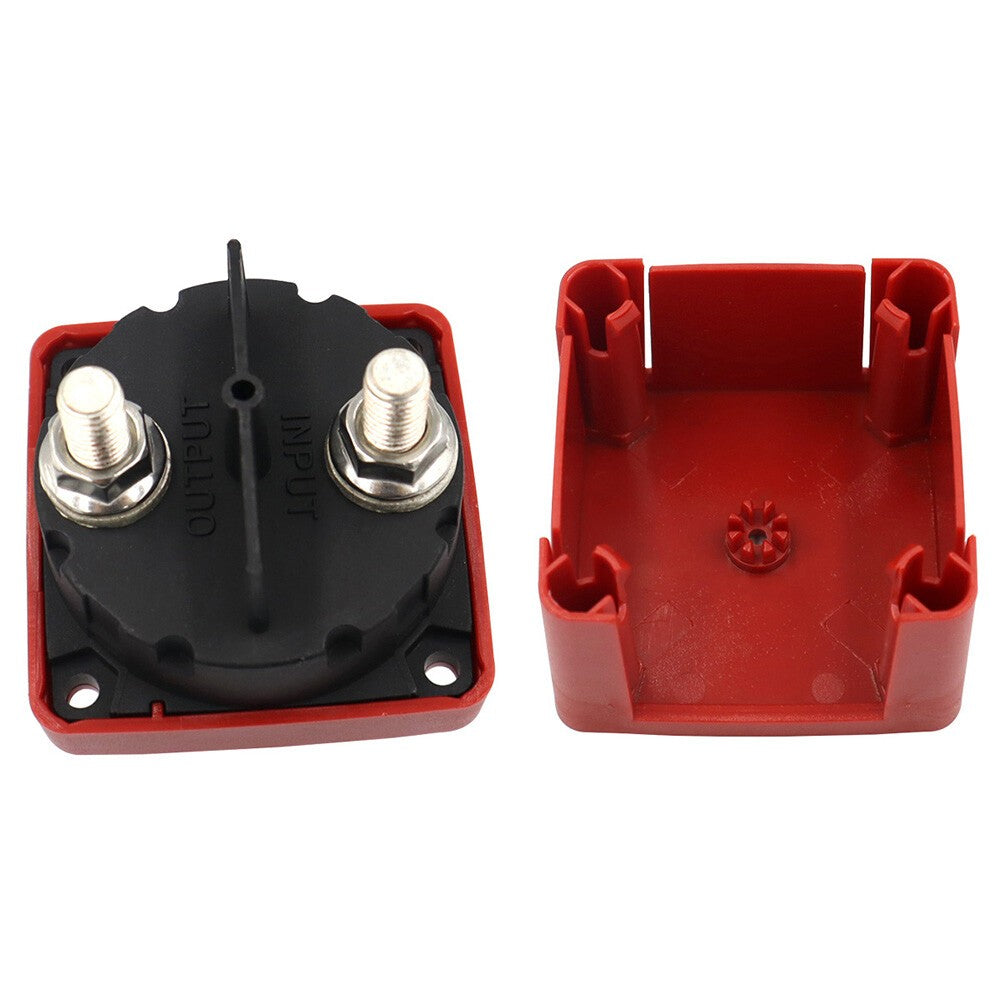

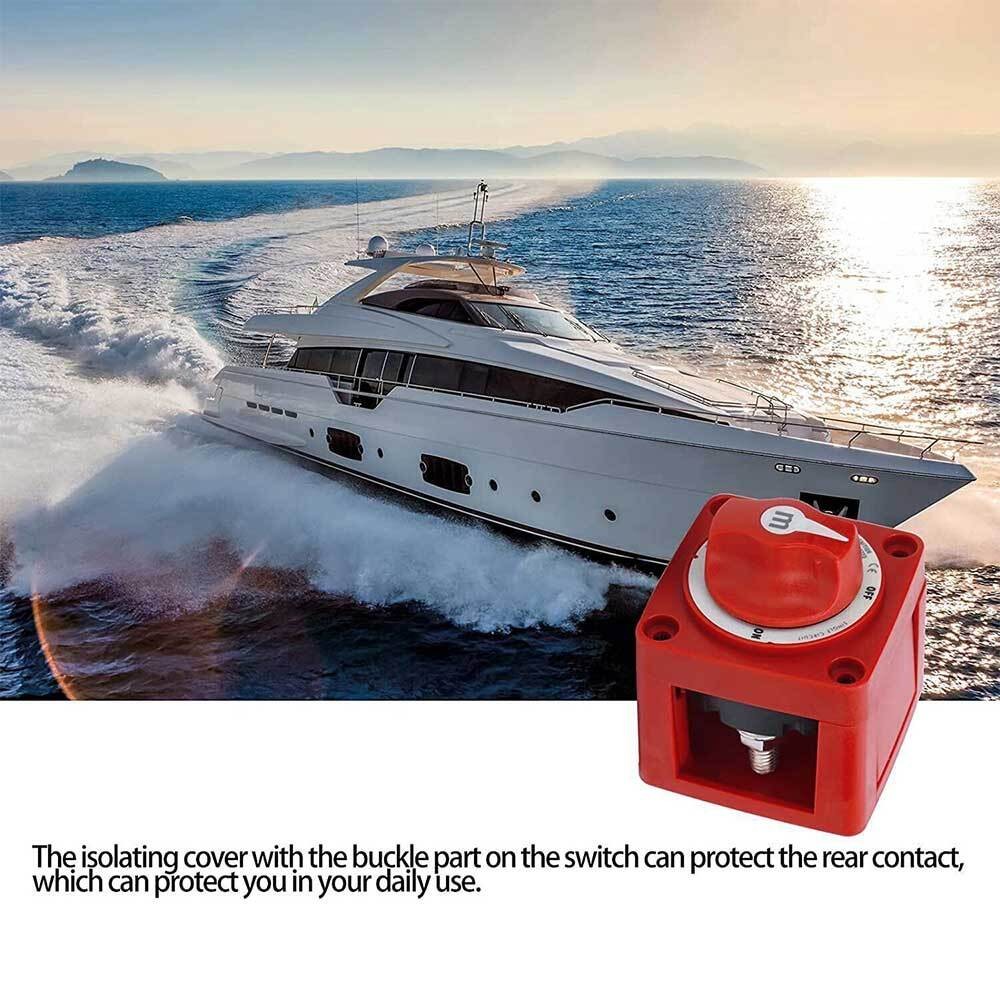

6.Isolating cover with snap-on sections protects rear contacts
7.300A Continuous Rating - 45% higher than standard switches
8.Continuous Rating: 300A, Maximum Voltage: 48V DC
9.Luminous label for low light reading
Specifications:
Type: Battery Switch

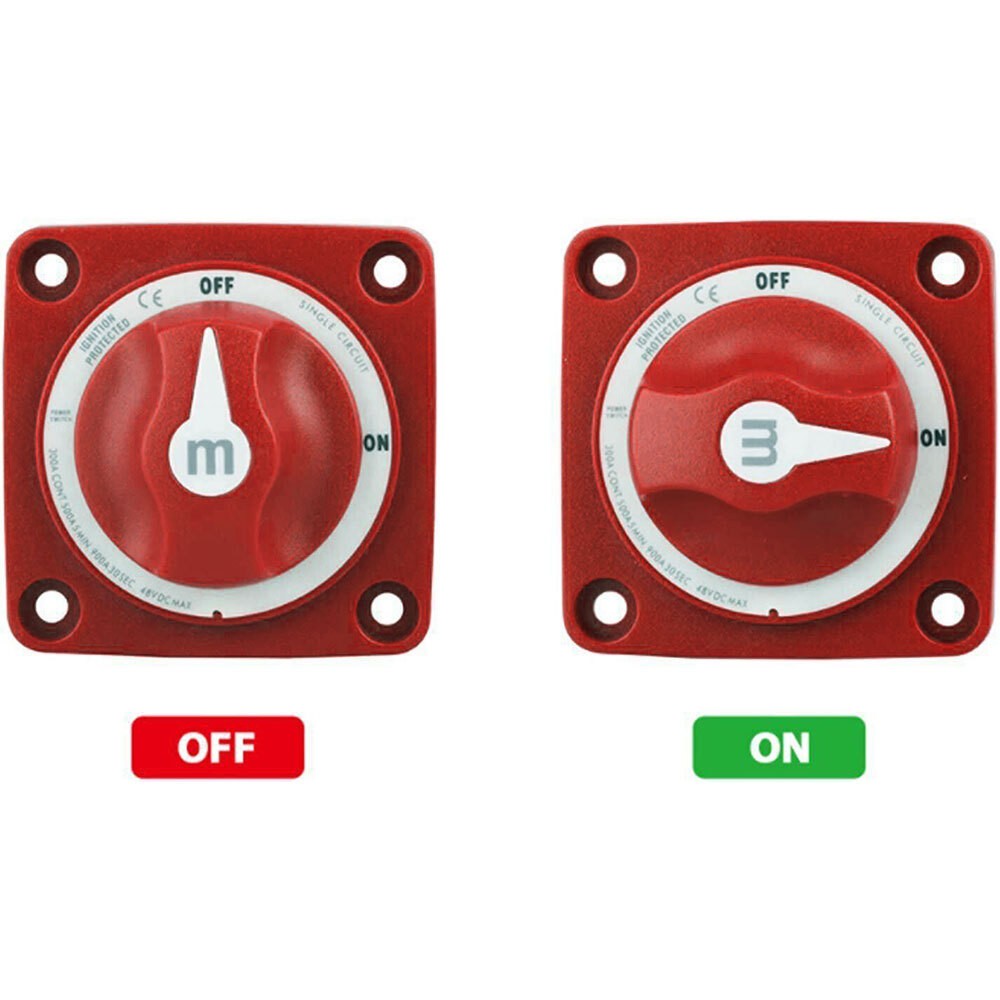

Switch Type: Single Circuit ON-OFF
Color: Red
Maximum Voltage: 48V DC
Continuous Rating: 300A
Intermittent Rating: 500A (5 min)
Cranking Rating 10 sec: 1500A
Cranking Rating 1 min: 775A
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm sq)
Terminal Stud Size: 3/8″ – 16 (M10)
Alternator Field Disconnect: No
Battery Inputs: 1
Mounting Holes: #10 Screw
Weight: 0.65lb (0.29 kg)
Package List:
1 x Battery Switch
Note:
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
