Title:（silver
Oil Filter Cooler Sandwich Adapter Plate Aluminum Kit AN-10 & AN8
Application:
Universal - M20 x 1.5 and 3/4-16 UNF Threading Engine Blocks and Oil Filters Only
(Made For Most Japanese Vehicles - Please Check Your Vehicle's Application)
Description:
100% Brand New Items, Never Used Or Installed

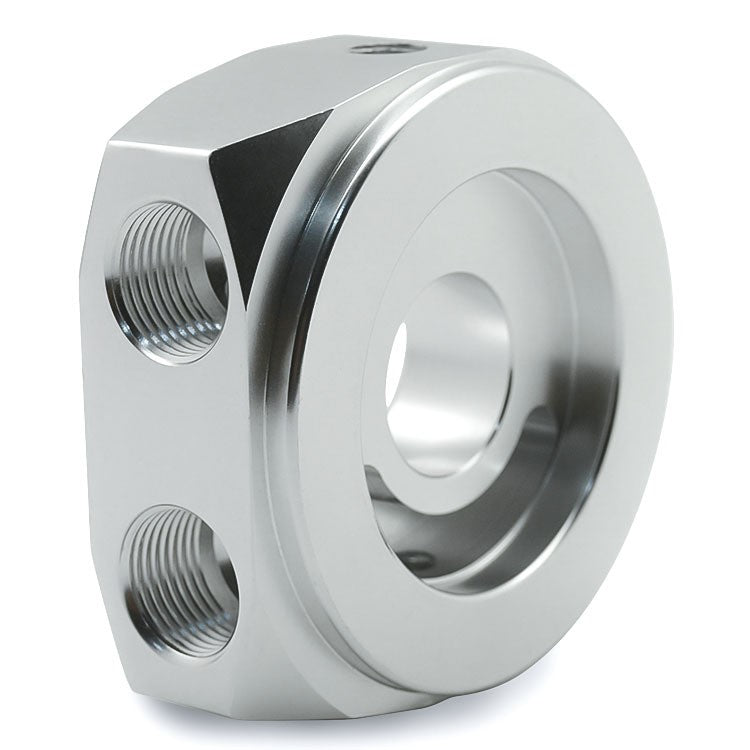

Universal Aluminum Oil Filter / Cooler Relocation Adapter Plate
CNC Machined From AL6061-T6 Billet Aluminum With An Anodized Finish
Mounts Between The Block and Oil Filter; Provides In and Out Ports With Connections For 10AN Fittings
Center Adapter: M20 x 1.5 and 3/4 x 16 UNF Thread; Supports Oil Filters That Has M20 Thread and M20 Block Fitting
10 AN Ports: Running Oil For Turbo / Oil Cooling
1/8 NPT Ports: Running Sensors For Gauges, Sensors, Or Other Accessories
Inlet / Outlet Size: 10 AN & AN8(you could exchange the size you want )
Thread Size Of Sensor Insertion: 1/8 NPT
Bypass Port Mounting Nut: 3/4 x 16 UNF and M20 x 1.5
No Installation Guides Are Included, We Highly Recommend To Seek Professional Installation
Note: Does not include sensors or oil lines. Please make sure of sufficient room of your mounting location in the oil filter bay

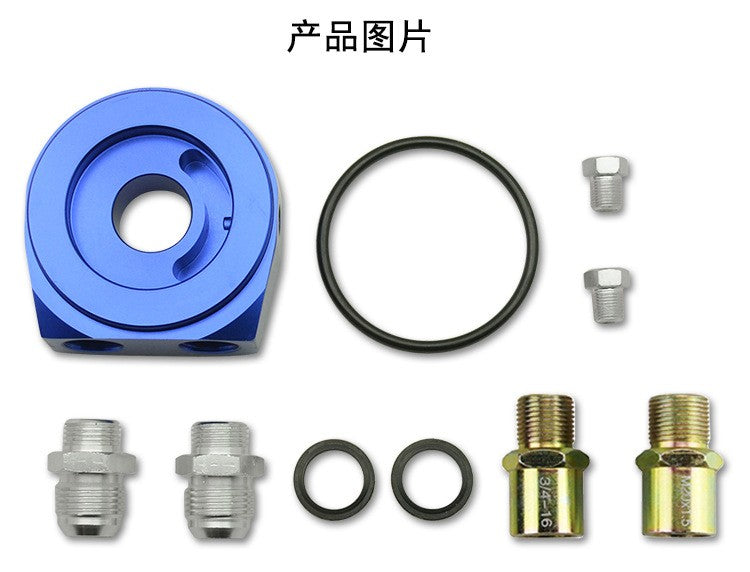

Include:
1x Oil Filter Sandwich Adapter
1x M20 x 1.5
1x 3/4 x 16 UNF
2x 10AN Fitting
2x 8AN Fitting
2x 1/8 NPT Plug
