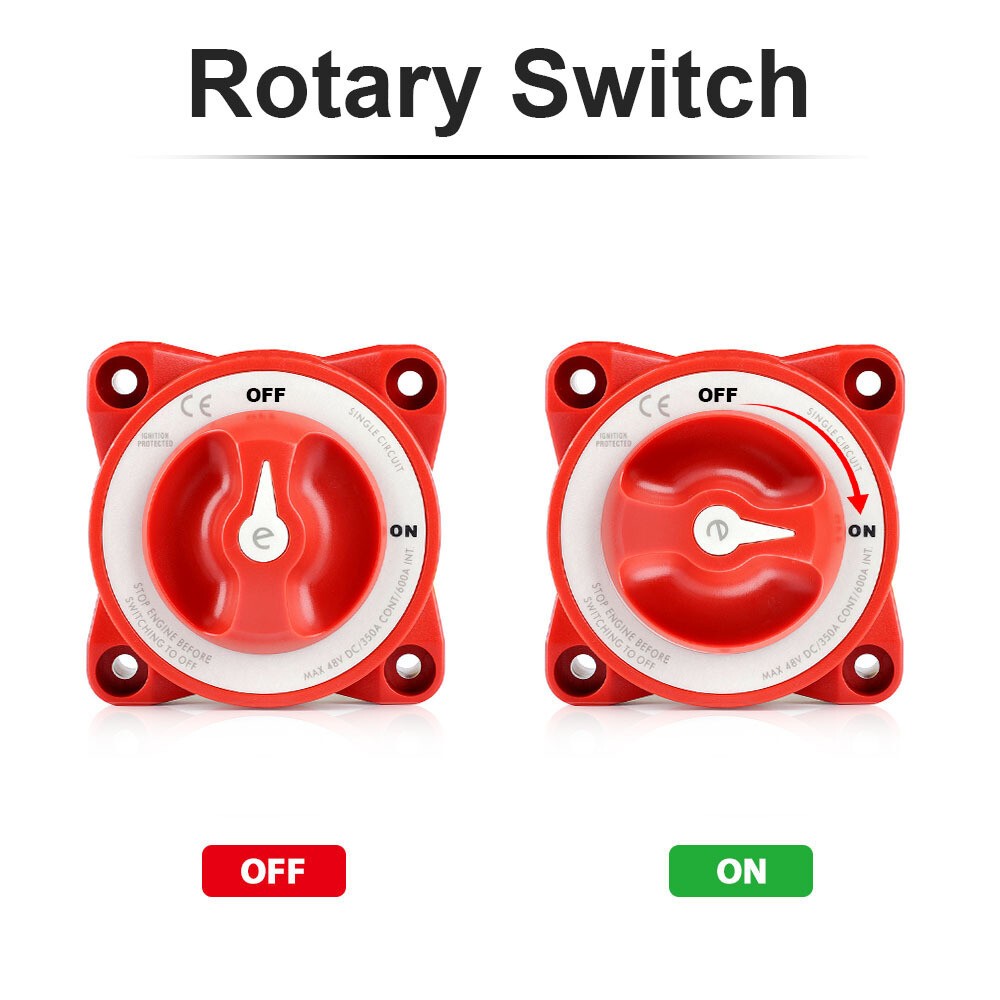

Single Circuit ON-OFF. Switches a single battery to a single load group
Ignition protected—safe for installation aboard gasoline powered boats
IP66 waterproof, ISO 8846 and meets ABYC requirements
Terminal Stud Size: 3/8" - 16

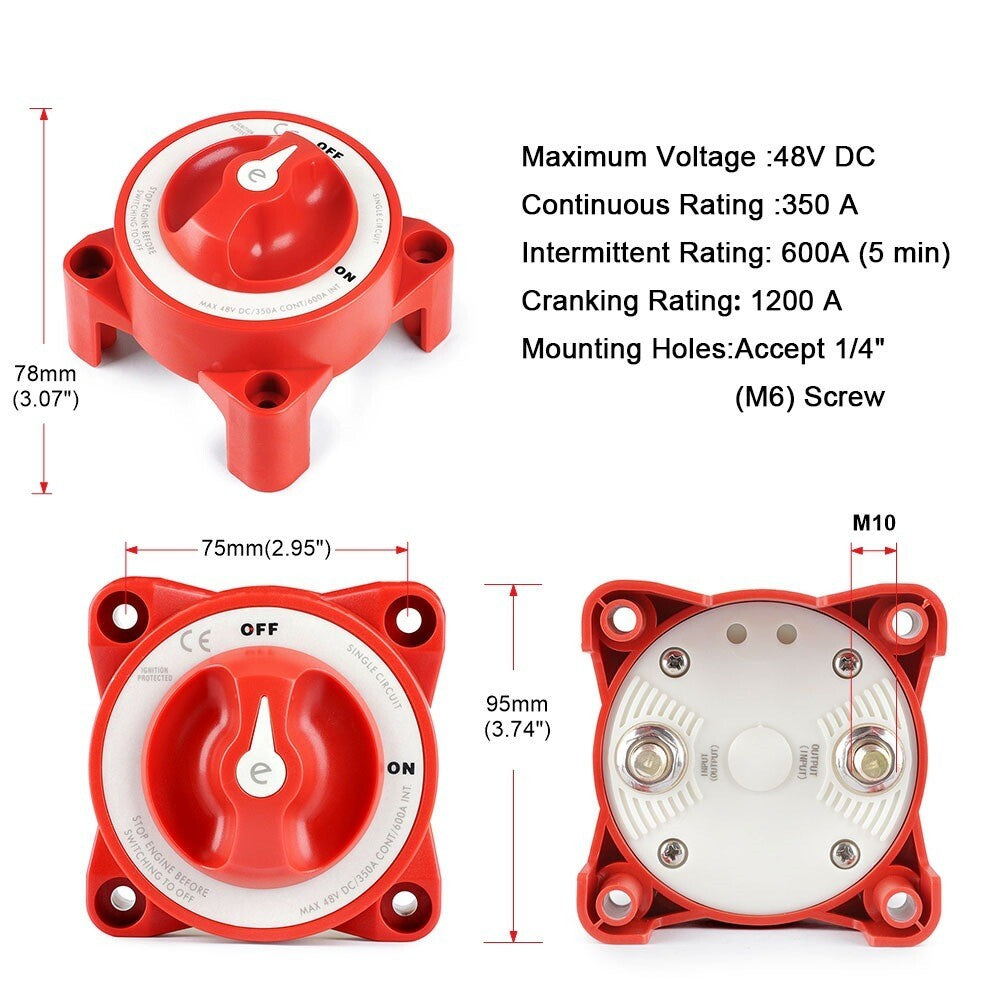

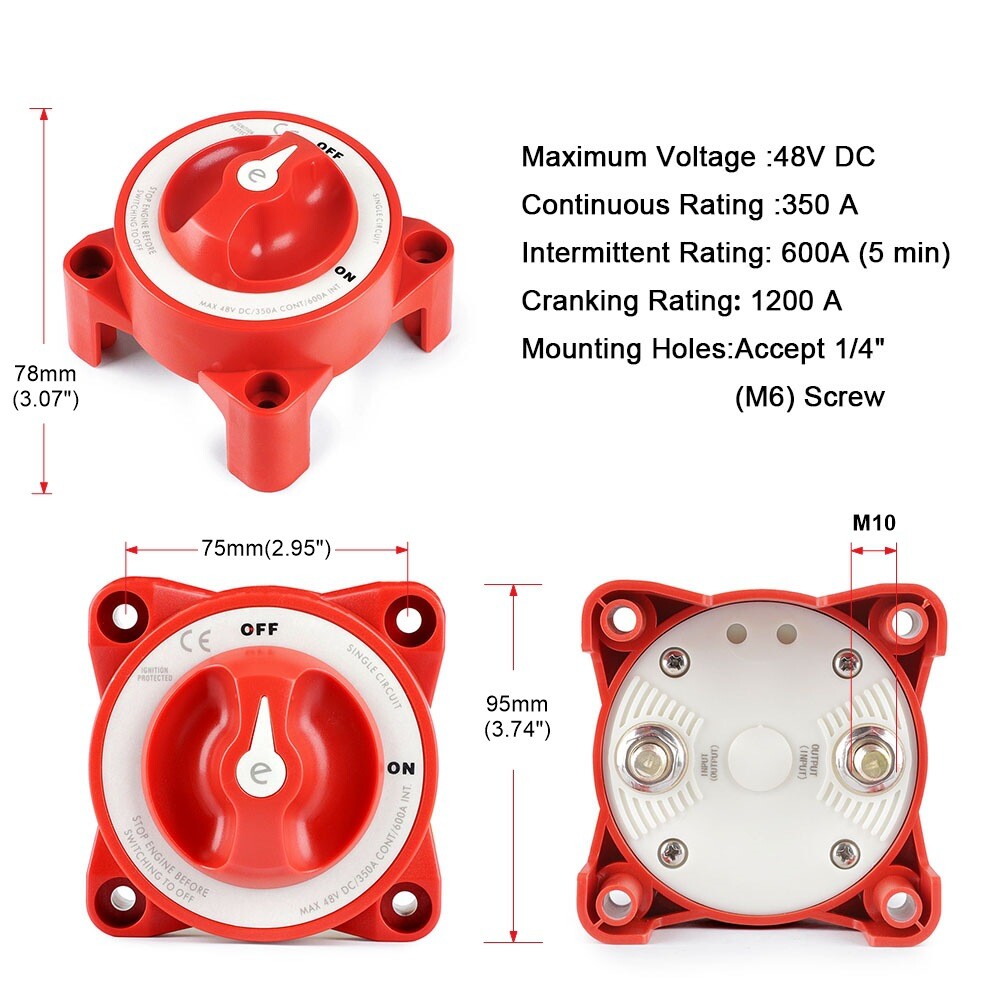

Continuous rating: 350A, Maximum voltage: 48V DC
Details

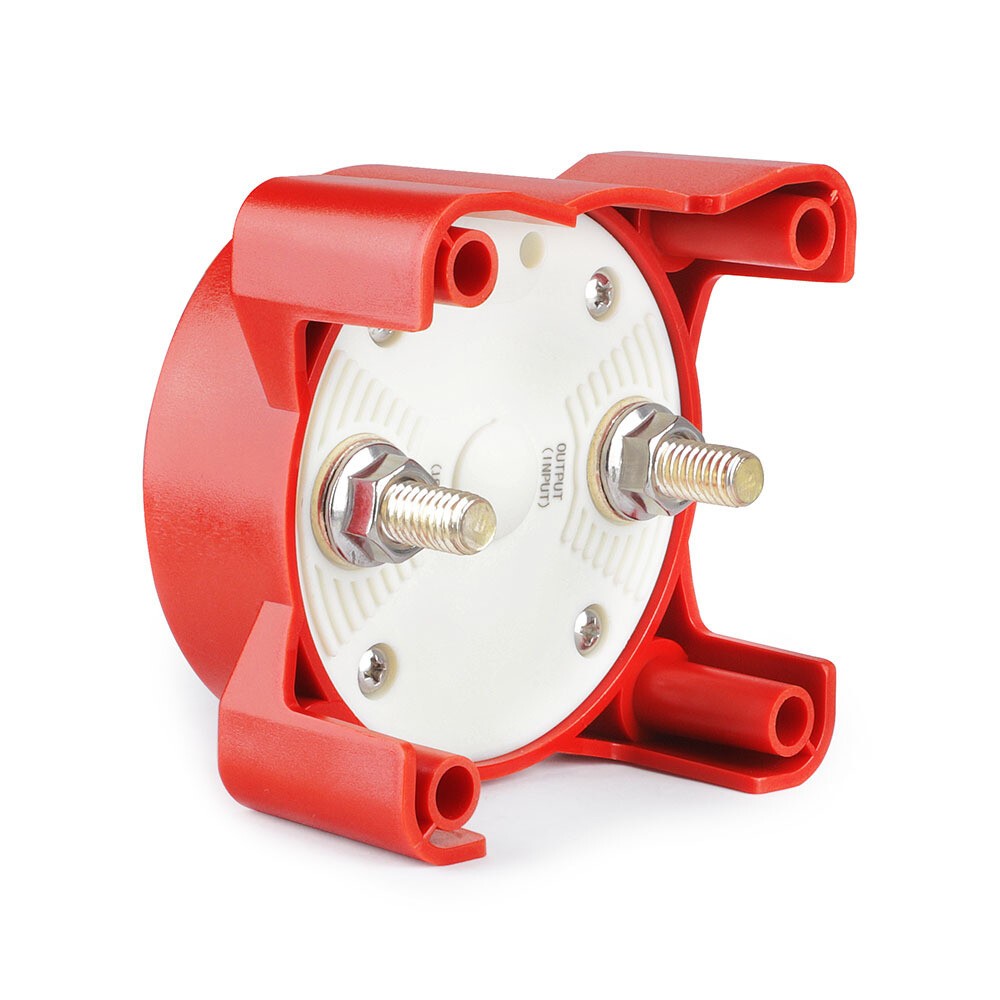

Tin-plated copper studs for maximum conductivity and corrosion resistance
Accepts up to 4/0 AWG battery cables
Studs accepts 3/8" (M10) ring terminals
7/8" (22mm) stud length accepts multiple cable terminals
Blue Sea Systems one-piece terminal stud design never loosens over time
Fits most Perko and Guest low amperage battery switch hole patterns
Case design allows surface, rear, or front panel mounting options
Tactile indicator conveys knob position by feel

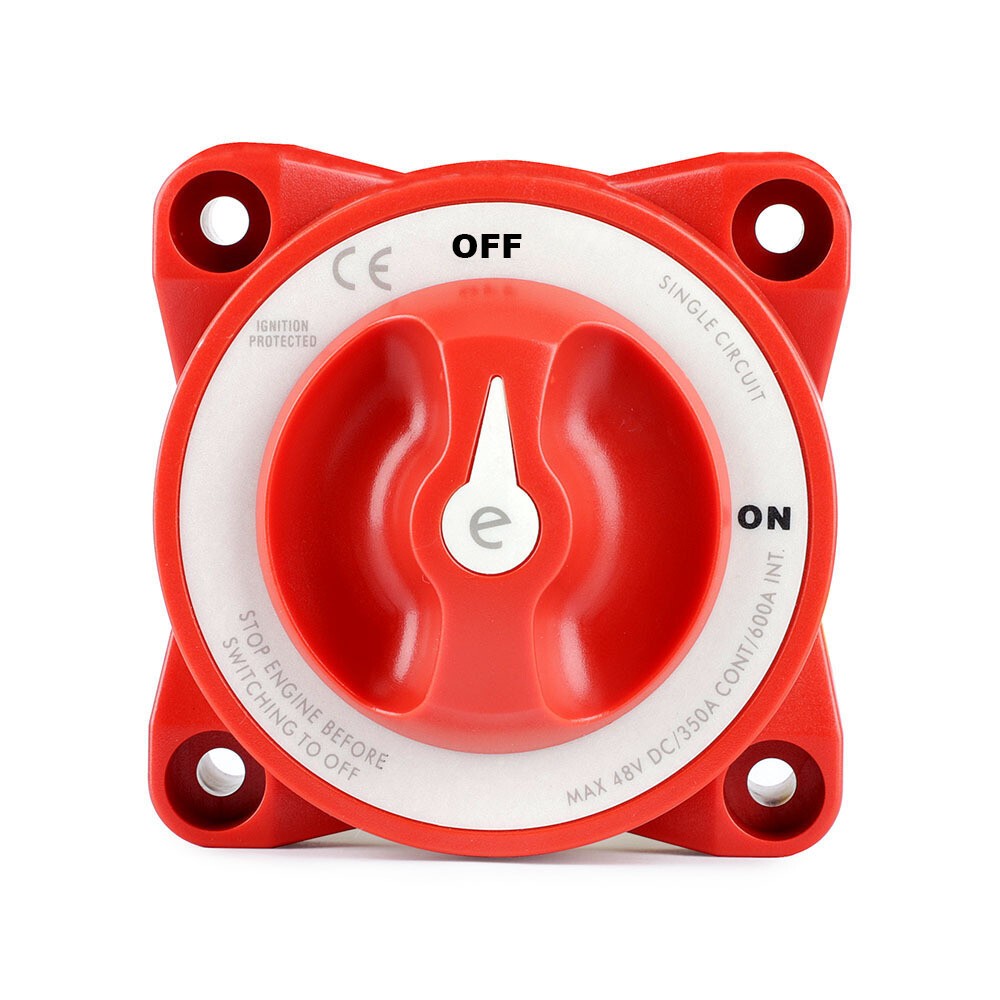

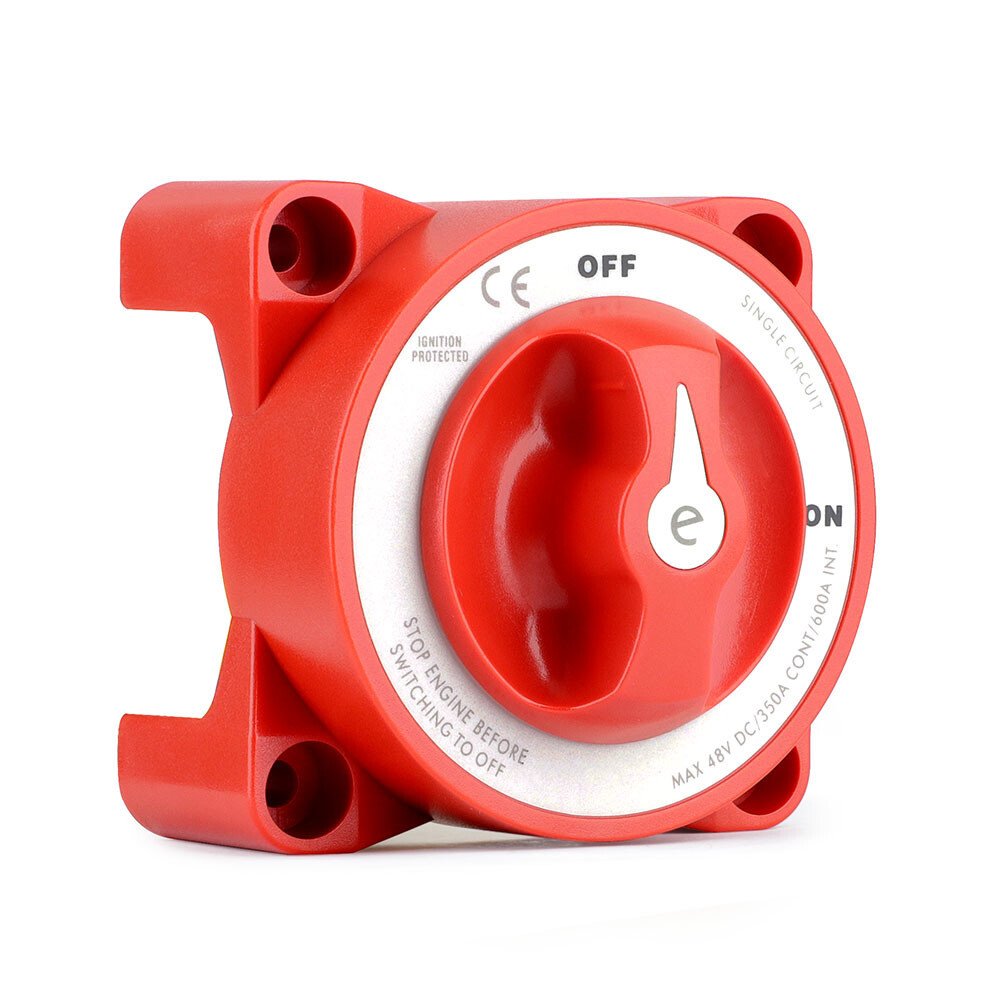

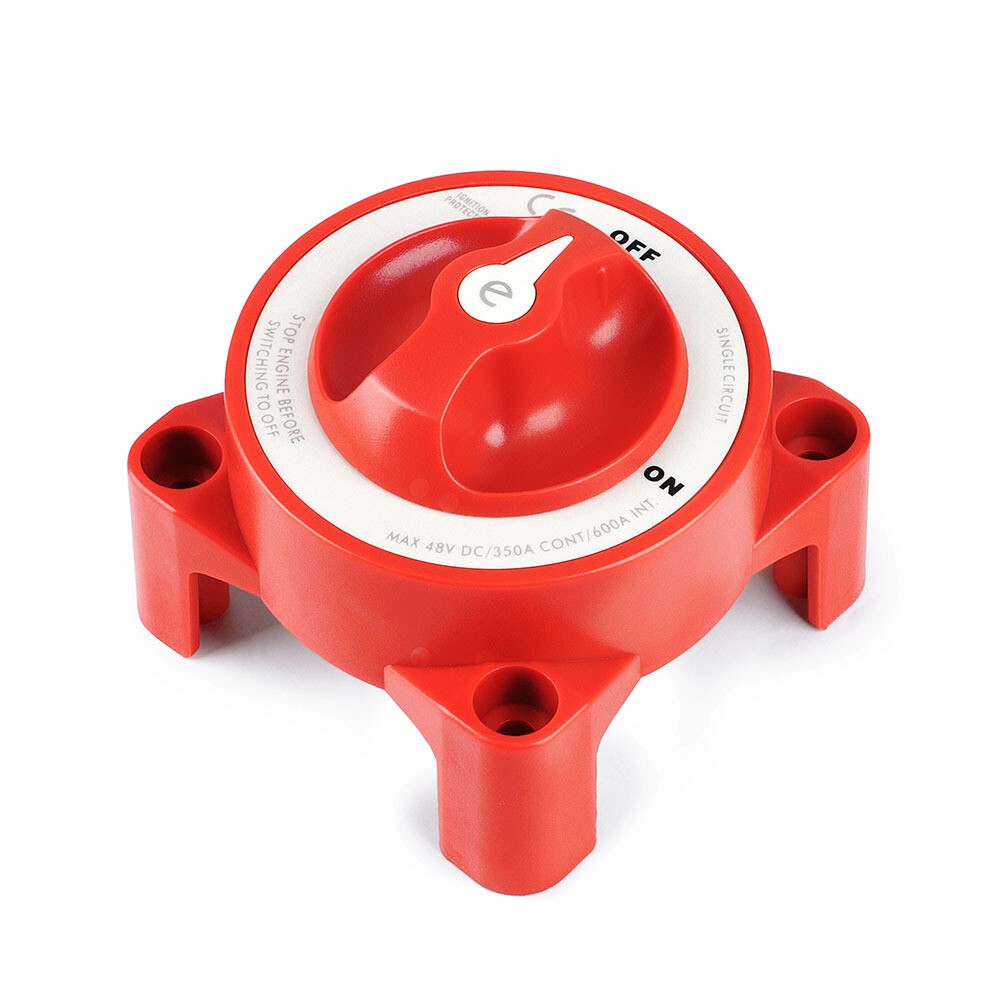

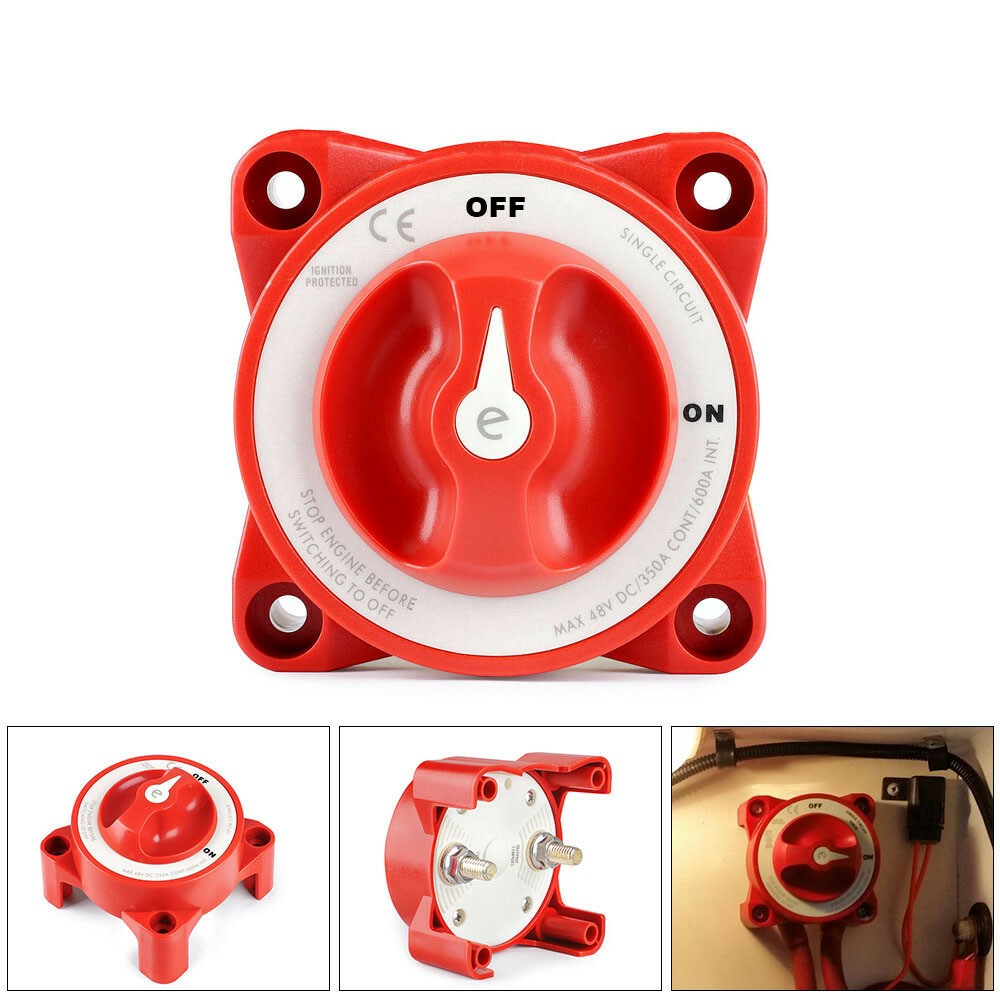

e-Series On Off Battery Switch
Switches a single battery to a single load group
Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting
Operation Mode：ON-OFF-ON
Current Rating：1 Microamps
Operating Voltage：48 Volts
Contact Type：Normally Open
Connector Type：Idc
Switch Type：Temperature Switch
Terminal：SPDT
Material：Metal
Item Dimensions LxWxH：2.9 x 6.38 x 8.63 inches
