Function:

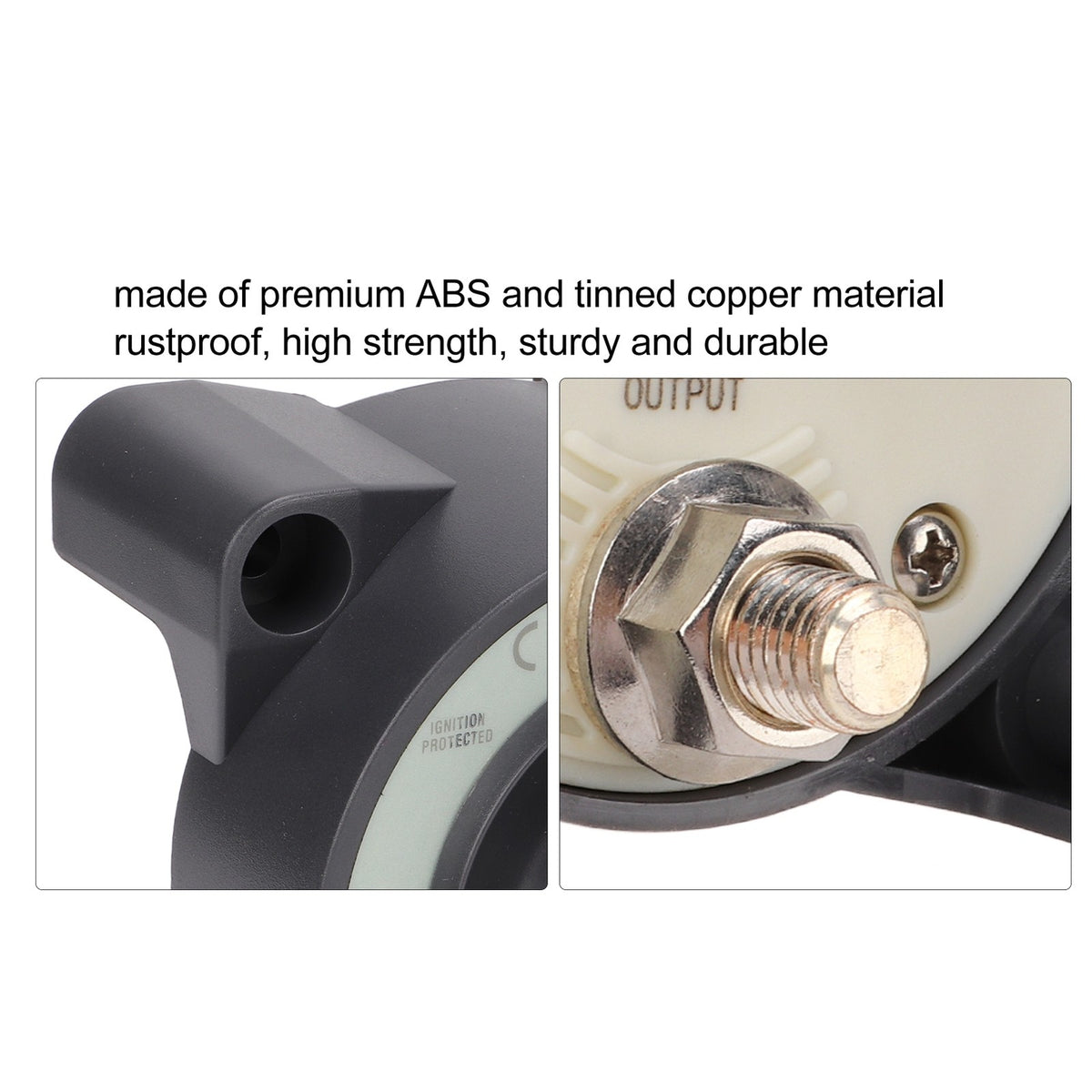

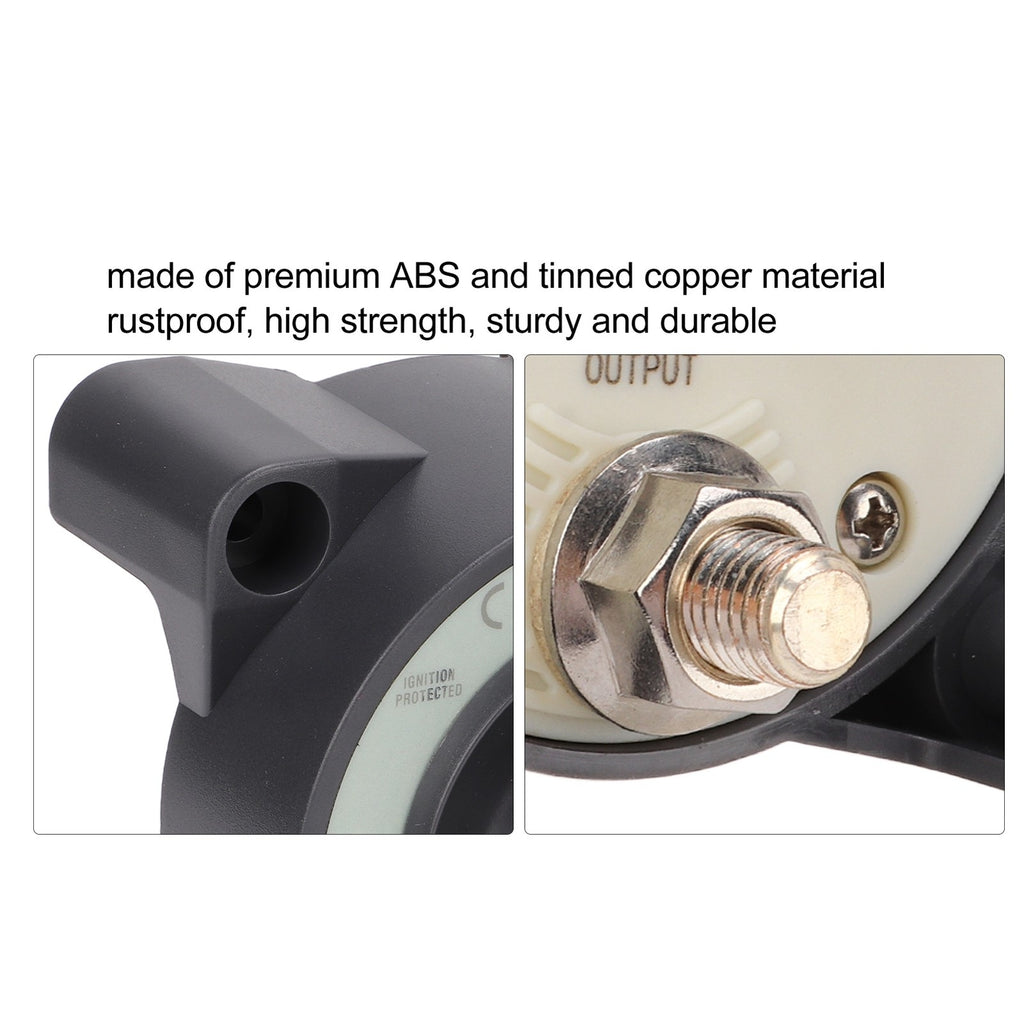

1. Premium Material: The battery switch is made of high quality ABS and tinned copper, anti-rust, high strength, sturdy and durable.

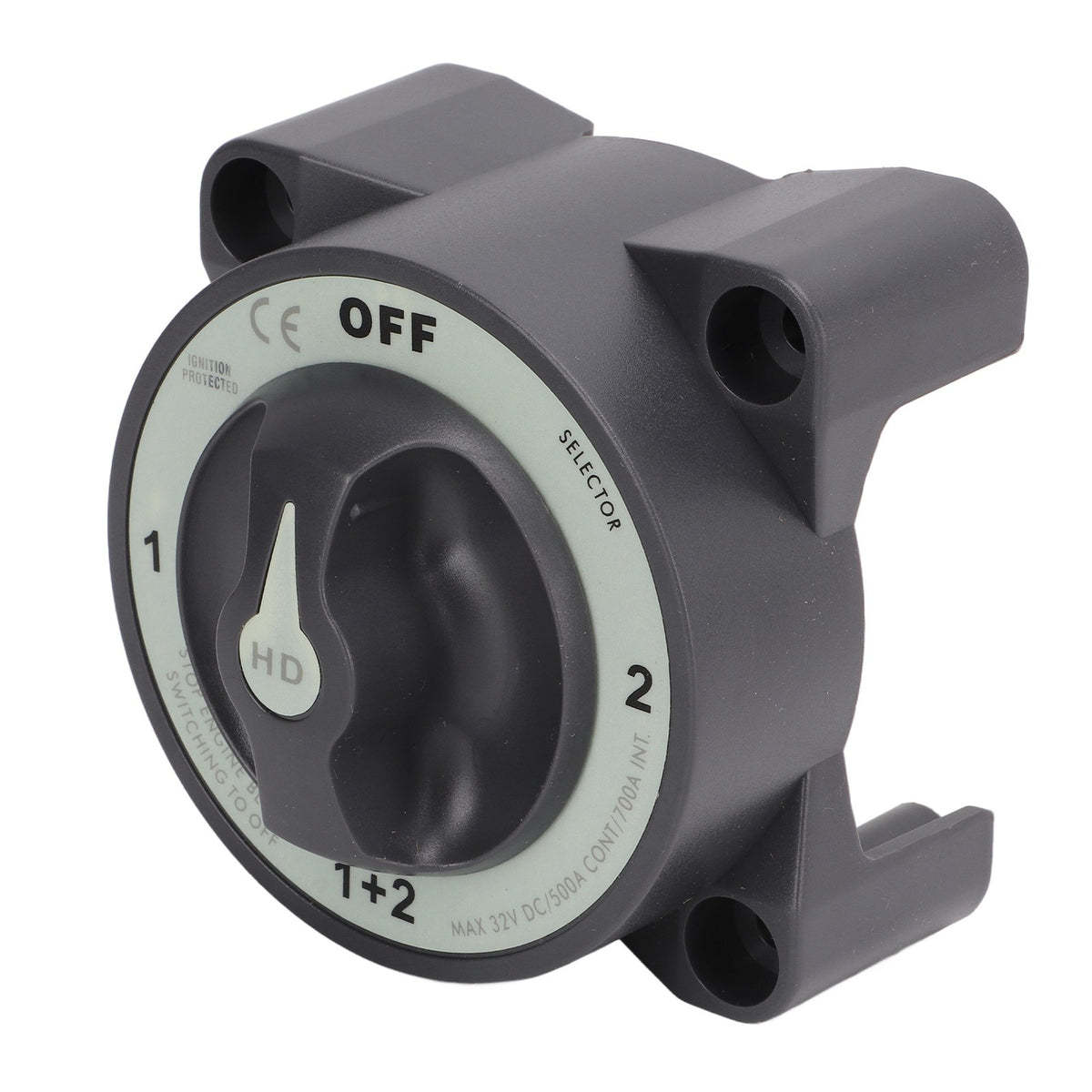

2. Professional design: Professional manufacturing, exquisite workmanship, high resilience, 4 positions (AUS-1-2-1+2), not easy to loose.
3. Excellent performance: The power kill switch has good electrical conductivity, IP66 waterproof, anti-ignition, stable performance and high reliability.
4. Function: The “close before open” contact design allows switching between battery banks without interrupting the power, with a continuous output of 500 amps.
5. Easy Installation: Installation is simple, mounting holes accept 1/4" screws (M6) and 1/2" terminal bolts (M12), convenient to use and save your effort.
< b>Specification:
Item Type: Battery Isolator Switch
Material: ABS, tinned copper
Switch positions: 4 (OFF-1-2-1+2)
Battery combination: Yes
Alternator field separation: No
Maximum voltage: 32V DC
Terminal Bolt Torsion: 220 in-lb (24.86 Nm)
Continuous power: 500 A
Intermittent power: 700 A (5 min.)
Starting power 10 seconds: 2750 A
Starting power 1 minute: 1150 A

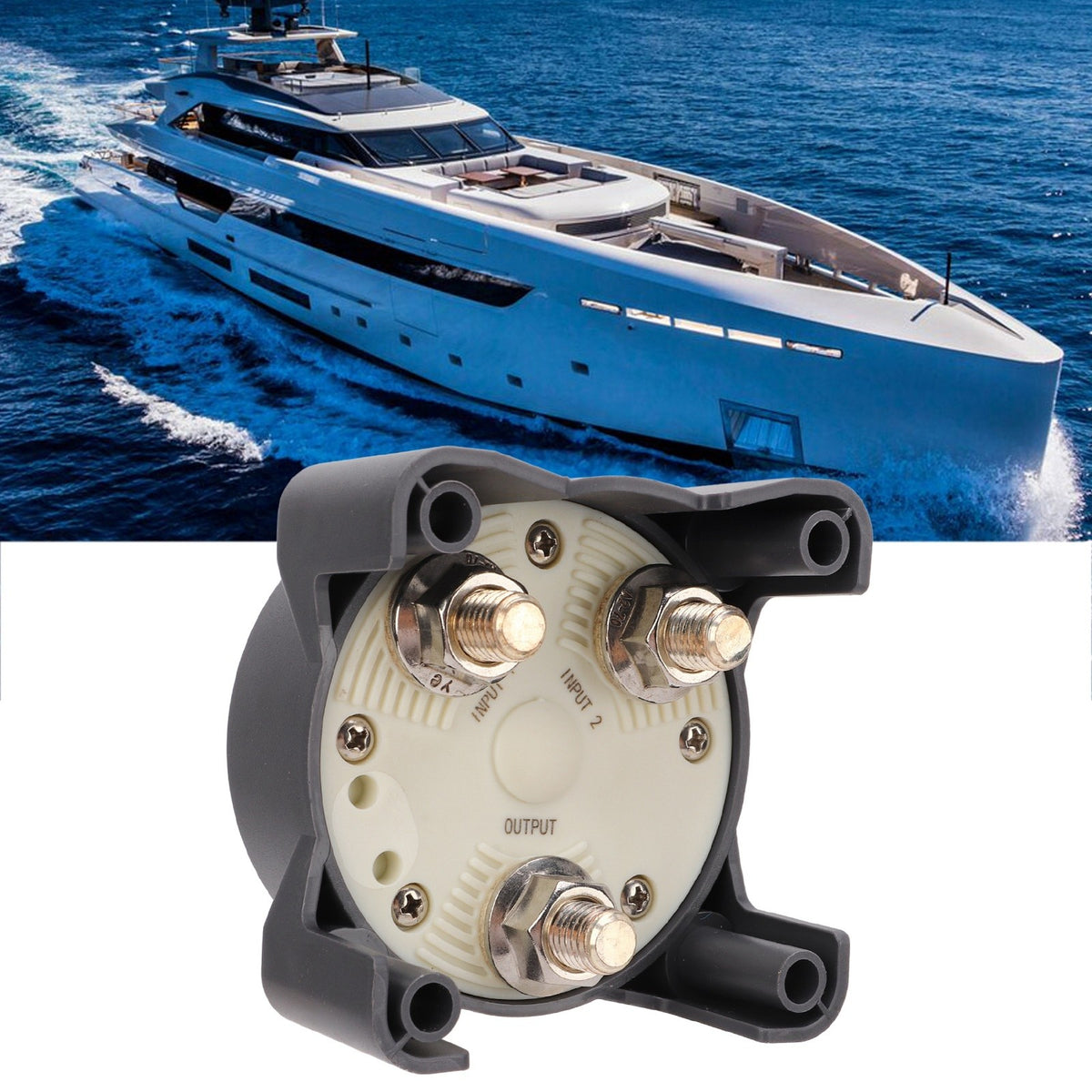

Battery inputs: 2
Cable Pitch for 4/0 AWG Cable: Approx. 27.94mm/1.10in
Number of cables to comply with ratings: Two cables or clamp
Cable size to meet ratings: 4/0 AWG (120 mm²)
Mounting Holes: Suitable for 1/4" screws (M6)
Bolt material: tinned copper
Connection bolt size: 1/2 inch (M12)

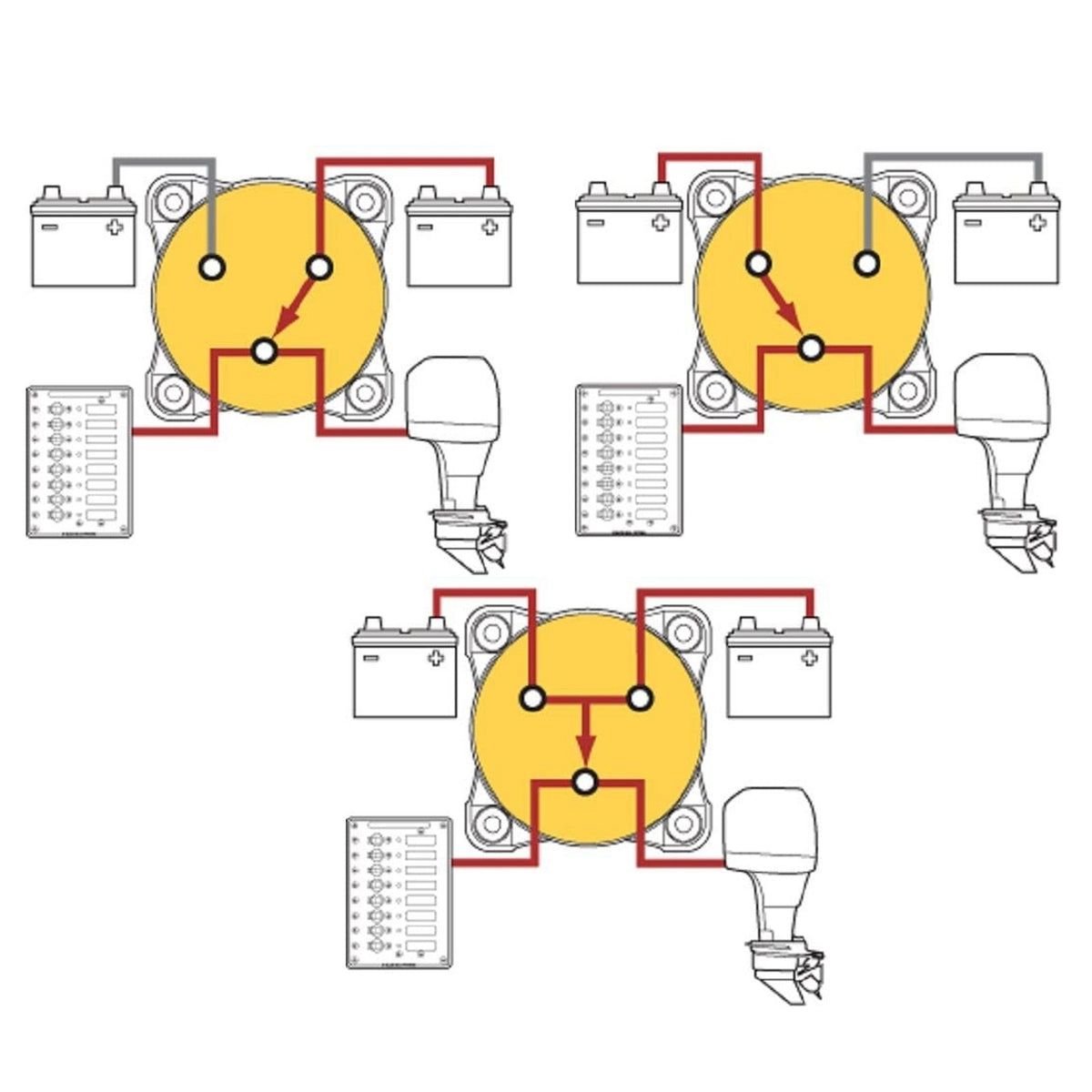

Function: Switches isolated battery banks to all loads or combines battery banks to all loads, the “close before open” contact design allows switching between battery banks without interrupting power.

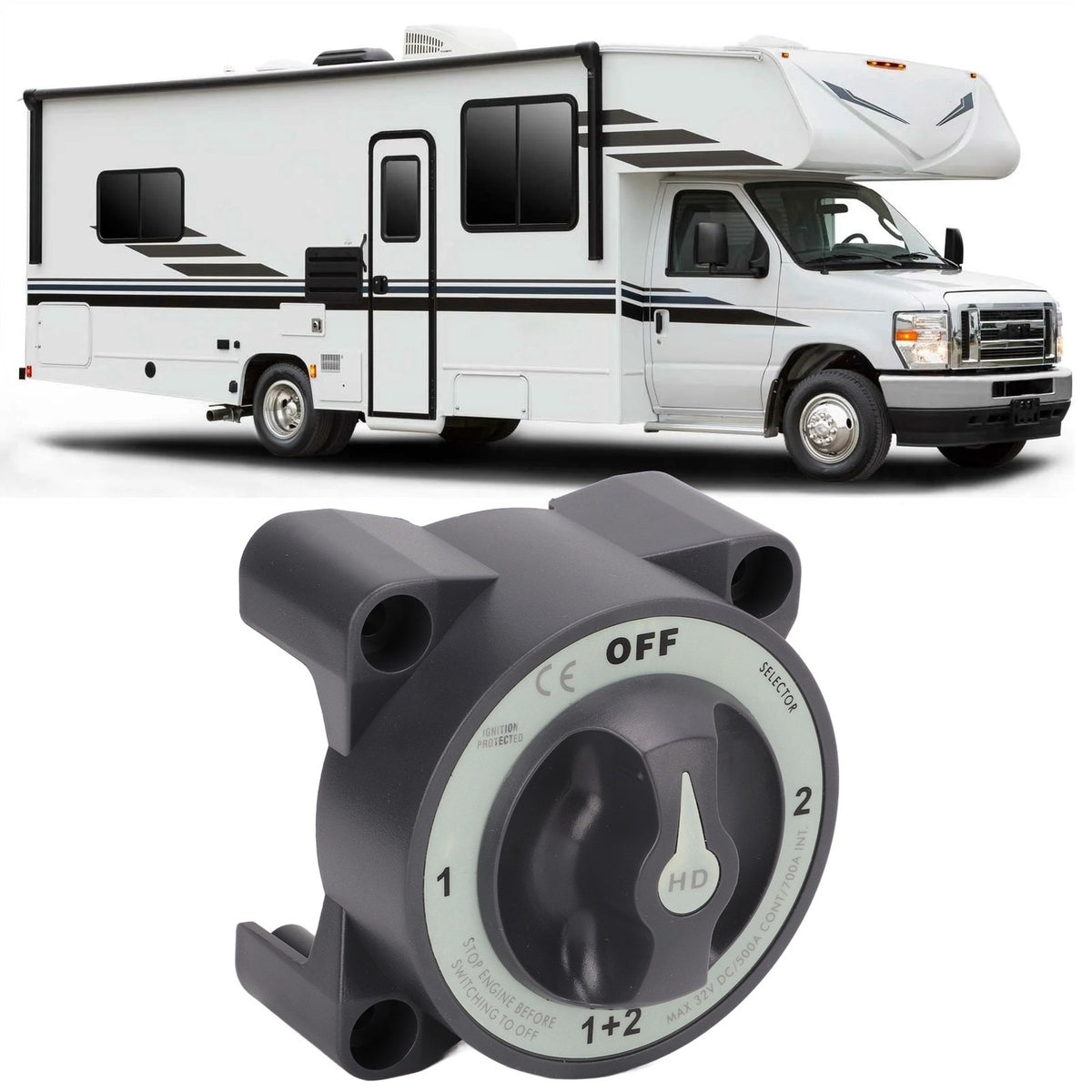

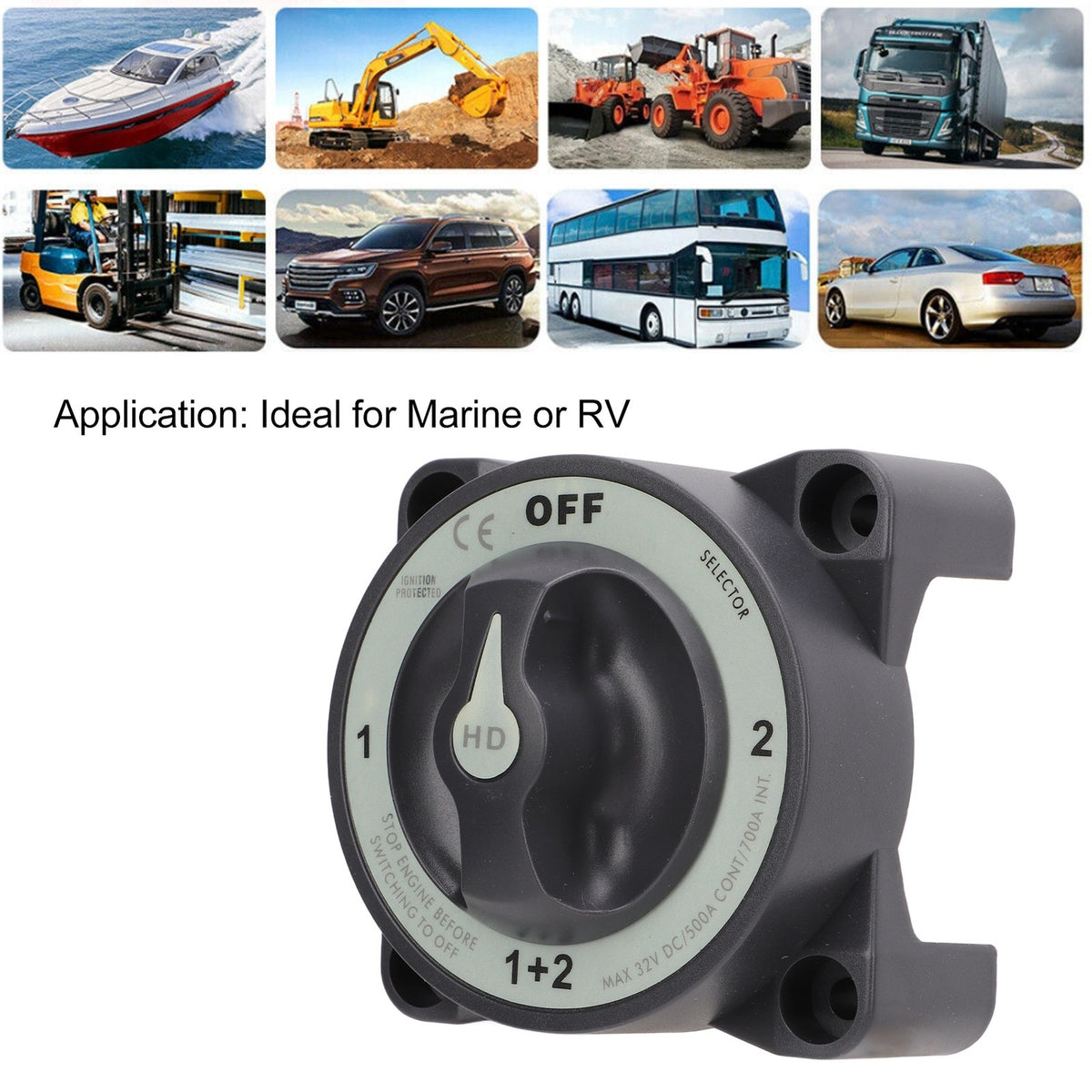

Application: Ideal for marine or RV
Package list:
1x battery disconnect switch
4 x Adjusting Screw
