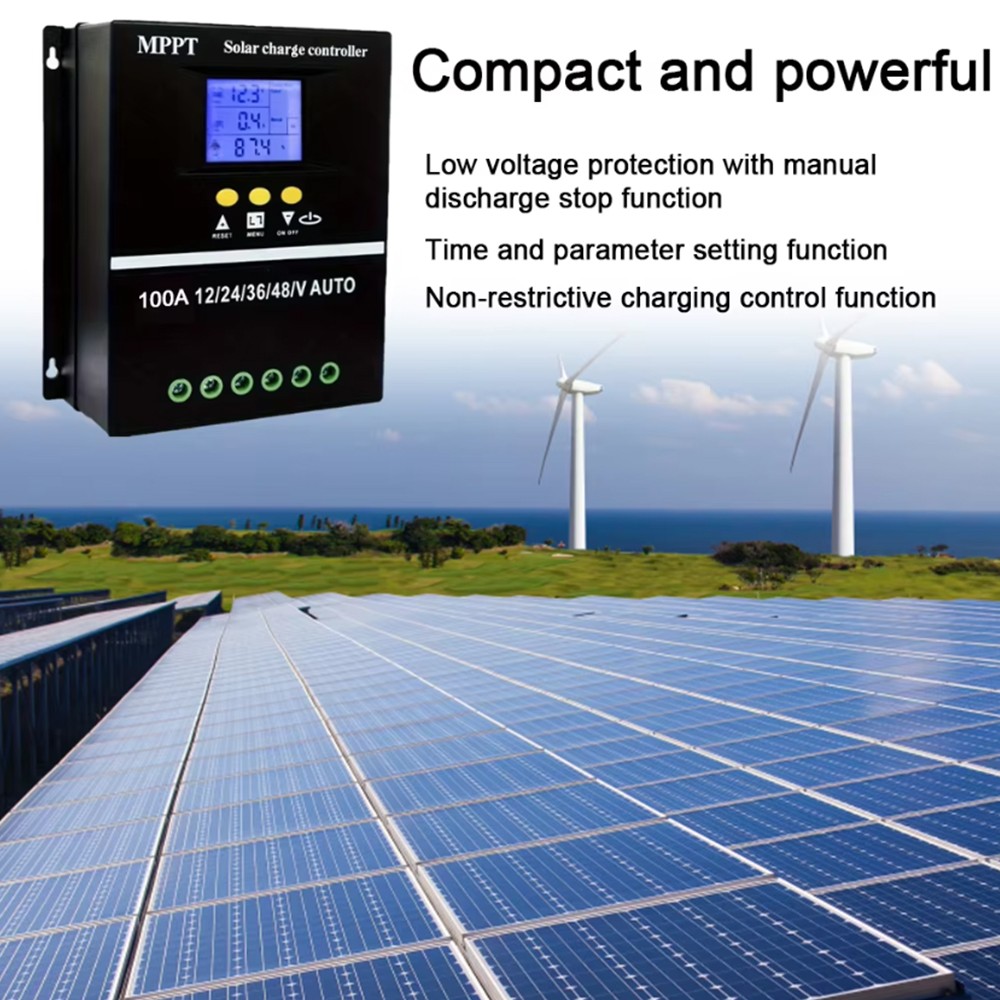

Product Description

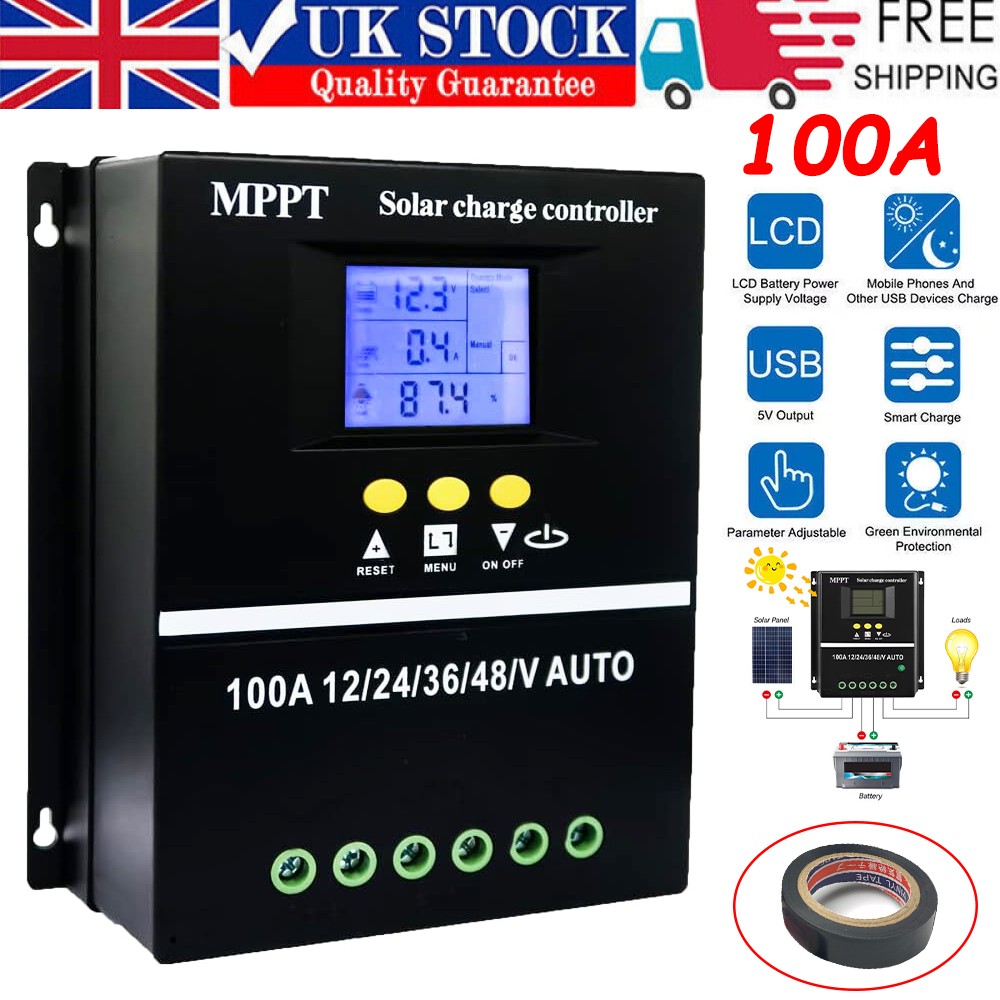

Feature:

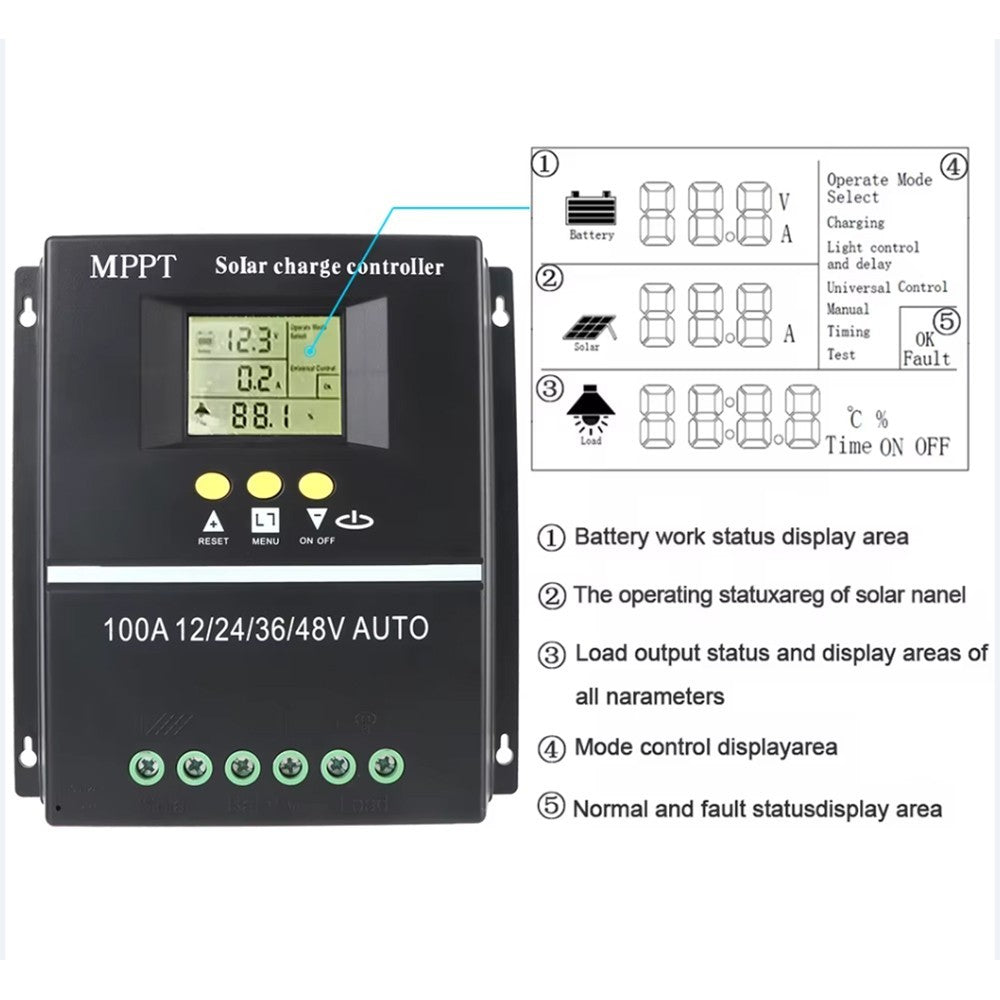

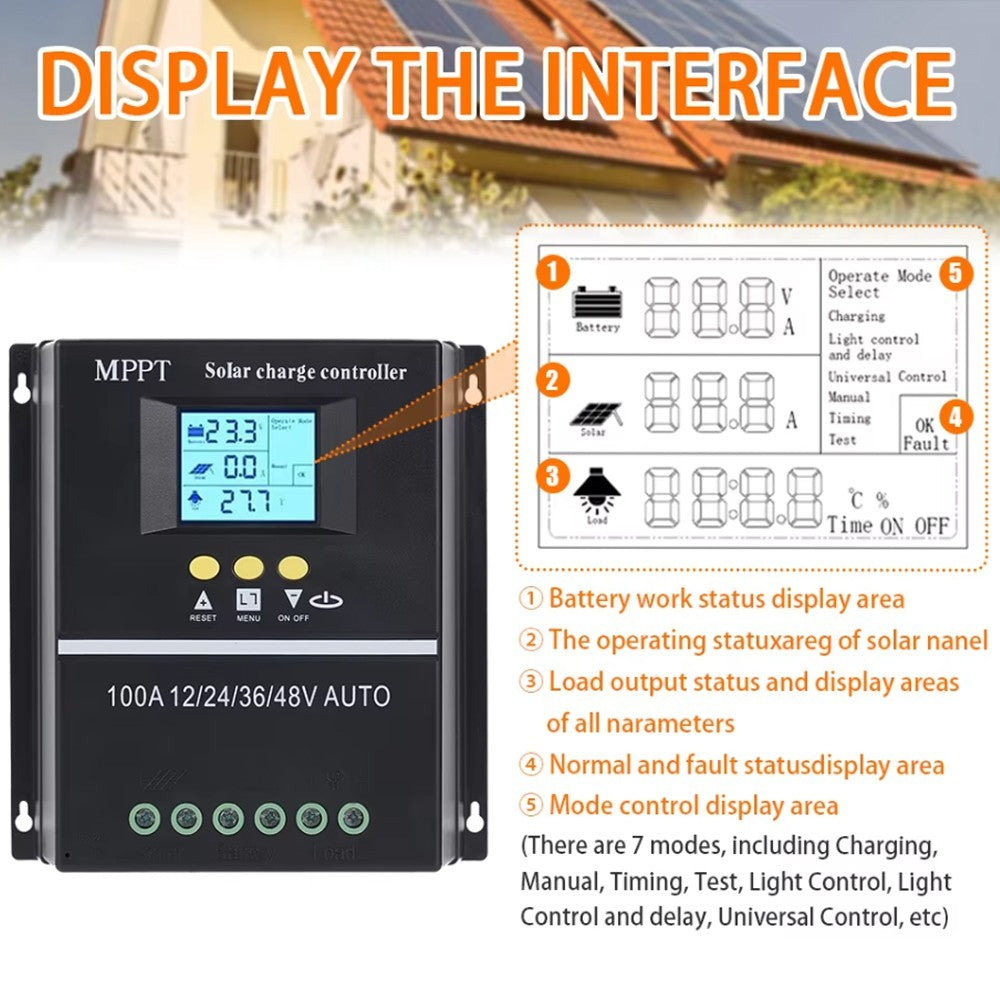

LCD
Liquid Crystal Display: Large LCD display, support battery working
status display, solar panel working status display, mode control
display, load output status and each parameter display, normal and fault
status display.
7
Operation Modes：Charging mode, light control mode, light control + time
delay control mode, general control mode, manual control mode, timing
control mode and test mode, the test mode is only for factory test use.
4 kinds of voltages automatic identification：It will automatic identify DC12V/24V, DC36V, DC48V by itself.

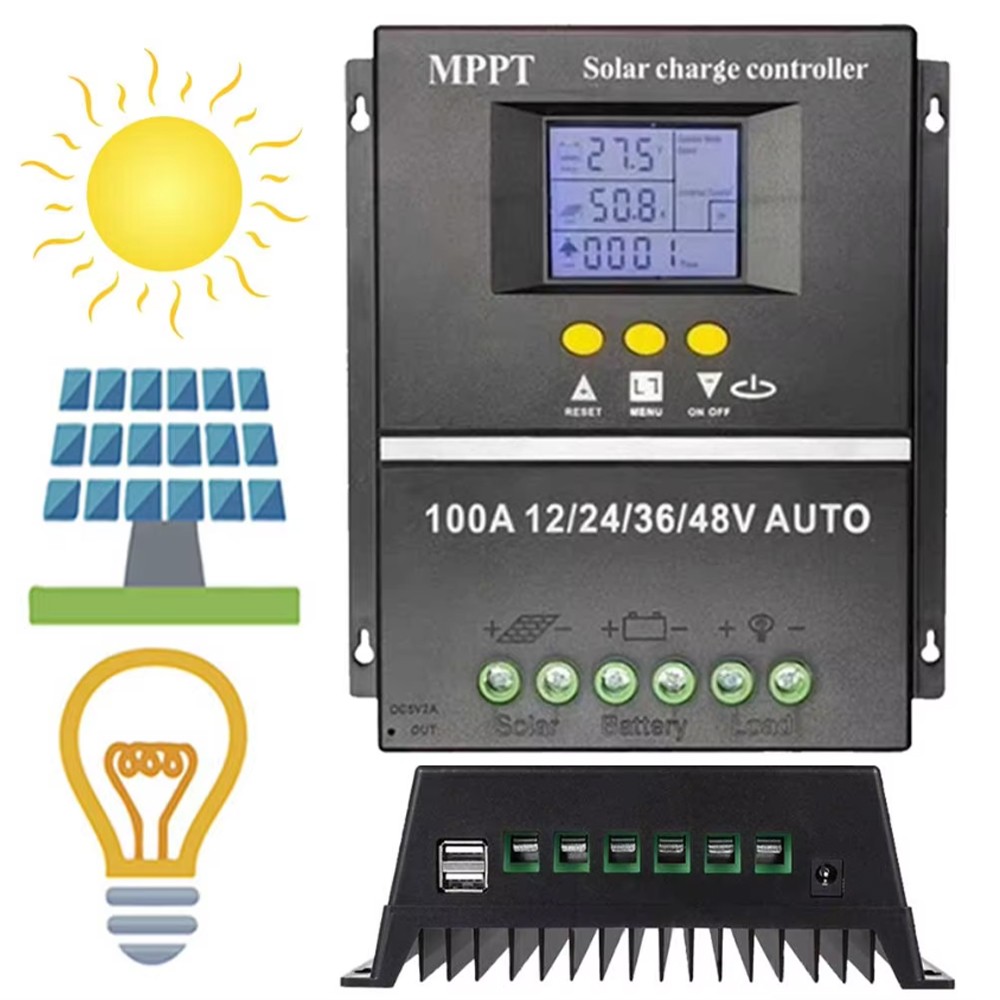

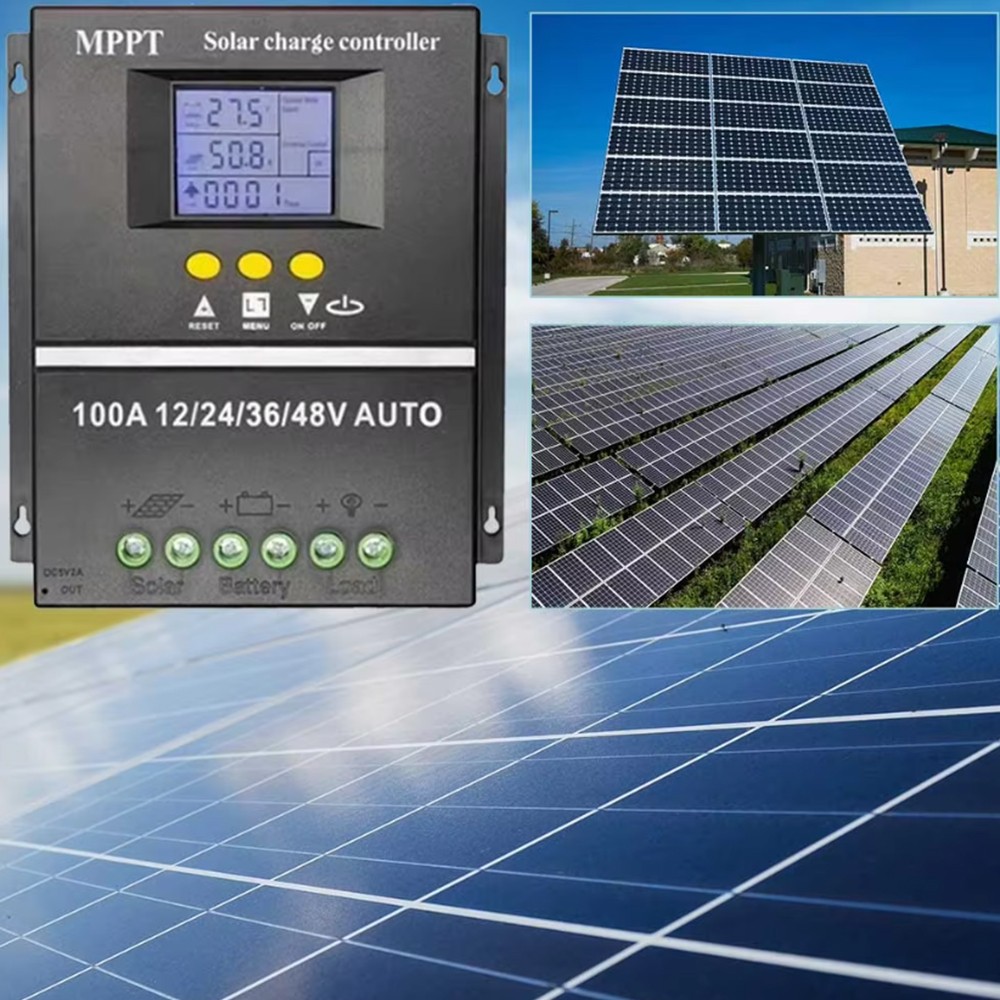

Large-section
Wiring Port: use large-section, large-spacing wiring ports, can be
installed 16mm wire, the wire spacing of 7mm increases the insulation
performance and the reliability of installation, effectively reduces
current and voltage drop while reducing losses.
Dual
USB Charging Ports: The solar charge controller adopts a dual USB
charging port design, which can charge two devices at the same time, and
supports most of USB port devices, such as mobile phones, tablets, PSP
game consoles, etc.

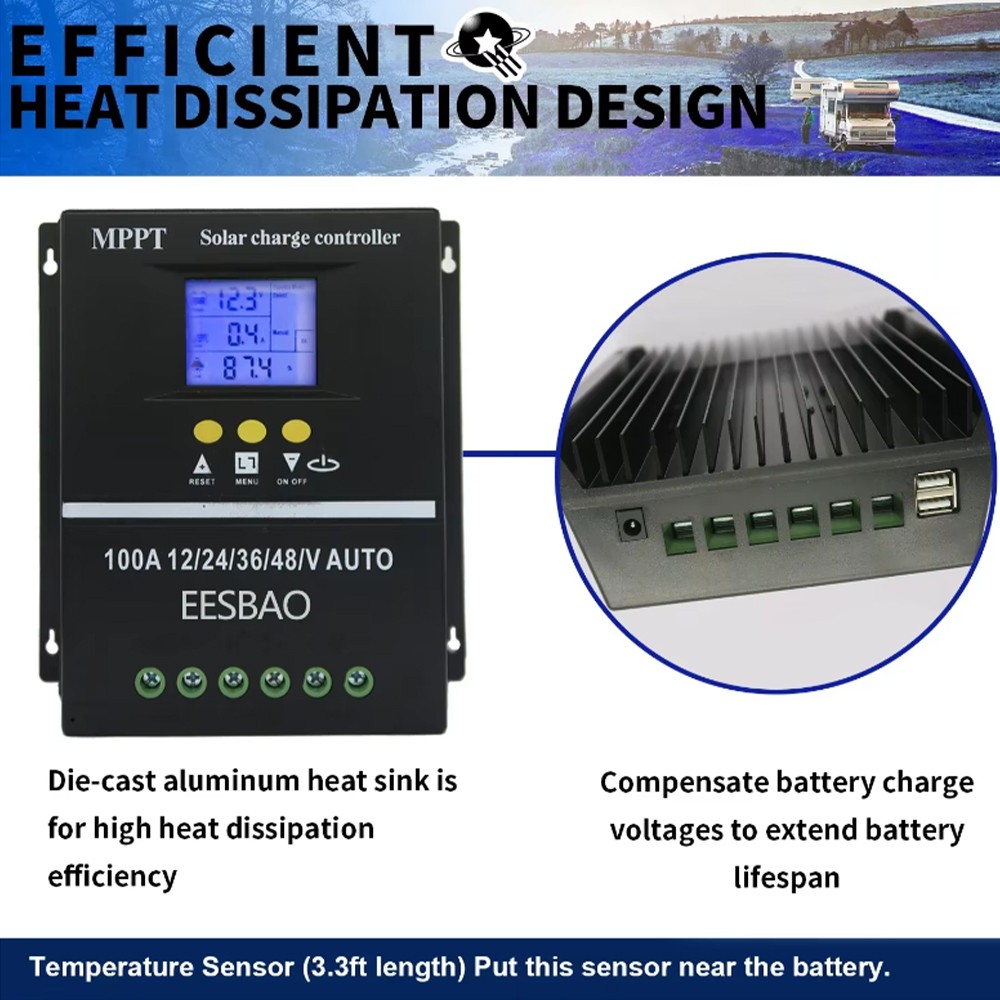

Thickened
Aluminum Alloy Heat Sink: The MOS tube is used to lock the heat sink
design, the heat dissipation is more uniform, and there is no fear of
the temperature rise caused by the MOS tube, the powerful heat
dissipation capacity can operate normally in the environment of 55 ℃, at
the same time, it is equipped with functions to prevent overcharge,
overvoltage, DC output low voltage, high voltage protective and reverse
polarity protective, etc.
Clock setting instructions:
When the battery is connected, press "▲" "▼" to set the clock table, short press "■" to save.
Charging voltage setting instructions:
After
connecting the battery, after setting the clock and saving, long press
"▲" for 3-5 seconds, the screen displays L**V as the floating charge
voltage, which can be adjusted by pressing "▼"; short press again
"▲"H**V is to increase the charging voltage, which can be adjusted by
pressing "▼"; shortly press "▲" again. F**V is the low-voltage cut-off
voltage of the DC load, which can be adjusted by pressing "▼"; after
setting Long press "▲" for 3-5 seconds to save and exit.

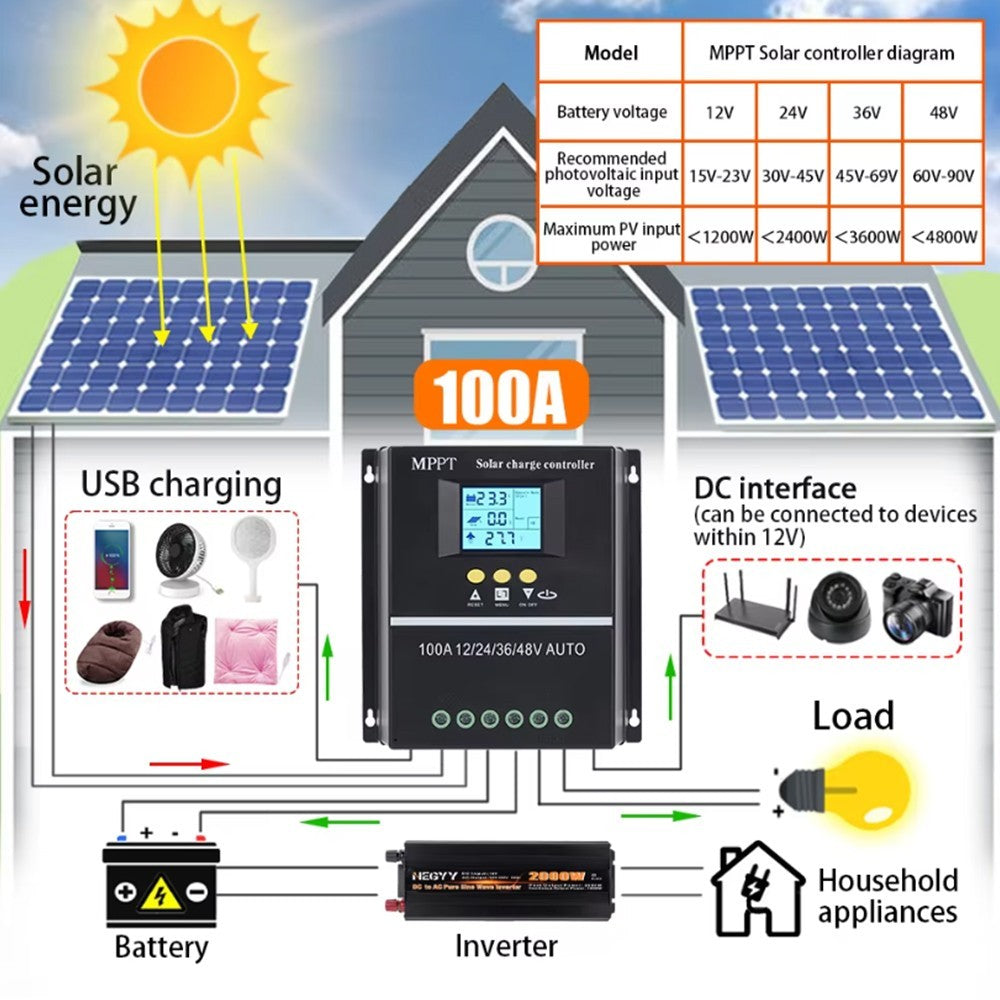

Specification:
Type: Solar Charge Controller
Maximum charging current: 100A
Maximum input voltage of photovoltaic panels: 15V-23V(12V), 30V-45V(24V), 45V-69V(36V), 60V-90V(48V)
Maximum input power of photovoltaic panels: 1000W (12V), 2000W (24V), 3000W (36V), 4000W (48V)
Output voltage: DC12V/24V/36V/48V; DC5V/1.5Ax2USB
Support Battery: Lithium Battery & Lead Acid Battery
Working temperature: -25℃~55℃
Cooling method: heat sink self-cooling
Charging method: Focused MPPT modulation charging
Working
mode: seven: Charging mode, Light control mode, General control
mode, Manual control mode, Timing control mode, Test mode, Light
control+delay control mode

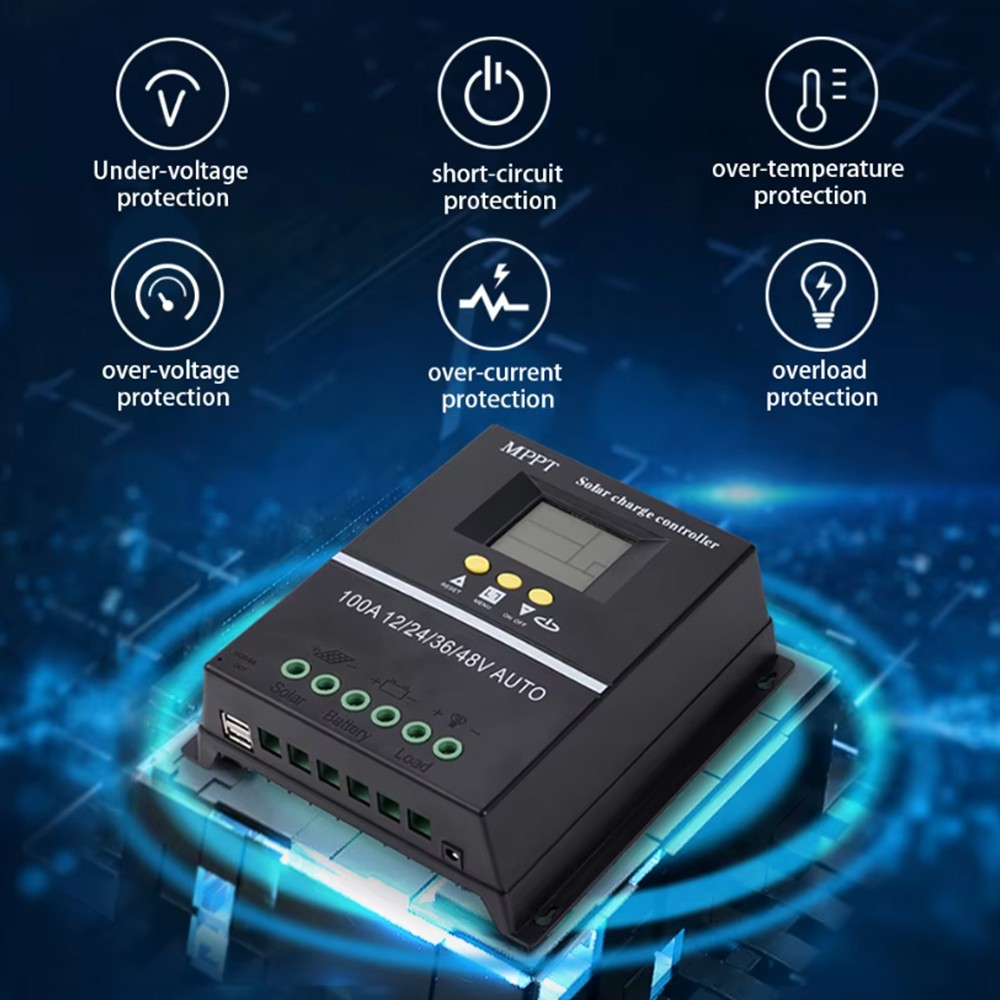

Protective
function: prevent overcharge, overvoltage/DC output low voltage, high
voltage protective, reverse polarity protective, etc.

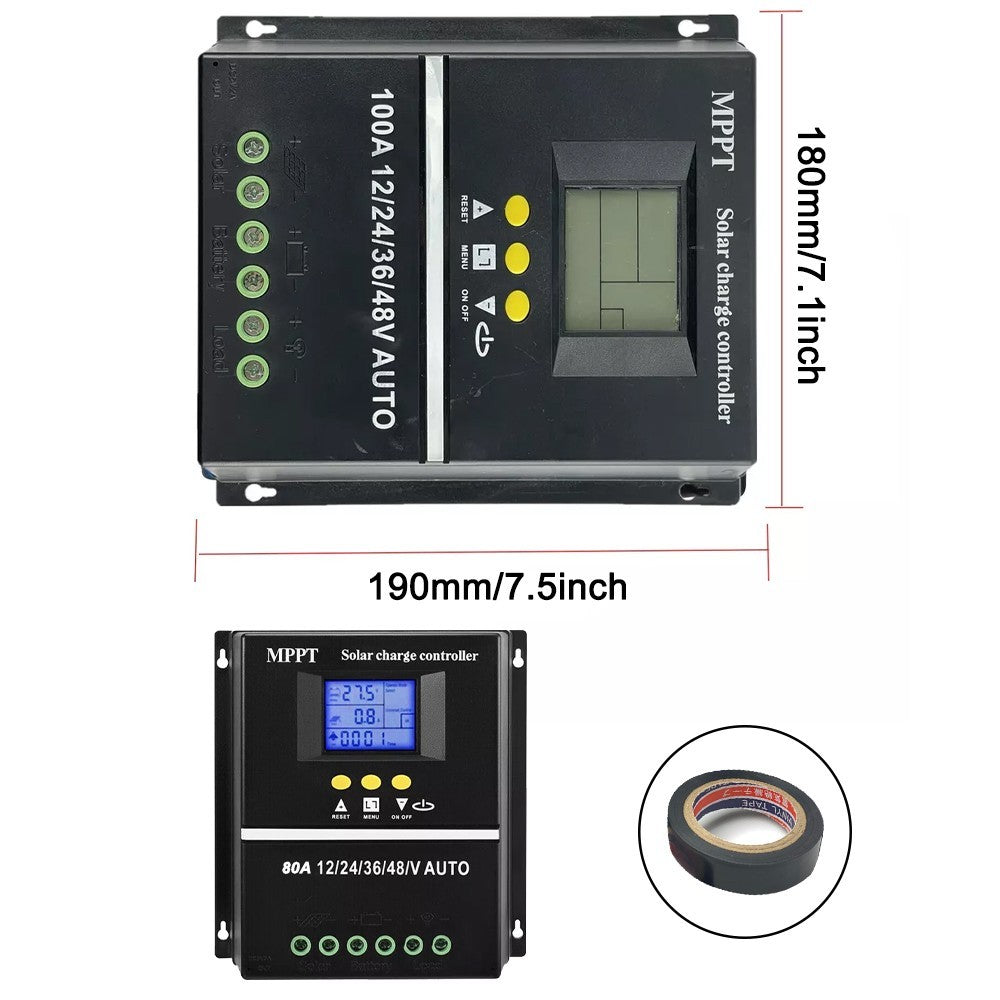

Package list:
1 × Solar Charge Controller
1 × Manual
1 × Tape
Note:
1.Please
connect the battery to the controller first, and then the photovoltaic
panel to ensure that the battery voltage is higher than (12V battery is
higher than 10V; 24V battery is higher than 20V; 36V battery is higher
than 30V; 48V battery is higher than 40V), otherwise it will cause
voltage Identification error.
2. It is high quality compatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT
3. Display of battery voltage and discharge current, switching display after 5 seconds
