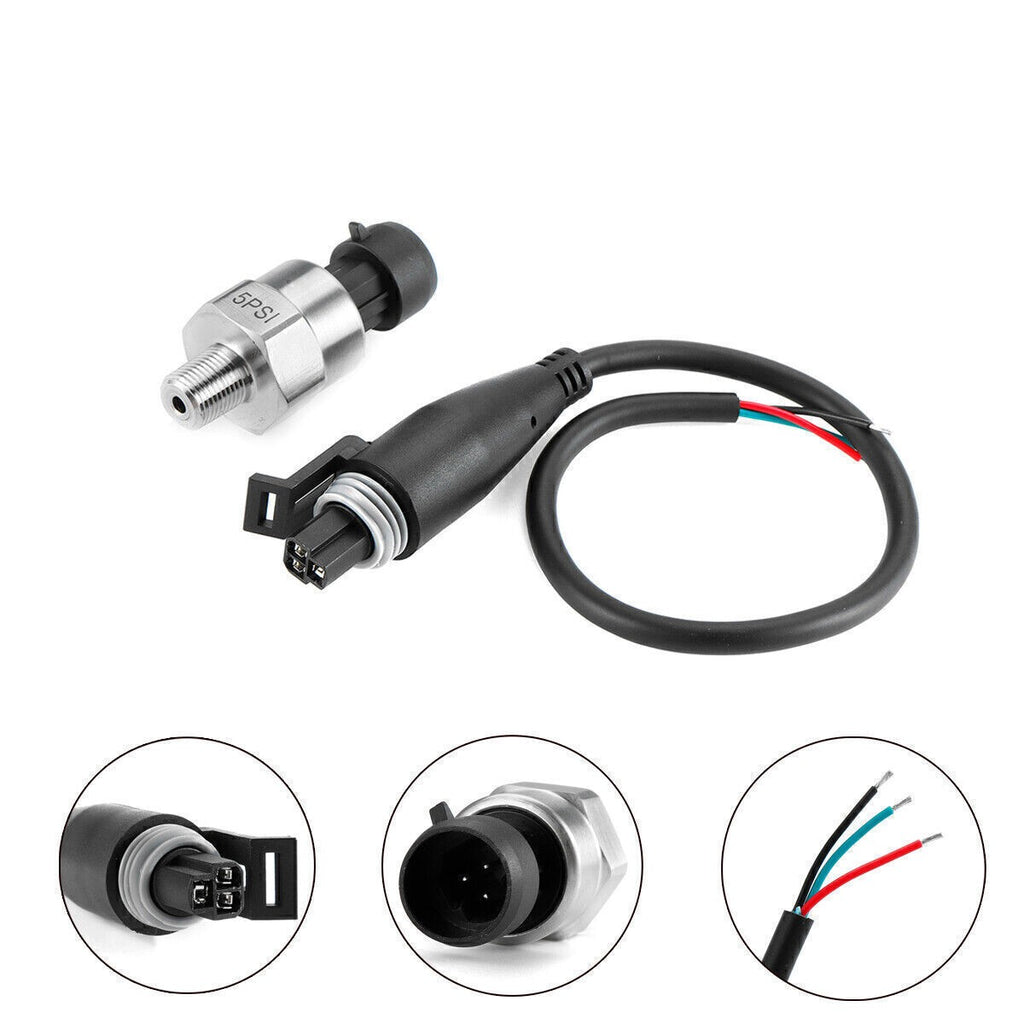

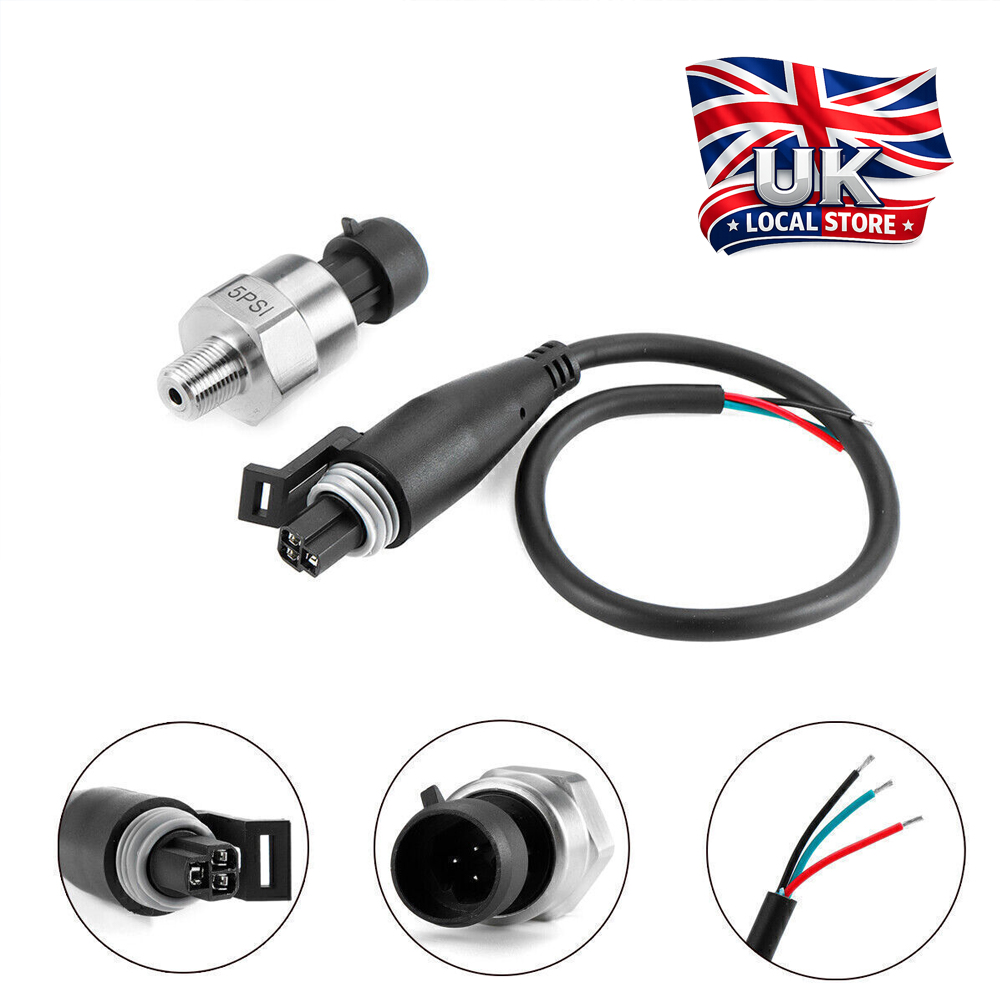

5V 1/8NPT Stainless Steel Fuel Pressure Sender Sender for Oil Air Water 5/15/30/60/100/150/200/300/500/1000/1600 Psi
Specification:
Condition: Brand New!!
Model Number: B90097
Product Name: Oil Fuel Pressure Transducer
Material: Stainless Steel and Rubber
Color: Silver & Black
Voltage: DC 5V

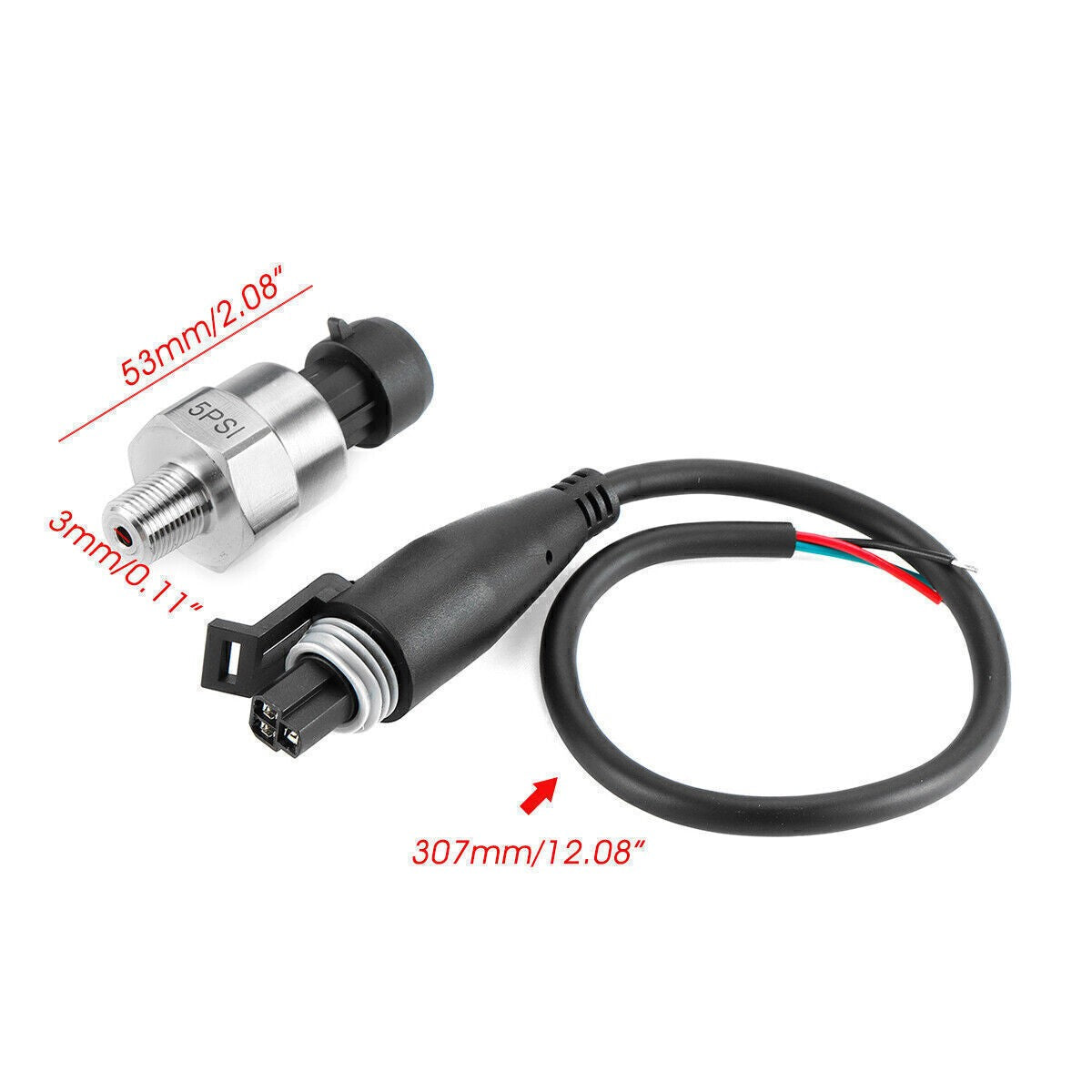

Length: 53mm
Thread: 1/8"-27 NPT / 1/8" NPT

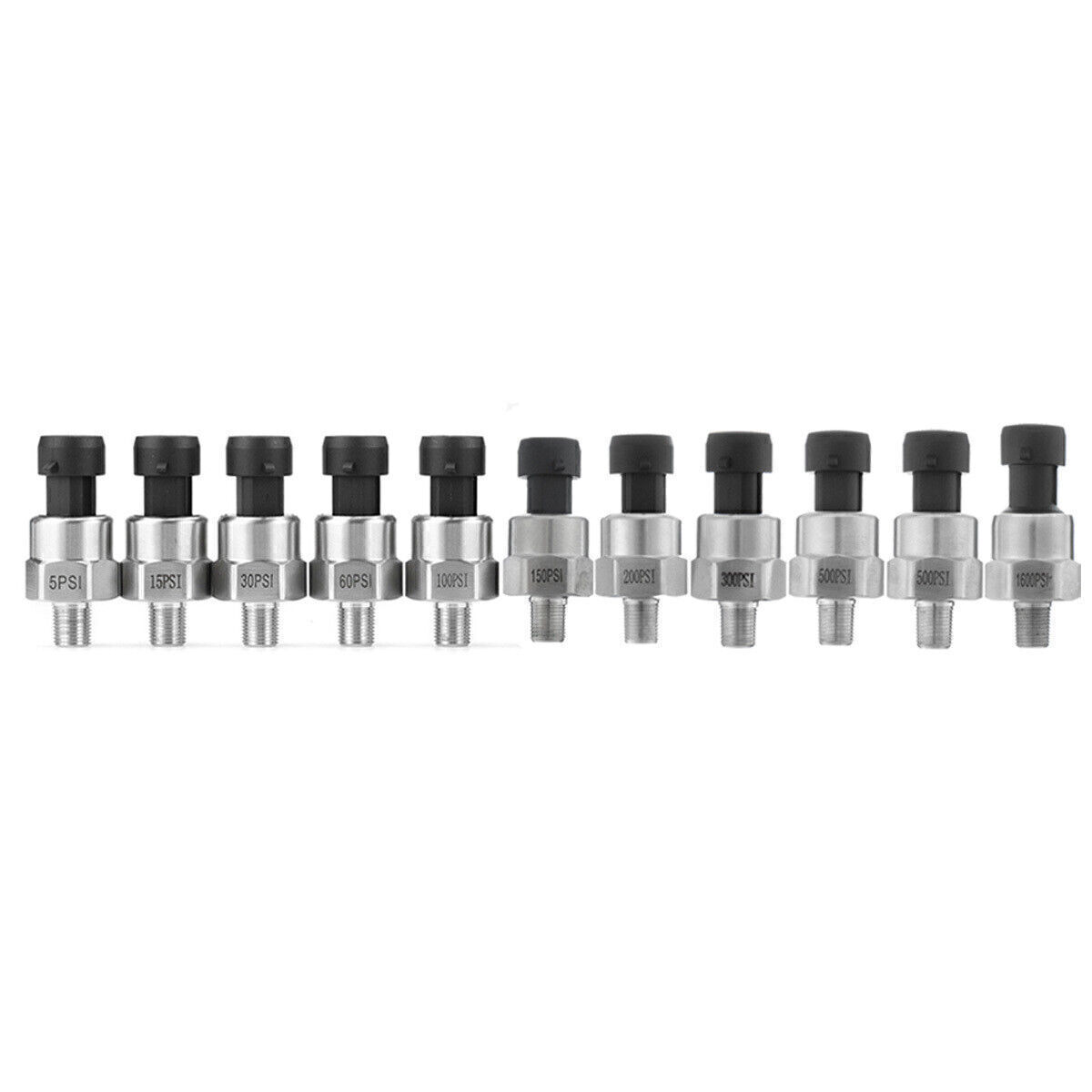

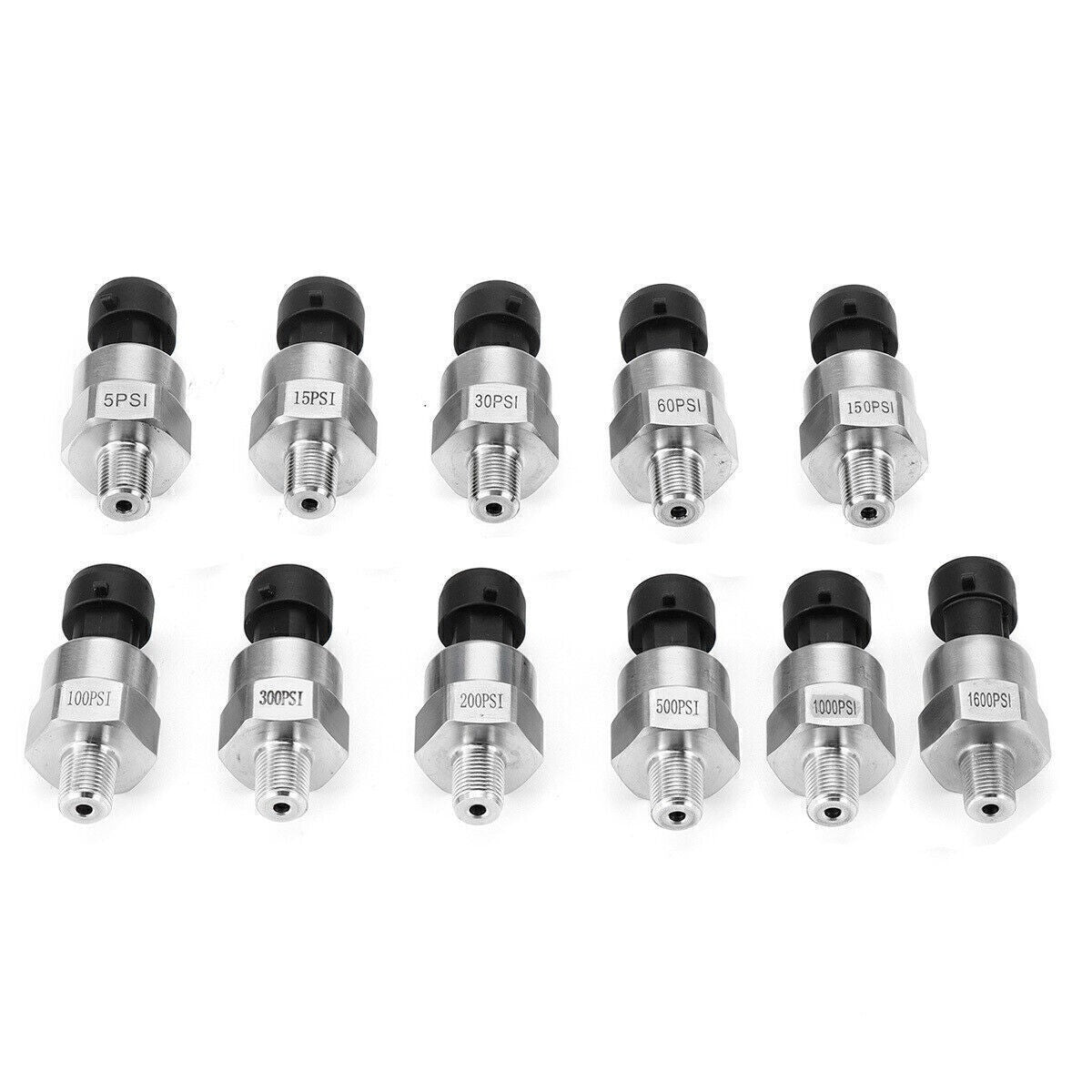

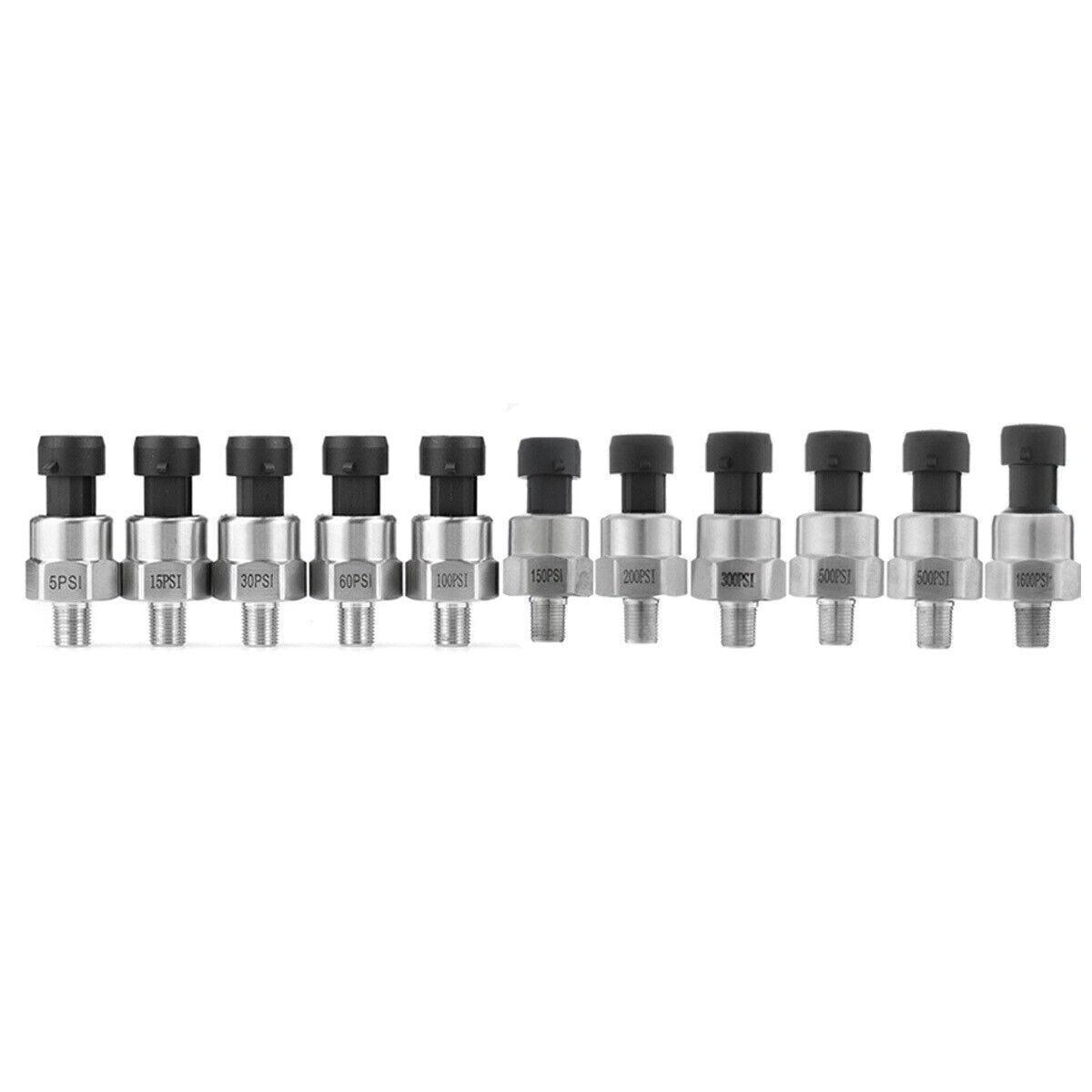

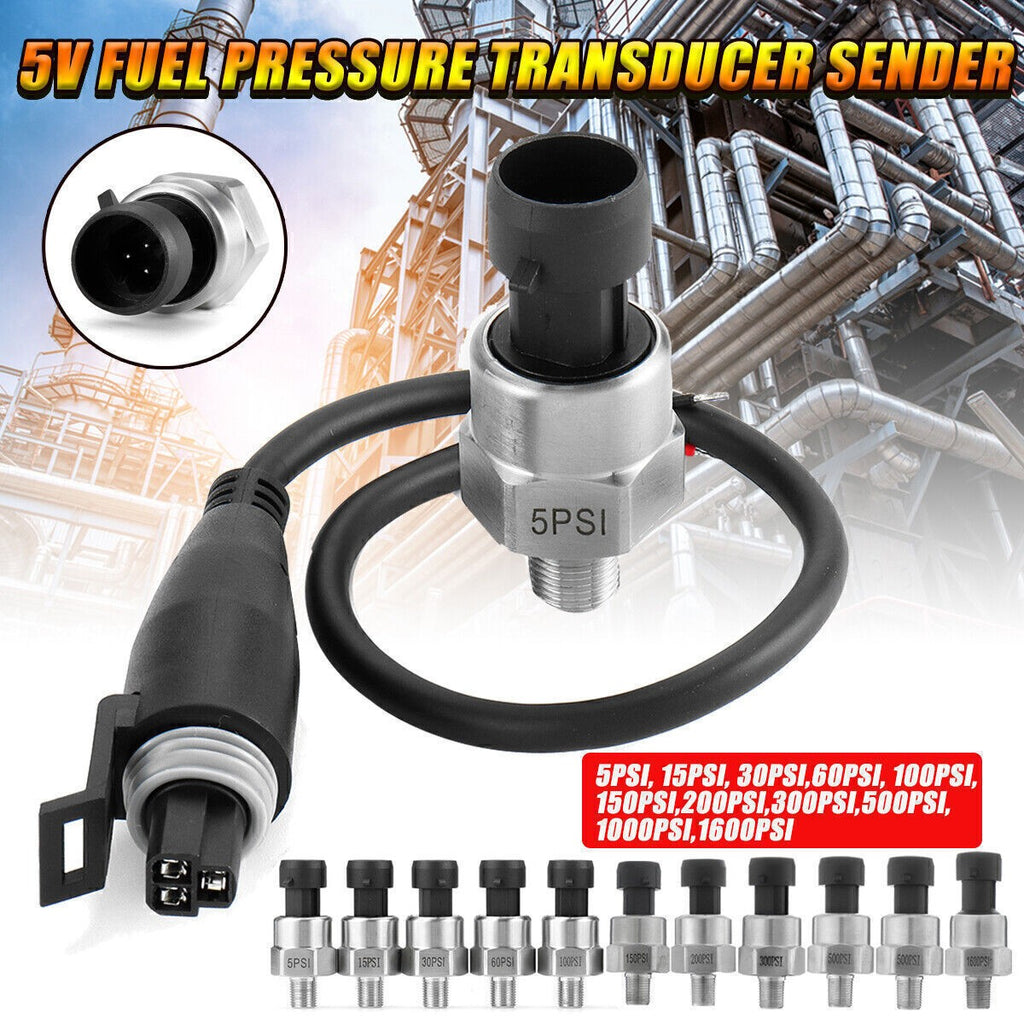

Pressure: 5psi, 15psi, 30psi, 60psi, 100psi, 150psi, 200psi, 300psi, 500psi, 1000psi, 1600psi
(Please tell us the pressure you want. You can leave the message on your Paypal message to tell us.)
Quantity: 1pc
15psi
Input: 0-15psi
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 7.5 psi outputs 2.5V, 15 psi outputs 4.5V.
Accuracy: +/-0.5% of full scale;
Thread: 1/8” NPT;

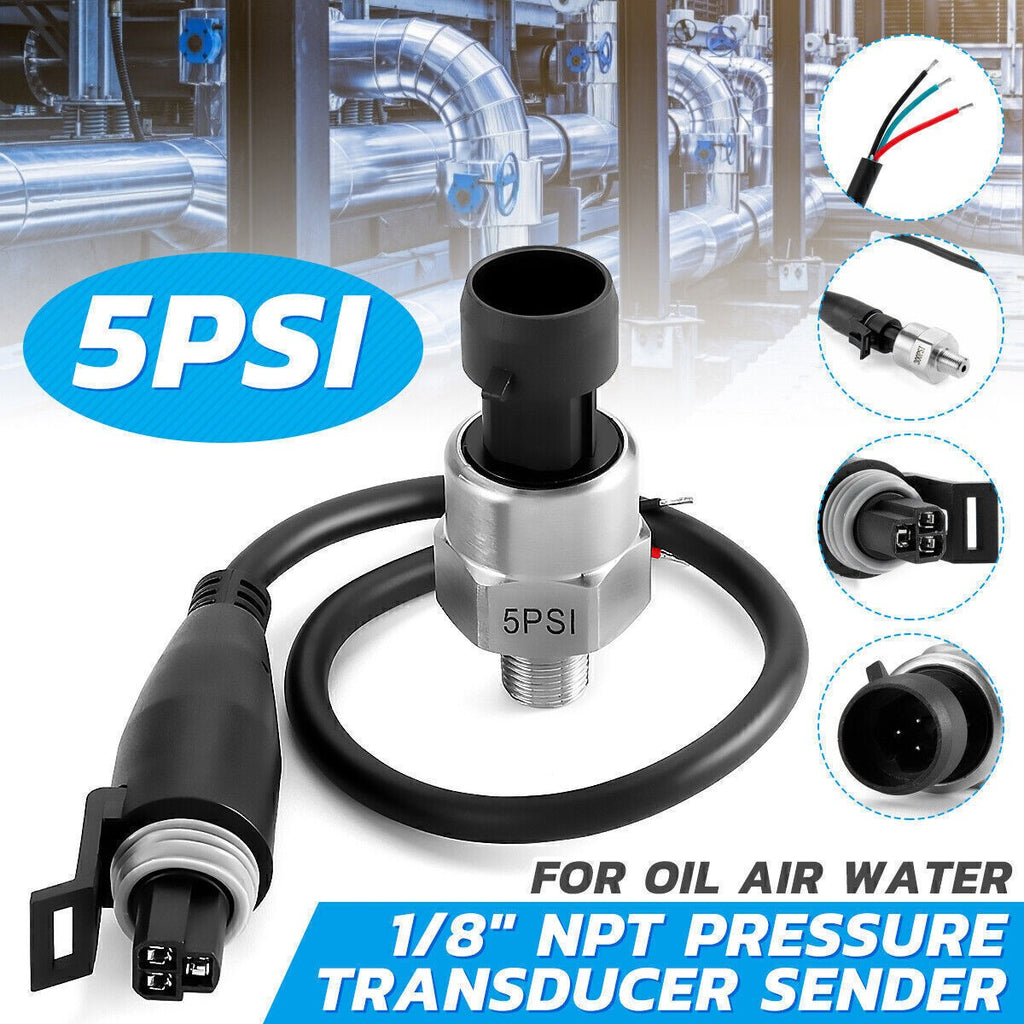

Wiring connector: Packard plug-in unit is included;
Wiring: Red: +5V; Black: Ground; Green: Signal output;
Overload capacity: 2-4 times;
Working temperature: -40—+120ºC;
Compensation temperature: -20—+80 ºC;
Protection class: IP67;
Pressure medium: The gas and liquid compatible with 316L stainless steel;
Load resistance: ≤ (supply voltage – 6.5V/0.02A) Ω;
Long term stability: Less than 0.1% FS/year;
Temperature influence on zero point: Typical: 0.02% FS/°C; Maximum: 0.05% FS/°C;
Temperature influence on sensitivity: Typical: 0.02% FS/ºC; Maximum: 0.05% FS/°C;
Shock resistance: 1000g;
Anti-shock: ≤ +/- 0.01% FS (X, Y, Z axes, 200 Hz/g);
Response time: ≤1ms;
Insulation resistance: >100 mΩ 500 VDC;
Explosion protection class: ExiaTTCT6;
Electromagnetic compatibility: EN50051-1.
30psi
Input: 0-30 psi.
Output: 0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 15 psi outputs 2.5V, 30 psi outputs 4.5V.
Accuracy: within 2% of reading (full scale).
Thread: 1/8”-27 NPT.
Wire connector: waterproof quick disconnect. Mating connector is included.
Wiring: Red for +5V. Black for ground. Blue for signal output.

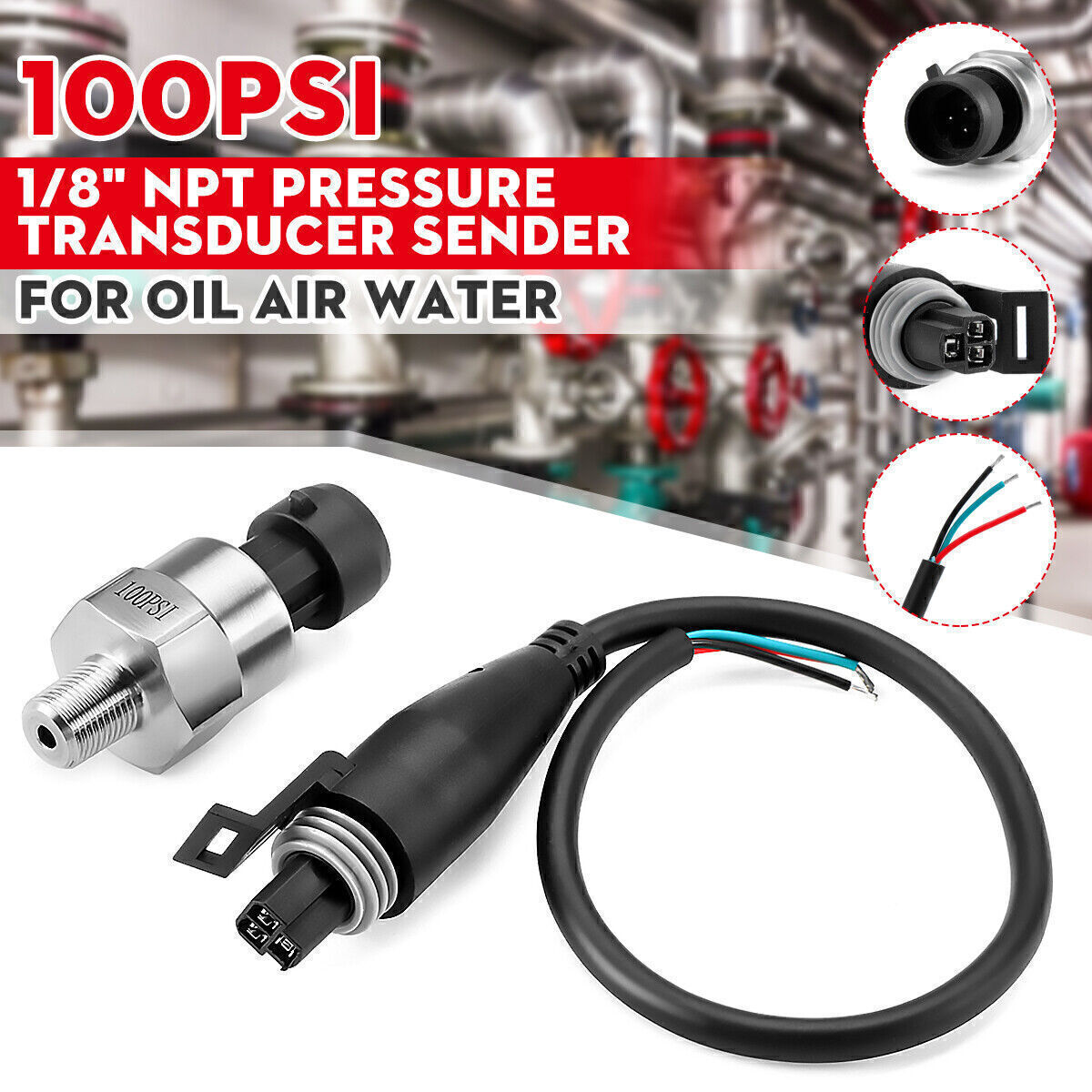

100psi
Input: 0-100 psi.
Output: 0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100 psi outputs 4.5V.
Accuracy: within 2% of reading (full scale).
Thread: 1/8”-27 NPT.
Wire connector: waterproof quick disconnect. Mating connector and wiring harness (pigtail) are included.
Wiring: Red for +5V. Black for ground. Blue for signal output.
200psi
Pressure range: 0-200 psi
Output: 0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 100 psi outputs 2.5V, 200 psi outputs 4.5V
Working temperature: -40—+125ºC;.
Accuracy: ±1% F.S.;
Thread: 1/8”-27 NPT.
Overload capacity: 2 times;
Pressure medium: The gas and liquid compatible with 316L stainless steel;
Load resistance: ≤ (supply voltage - 6.5V/0.02A) Ω;
Long term stability: ± 0.2% FS/year;
Temperature influence on zero point: Typical: ±0.02% FS/ºC; Maximum: ±0.05% FS/°C;
Temperature influence on sensitivity: Typical: ±0.02% FS/ºC; Maximum: ±0.05% FS/°C;
Shock resistance: 100 g;
Anti-shock: ≤ ± 0.01% FS (X, Y, Z axes, 200 Hz/g);
Response time: ≤1ms;
Insulation resistance: >100 mΩ 500 VDC;
Explosion protection class: ExiaTTCT6;
Electromagnetic compatibility: EN50081-1; EN50082-2; IEC6 1000-4-3 ;
Wiring: Red for IN+. Black for GND. Green for OFF.

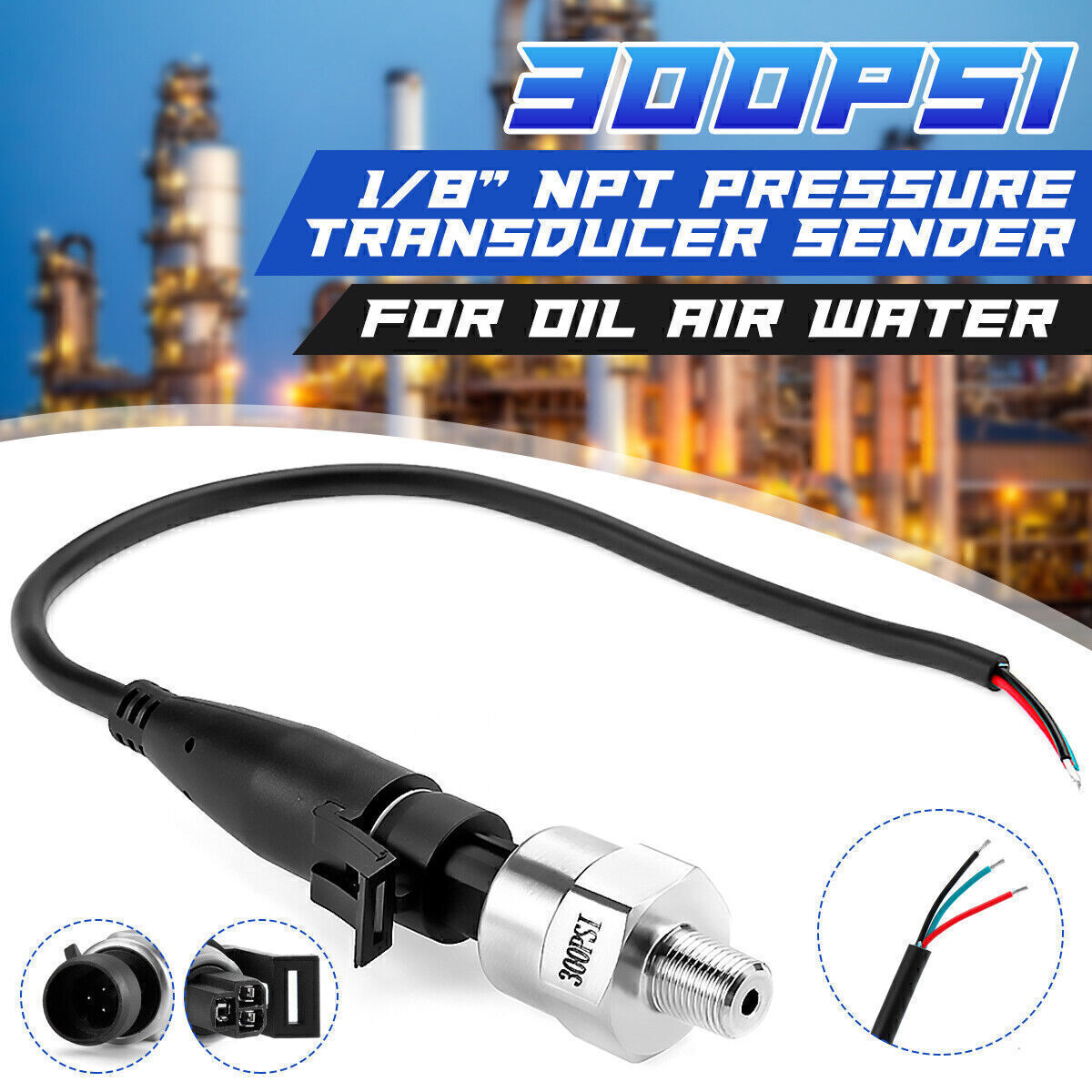

300 psi
Input: 0-300 psi (gauge pressure);
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 150 psi outputs 2.5V, 300 psi outputs 4.5V.
Accuracy: +/-0.5% of full scale;
Thread: 1/8” NPT;
Wiring connection: Packard plug-in unit is included;
Wiring: Red: +5V; Black: Ground; Green: Signal output;
Overload capacity: 2-4 times;
Working temperature: -40—+120ºC;
Compensation temperature: -20—+80 ºC;
Protection class: IP67;
Pressure medium: The gas and liquid compatible with 316L stainless steel;
Load resistance: ≤ (supply voltage – 6.5 V/0.02 A) Ω;
Long term stability: Less than 0.1 % FS/year;
Temperature influence on zero point: Typical: 0.02 % FS/°C; Maximum: 0.05 % FS/°C;
Temperature influence on sensitivity: Typical: 0.02 % FS/ºC; Maximum: 0.05 % FS/°C;
Shock resistance: 1000 g;
Anti-shock: ≤ +/- 0.01 % FS (X, Y, Z axes, 200 Hz/g);
Response time: ≤1ms;
Insulation resistance: >100 mΩ 500 VDC;
Explosion protection class: ExiaTTCT6;
Electromagnetic compatibility: EN50051-1.

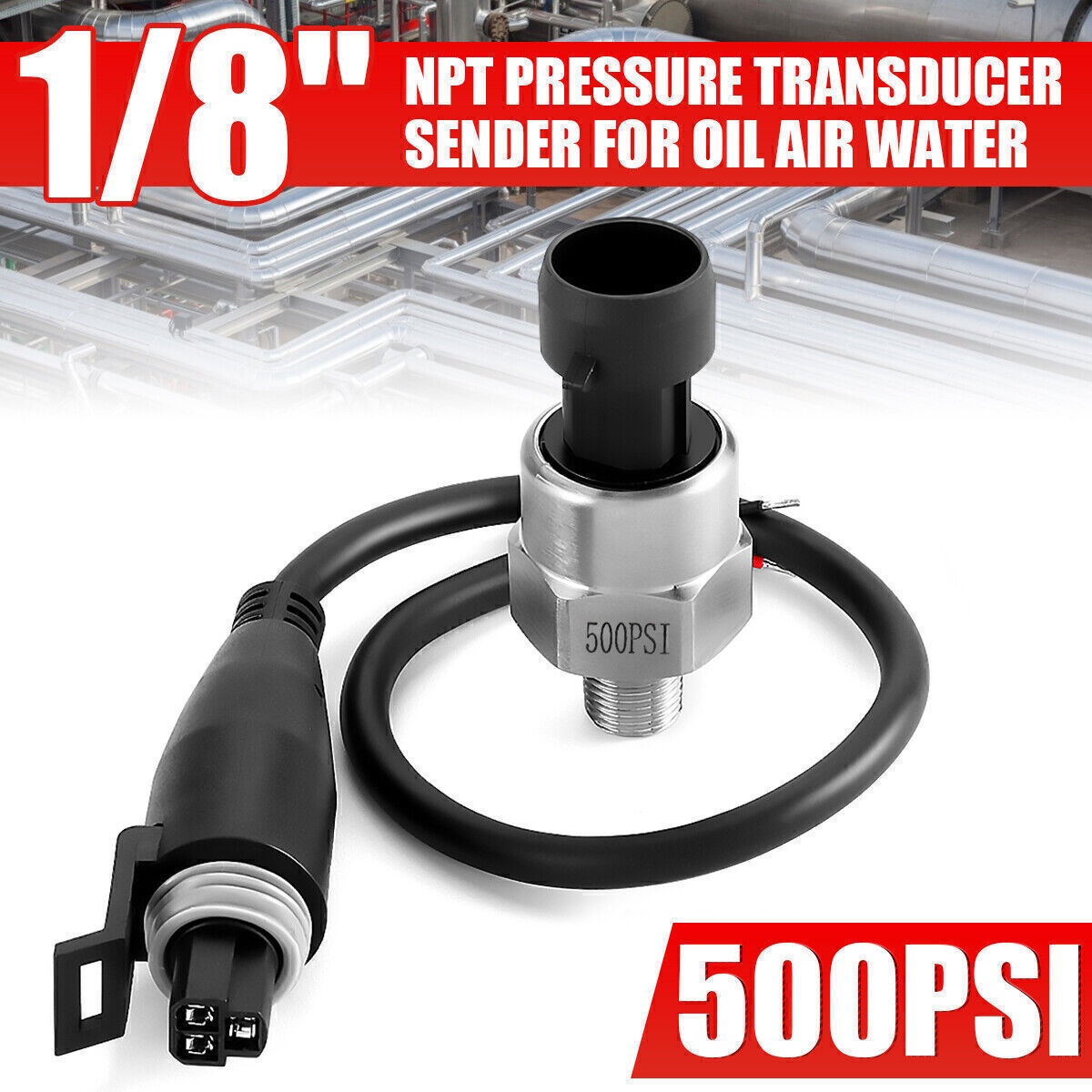

500psi
Input: 0-500 psi (gauge pressure);
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 250 psi outputs 2.5V, 500 psi outputs 4.5V.
1000psi
Input: 0-1000 psi.
Output: 0.5V-4.5V linear voltage output
1600 psi
Input: 0-1600 psi (gauge pressure);
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 80
Fitment:

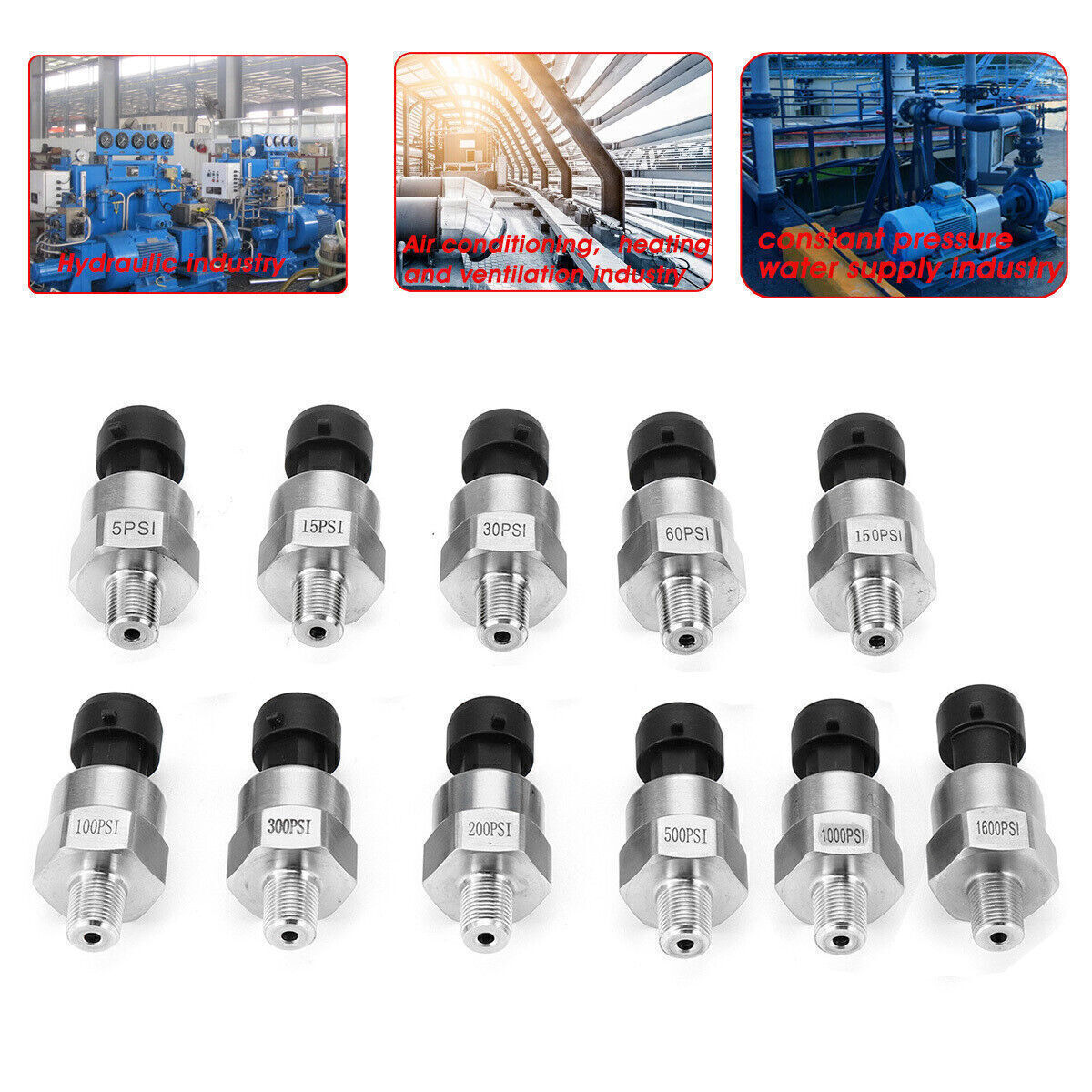

For oil, petrol, diesel, gas, water, air pressure
Can be used in oil tanks, gas tanks, diesel tanks, etc.
Features:
-It is a pre-pressure transmitter than traditional mechanical pressure transmitter;
-CMC for load cell sensor;
-CM
